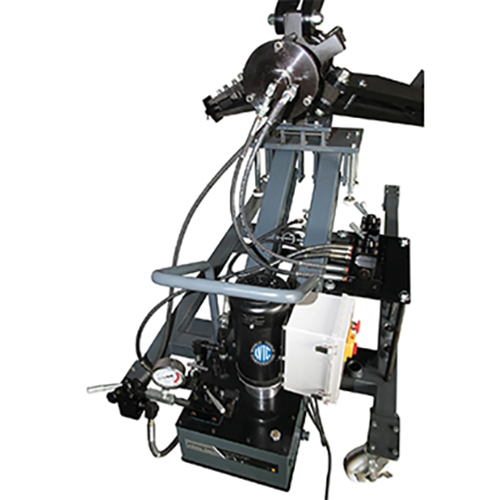

WTC-KWE150T 150 Ton Easy Pullers

WTC-KWE150T 150 Ton Easy Pullers
Efficient and safe solution to dismount all kinds of transmission parts.

Features
- Double acting hydraulic system for holding, opening & closing jaws for safe & secure grip on work object.
- Self-centering design keeps puller jaws clamp work object evenly and automatically.
- Electrical hydraulic pump advances and retracts the pushing cylinder only to prevent operating errors from happening.
- The easy jaw head adjusting system prevents puller jaws from sliding and spring off the work object being pulled.
- Puller can be converted into 2 or 3-way configurations.
- Puller can be adjusted with 5 degree up/down of puller centerline for precisely positioning.
- The cart swivel castors provide movement of car easily.
- Electrical hydraulic pump is two stage version: the low pressure stage provides the fast stroking to save time; the high pressure stage is controlled by remote switch.
- 100 Ton cylinder is 2-stage, spring return type with a maximum working pressure of 10, 000 psi.
- Five extension adapters are standard attachments for the needs on extra stroke.
- Integrated Control System for operating Lift and Push easily and efficiently by Electric Pump only. (Equipment on requesting )

Specification

Model No.	Reach (Max/mm)	Spread (Min-Max)	Stroke (mm)	Overall Dimension (mm)	Power Source (mm)	Weight (kg)
KWE150T	970 - 1175	300 - 1650	330	2990x1030x1390	---	1158
KWE150TE*	970 - 1175	300 - 1650	330	2990x1030x1390	KWEP420	1223

* This model is equipped with the Electric Pump - KWEP420 & Control Panel System.
