30 Ton Heavy Duty Scissor Lift Heshbon HL-300X

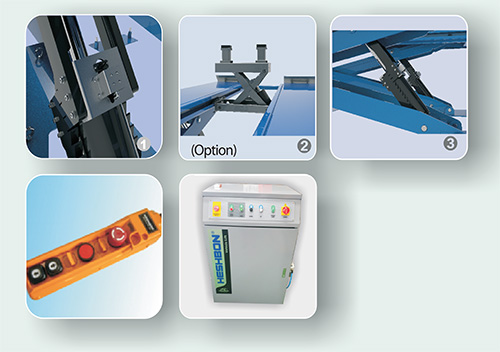

1. Features
- Accurate synchronization via master and slave hydraulic cylinders.
- Equipped with 4-level safety locks for enhanced operation safety.
- Proximity sensor prevents locking misalignment during lift/lower motion.
- Wired remote control improves user convenience.
- Safe operation thanks to robust scissor-lift structure.
- Top and bottom rollers protect internal mechanism and reduce friction.
- Optional center rolling jack available for heavy underbody service.
2. Specifications
- Model No.: HL-300X
- Brand: Heshbon
- Made in: Korea
- Lifting Capacity: 30,000 kg / 13,500 kg
- Max Lifting Height: Main lift: 1,750 mm / Jack: 500 mm

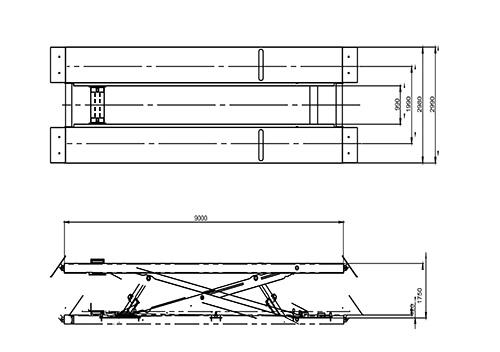

- Dimension: 9,000 (L) x 2,990 (W) x 420 (H) mm
- Power Supply & Motor: 3-phase, 15HP x 4P x 220V/380V, 50/60Hz
- Net Weight: 12,000 kg (Including control box)
- Lifting Time / Lowering Time: Main: 80–120 sec. / Jack: 20–40 sec.
- Lowering Time: Main: 70–110 sec. / Jack: 20–40 sec.
3. Practical Applications
- Suitable for truck, bus and trailer repair shops or service stations.
- Ideal for underbody inspection, brake replacement, axle maintenance.
- Can be installed above or in-ground depending on shop layout.
4. How to Use
- Connect power source and switch on control unit.
- Operate lift using control box or wired remote.
- Safety lock engages automatically at designated height.
- Use optional center jack if partial lifting is required.
- After operation, lower the lift completely and switch off power.
