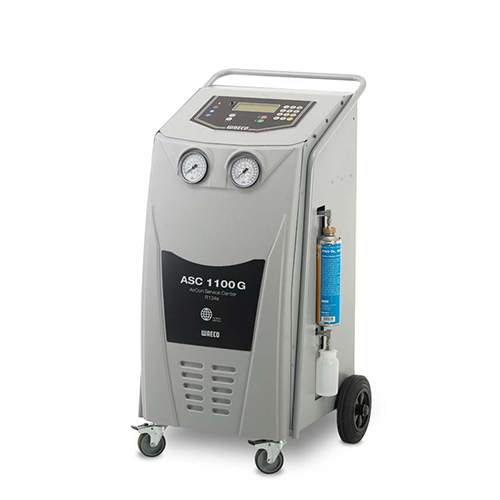

Air Conditioning Refrigerant Recovery and Recycling Machine Waeco ASC1100G

1. Key Features

• New-generation automatic A/C recovery, recycling, and recharging station.

• High refrigerant recovery rate up to 95% for optimal efficiency.

• High-precision electronic scale for accurate gas and oil measurement.

• Hermetic compressor 0.32 kW with low noise level (55.5 dB).

• Easy to operate, suitable for both large and medium car service centers.

2. Technical Specifications

• Brand: Waeco

• Origin: Germany

• Item number: 9103301884

• Dimensions (W × H × D): 600 × 1040 × 650 mm

• Weight: 90 kg

• Power supply: 220 V / 240 V – 50 Hz / 60 Hz

• Refrigerant extraction rate: 30 kg / hr

• Vacuum pump output: 5 cars / hr

• Refrigerant recovery ratio: 95%

• Compressor output: 0.32 kW

• Drier filter capacity: 150 kg

• Vacuum pump oil life: 60 h

• Cylinder capacity: 9 kg

• Noise level: 55.5 dB (A)

• Scale accuracy (refrigerant): ±10 g

• Scale accuracy (oil): ±1 g

• Operating temperature: +10 °C to +40 °C

• Storage temperature: −25 °C to +50 °C

3. Applications

• Ideal for garages, service workshops, and car A/C maintenance centers.

• Suitable for vehicles using R134a refrigerant.

• Supports vacuuming, gas recovery, and refilling operations.

• Increases efficiency and accuracy for A/C technicians.

4. How to Use

• Connect the machine to the car A/C system.

• Select operation mode: recovery, vacuum, or recharge.

• Monitor the electronic scale for accurate filling levels.

• The system automatically stops when target values are reached
