Battery Charger GEOSTAR CC-25

1. Key Features

• Spark-proof with protections for reverse polarity, short circuit, overheating, overcharging, and overcurrent.

• Designed for all 6V and 12V lead-acid batteries: WET, MF, CA, EFB, GEL, AGM.

• Independent mode selection for 6V / 12V / 24V with memory function.

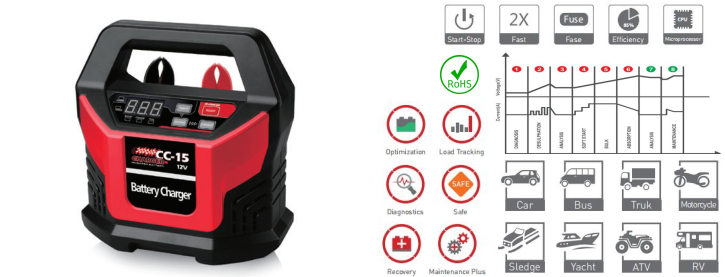

• Intelligent microprocessor with 8-step fully automatic charging cycle for faster and safer charging.

• Digital display with detailed error codes.

• Includes clamps, 1.85m AC cable, and 1.5m DC cable.

• IP20 housing protection.

• Alerts users of abnormal charging conditions.

2. Technical Specifications

• Input: 220–240V, 50–60Hz, 700W Max

• Output:

  • 12V: 5A / 10A / 15A / 25A

  • 24V: 3.5A / 7.5A

  • 12V Boost: 40A for 300s

• Battery Capacity:

  • 12V: 2–500Ah

  • 24V: 14–220Ah

• Compatible battery types: WET, MF, CA, EFB, GEL, AGM

3. Applications

• Suitable for automotive garages, motorcycle repair shops, service centers, and parking fleets.

• Charging and maintenance for 6V/12V batteries used in motorcycles, cars, SUVs, and small generators.

• Helpful for technicians restoring weak batteries or testing systems.

• Ideal for home users who need safe and convenient charging.

4. How to Use

• Connect red clamp to (+) terminal and black clamp to (–).

• Plug AC input into power outlet.

• Select 6V / 12V / 24V mode as required.

• Select charging current.

• Monitor digital display for charging status and error codes.

• When fully charged, the device stops or switches to maintenance mode.

• Disconnect power and remove clamps.
