Brake Disc & Brake Drum Lathe Machine Zelus BL553-2D
1. Features
- The Zelus BL553-2D Brake Disc and Brake Drum Lathe Machine is a professional brake resurfacing machine designed to restore worn, scored and warped brake discs and brake drums with high machining accuracy.
- The machine can resurface both brake discs and brake drums on one machine, improving workshop efficiency.
- A 0.75 kW motor provides stable cutting performance and smooth surface finishing.
- The spindle speed of 200 RPM delivers accurate machining with reduced vibration.
- The machine supports brake discs up to 500 mm in diameter and brake drums up to 360 mm.
- High machining accuracy of ≤0.003 mm helps restore brake disc flatness.
- Brake disc runout after machining is ≤0.005 mm, reducing steering vibration during braking.
- Surface roughness of Ra 1.5–2.0 μm provides excellent brake pad contact after resurfacing.
- Heavy-duty vertical construction is suitable for professional automotive workshops.
2. Specifications
- Model: BL553-2D
- Brand: Zelus
- Origin: China
- Unit: Set
- Power Supply: 220V / 50Hz
- Motor Power: 0.75 kW
- Rotating Speed: 200 RPM
- Working Height: 1 m
- Maximum Brake Disc Diameter: 500 mm
- Maximum Brake Drum Diameter: 360 mm
- Brake Disc Thickness Range: 6–40 mm
- Machining Accuracy: ≤0.003 mm
- Brake Disc Runout: ≤0.005 mm
- Brake Disc Thickness Variation: 0.005–0.01 mm
- Surface Roughness: Ra 1.5–2.0 μm
- Working Temperature: -30°C to 60°C
- Package Size: 830 × 780 × 390 mm
- Weight: 140 kg
- Application: Brake disc and brake drum resurfacing.
3. Applications
- The Zelus BL553-2D is widely used in automotive repair workshops, brake service centers and authorized maintenance facilities.
- It restores scored, warped and unevenly worn brake discs.
- The machine also resurfaces brake drums to restore proper braking performance.
- Suitable for passenger cars, SUVs, pickup trucks and light commercial vehicles.
- It helps extend brake disc service life and reduce replacement costs.
- Also suitable for automotive vocational schools and brake maintenance workshops.
4. How to Use
- Clean the brake disc or brake drum before machining.

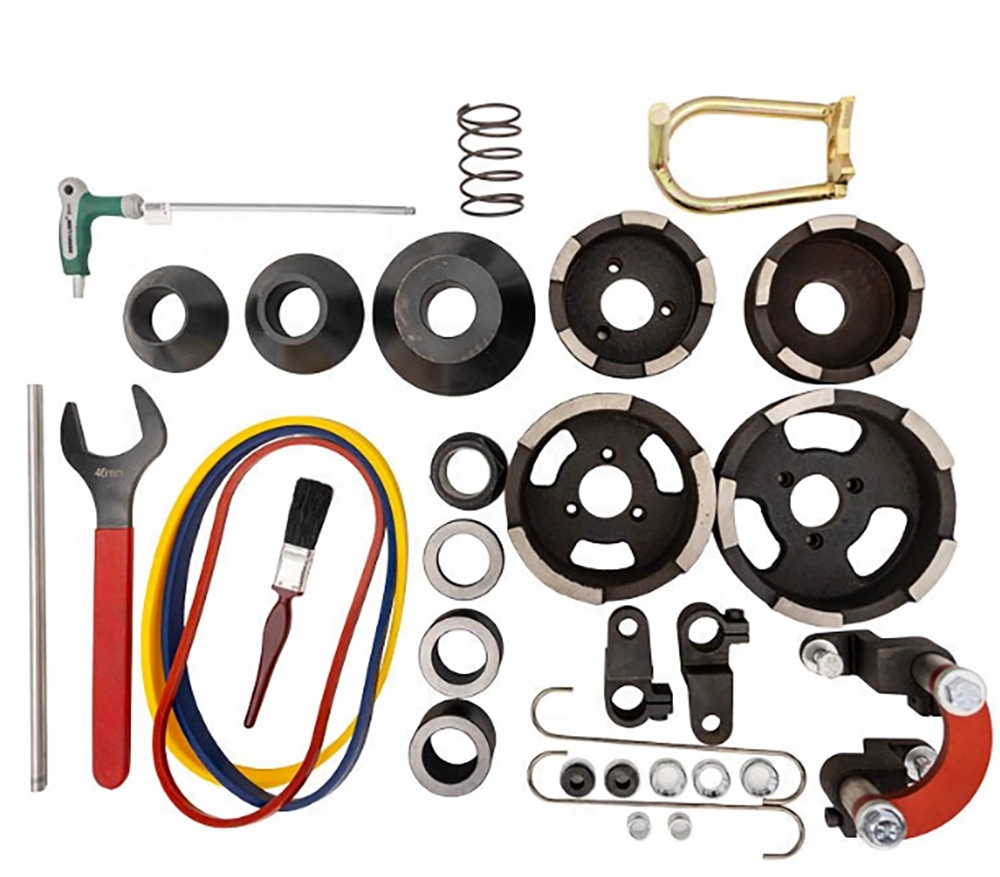

- Select the correct mounting adapter.
- Install and center the workpiece on the spindle.
- Adjust the cutting tool depth.
- Start the machine and perform resurfacing with the appropriate cutting feed.
- Measure runout and disc thickness after machining.
- Remove and clean the workpiece before reinstalling it on the vehicle.
- Clean the machine and cutting tools after use.
5. FAQ
Question 1: What is the maximum brake disc diameter?
Answer 1: The maximum brake disc diameter is 500 mm.
Question 2: Can the BL553-2D machine resurface brake drums?
Answer 2: Yes. It resurfaces brake drums up to 360 mm in diameter.
Question 3: What power supply does the machine require?
Answer 3: The machine operates on 220V / 50Hz power.
Question 4: What vehicles is the BL553-2D suitable for?
Answer 4: It is suitable for passenger cars, SUVs, pickup trucks and light commercial vehicles.
