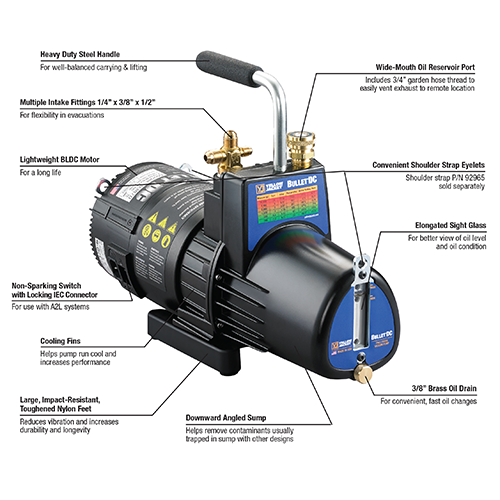

Bullet Dc Vacuum Pump Yellow Jacket 93872
Model: 93872
Brand: Yellow Jacket
Made in the USA
FEATURES:
High Torque, High Efficiency, Brushless DC (BLDC) Motor
High torque means power is always there on demand
High efficiency means less mechanical and electrical stress; and long life
Easily handles supply voltage variations; especially low voltage conditions
Starts and operates in extreme temperature conditions, especially low temperatures
Over 20% lighter than AC motor-driven pumps
No low battery condition – No Battery to let you down
Features and Benefits
Designed for use with A2L systems
Built-in mount points for optional shoulder strap (sold separately – PN 92965)
Elongated oil sight glass – easier to see oil level and condition
Internal intake check valve to help prevent oil backup into the system during a power failure
Intake filter screen keeps damaging particles from entering the pump
Heavy duty rotors and bearings
Wide mouth oil reservoir port for easier, cleaner filling. Doubles as a pump exhaust- threaded to attach a garden hose for exhausting to a remote location.
Large brass oil drain for easy access to fast oil changes
Small oil bath requires less oil
Built-in cooling fins to cool pump and increase performance
Downward angled oil sump to remove contaminants usually trapped in other pump designs
Non-sparking switch for A2L compliance
Locking low-profile IEC connector with 9’10” (3 meter) power cord to prevent accidental removal
Heavy duty steel handle
PX4 Rating – resistant to water splashes from any direction
Two-year warranty
SPECS:
Free air displacement: 200/165 L/M
Number of stages: 2-stage rotary vane
Field blankoff: 25 microns
Intake: 1/4" x 3/8" x 1/2"
Motor: BLDC 1/2 hp
Thermal overload protection: Yes
Voltage (single phase): 100-127V/220-240V, 50-60 Hz; factory
set at 115V
Power cord: 9' 10" cord (3 meter) locking IEC
Oil capacity: 28 oz. (0.828 L)
Dimensions: 17.5" L x 6" W x 12" H (44.5 cm x 15.2 cm x 30.5 cm)
Net weight: 27.5 lbs. (12.5 kg) filled
