1. Key Features

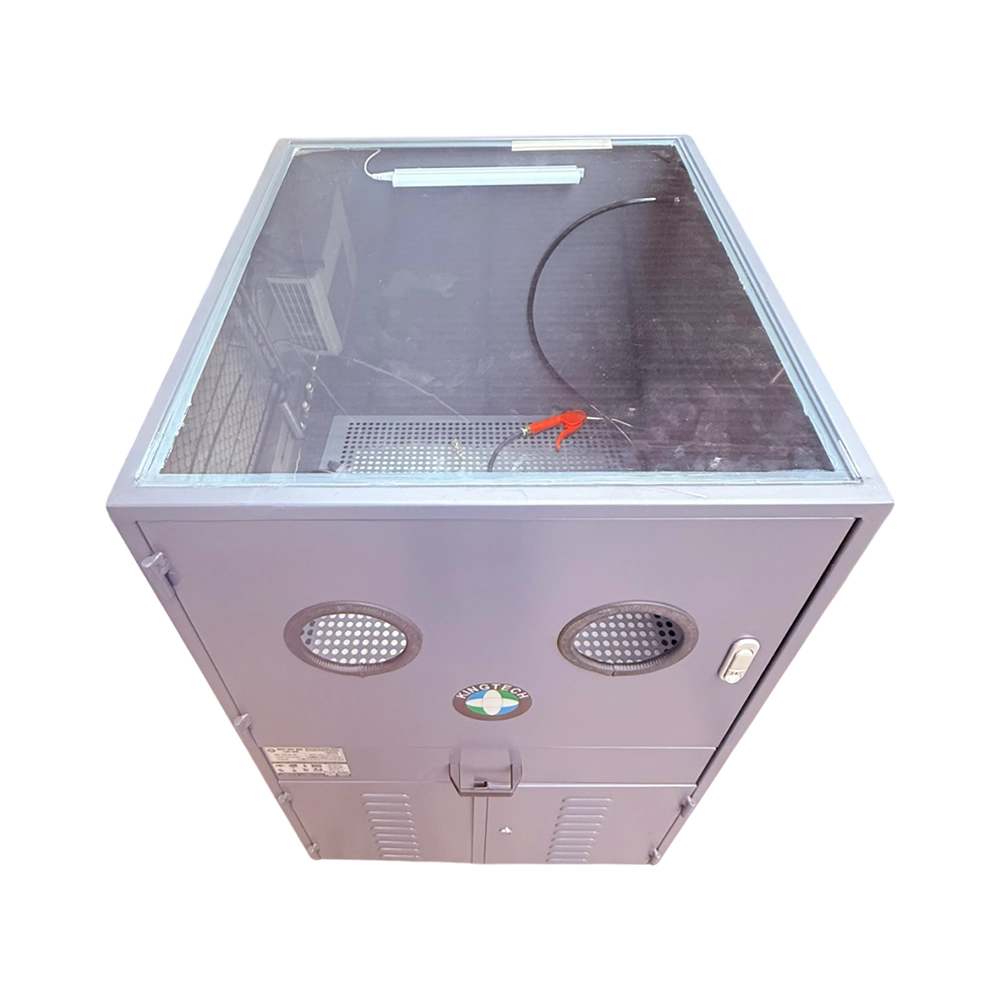

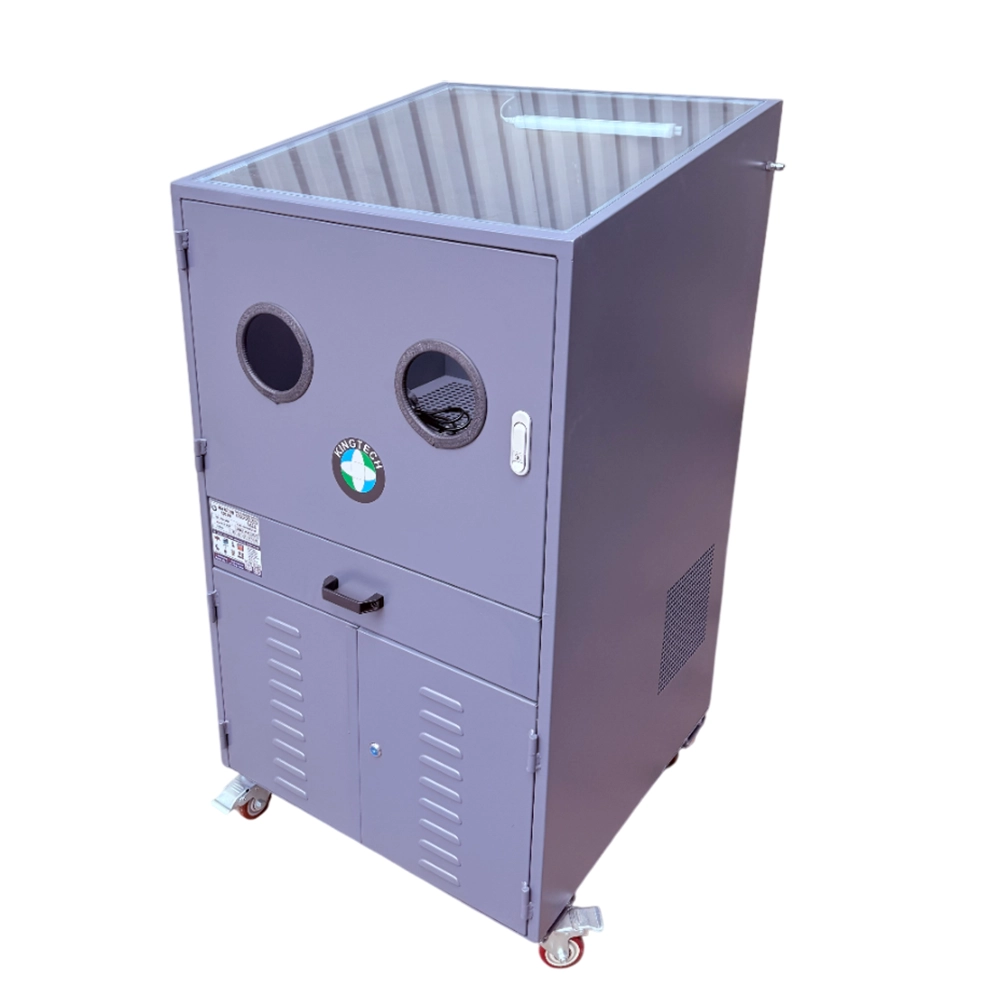

CB-04122 is a professional air filter cleaning dust collector cabinet designed for automotive workshops. Equipped with a 0.75kW motor and dual filters with 96% efficiency, it ensures effective dust extraction and a cleaner working environment. The unit includes a Taiwan THB air gun for quick cleaning and a fluorescent lamp that operates together with the exhaust fan. Durable construction and stable performance make it ideal for professional garages.
2. Technical Specifications
Model: CB-04122
Brand Kingtech
Origin Vietnam
Dimension 680x680x1280mm
Voltage AC220V 50Hz
Protection class IP54
Current 5A
Power 0.75kW
Speed 2800r/min
Power factor 0.98
Air pressure 8 to 10bar
Lighting 1 fluorescent lamp linked with fan
Air gun 1 THB Taiwan air gun
Filter system 2 filters 96% efficiency
Dust capacity 420g/m2
3. Applications
CB-04122 is used for cleaning engine air filters of cars, trucks, buses, and construction machinery. It removes dust effectively, extends filter service life, and reduces replacement costs in workshops.
4. How to Use
Connect the machine to AC220V power supply and 8 to 10bar compressed air. Turn on the switch to activate the fan and lighting. Place the air filter inside and use the air gun to blow off dust while the system collects debris through the filters. Turn off the machine after use and clean the dust container regularly.
