1. Key Features

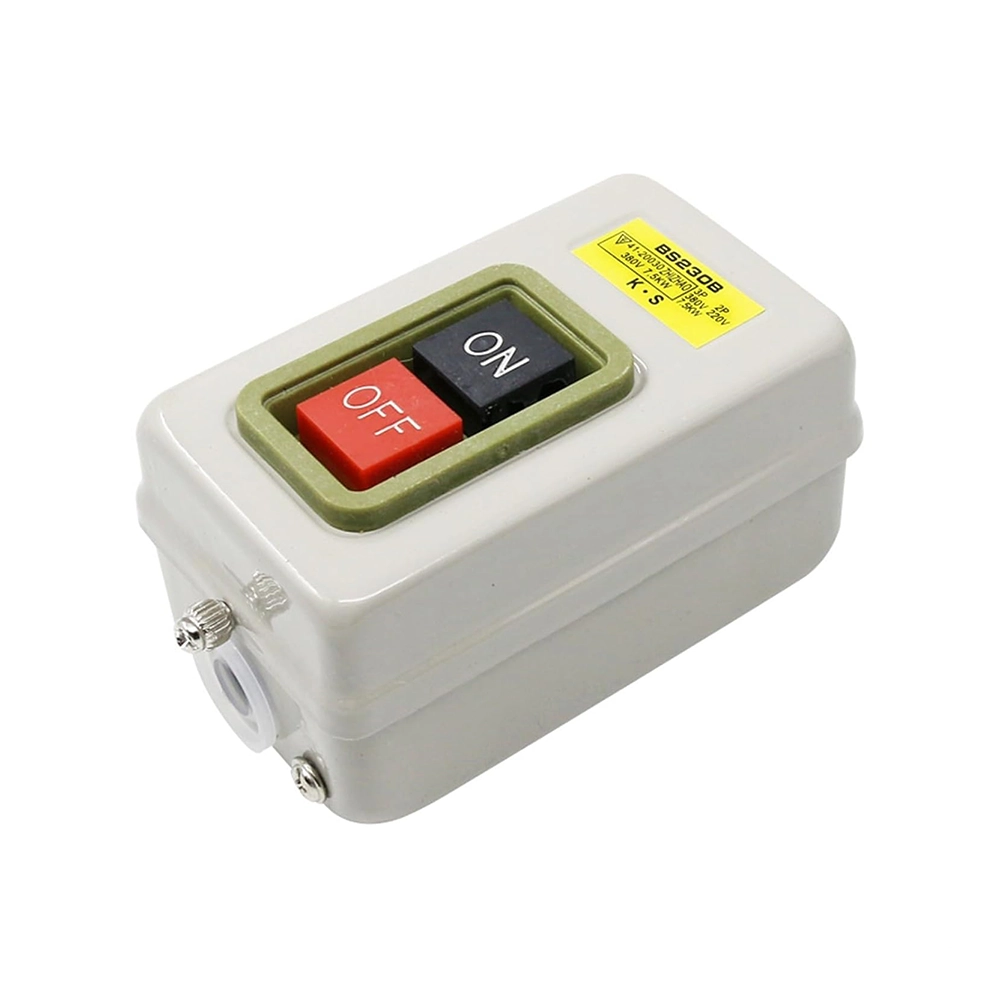

CNC BS230 ON OFF power switch is a robust industrial mechanical switch that allows direct control of 3-phase motors up to 3.7kW without using a contactor. The metal housing provides high durability and a classic industrial appearance. Silver contacts ensure excellent conductivity, long service life, and reliable operation with over 1 million switching cycles. Clearly labeled ON and OFF buttons allow quick and safe operation.



2. Technical Specifications

Model CNC-BS230

Also known as BS230, TBSN-330

Brand CNC

Origin China

Switch type ON OFF power switch for 3-phase

Contacts 3 SPST contacts

Contact material Silver

Rated current 10A

Working voltage 380V AC

Max power 3.7 kW

Housing material Iron

Conductor material Brass

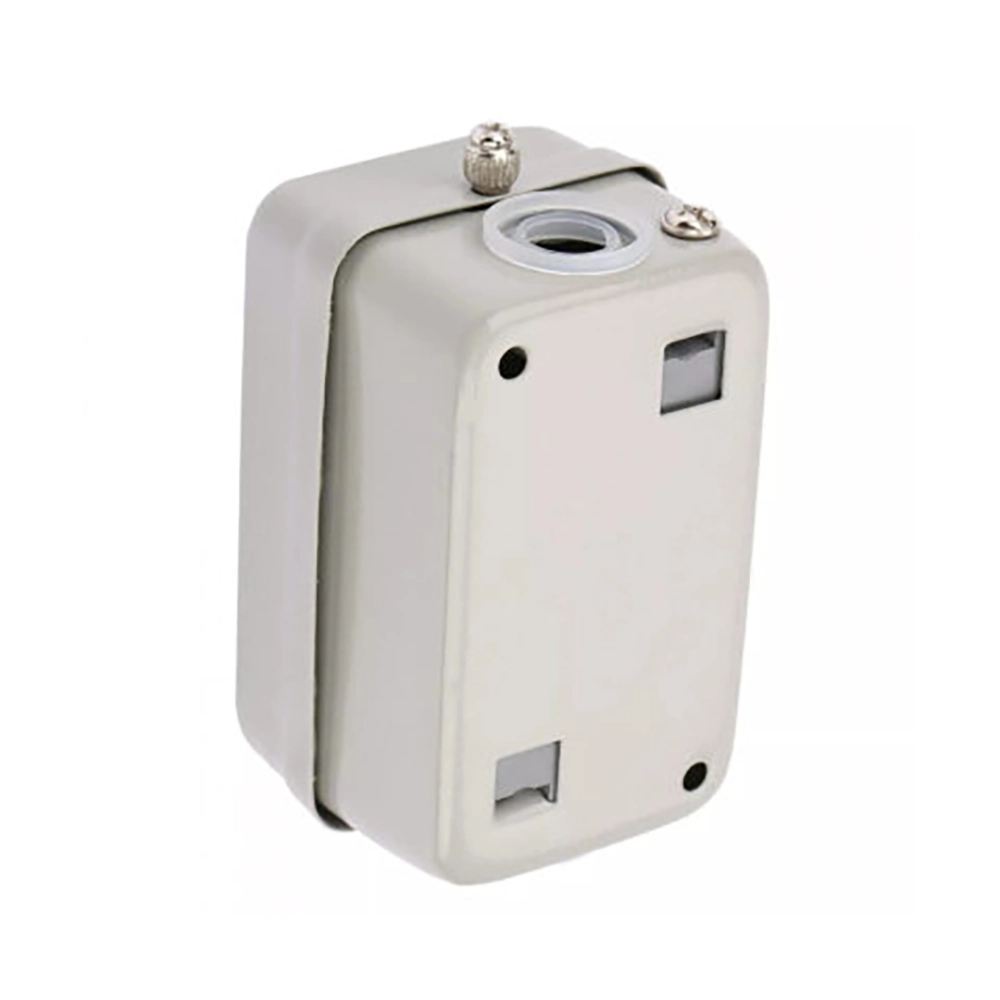

Mounting method Screw mounting

Service life Over 1,000,000 operations

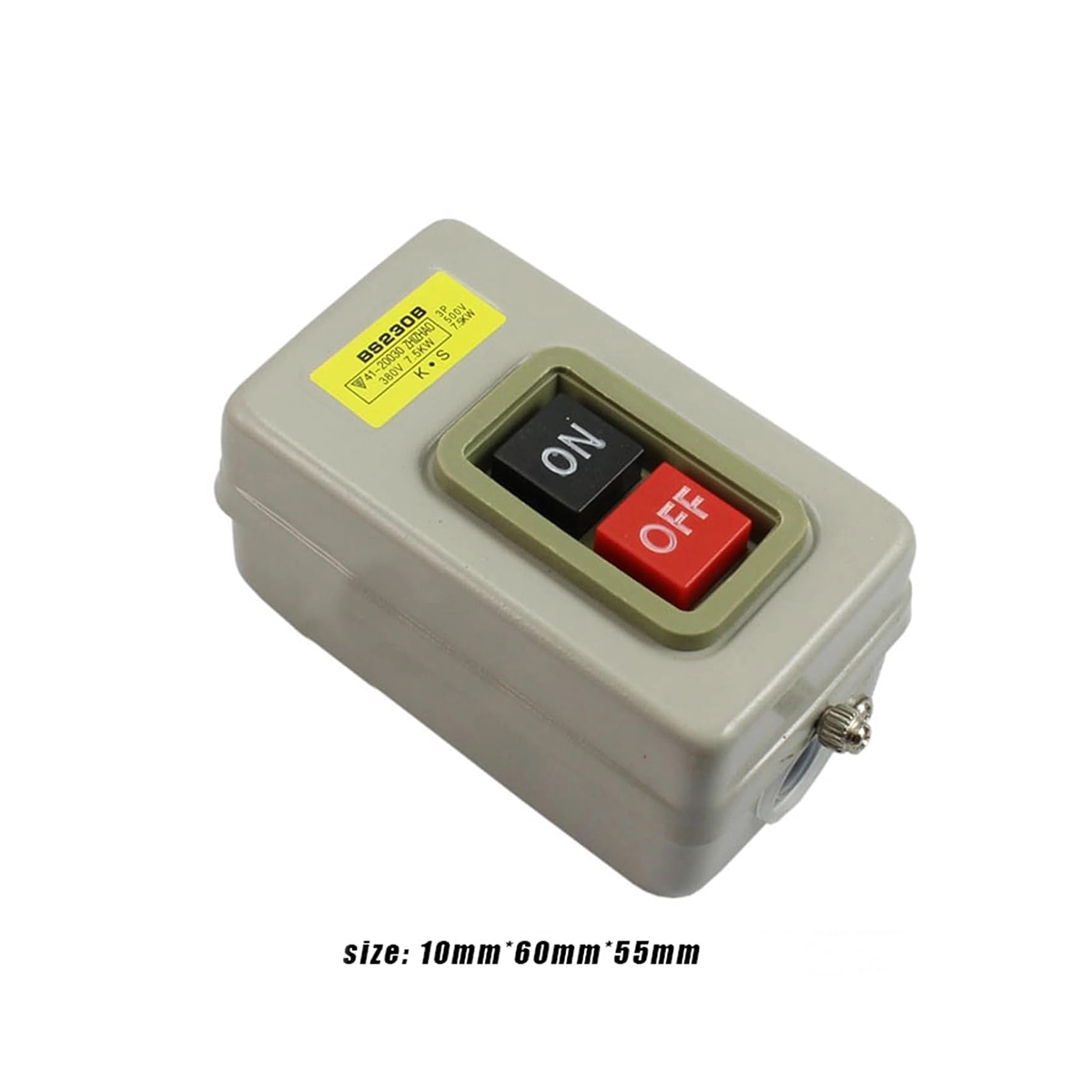

Dimensions 100 x 58 x 50.6 mm



3. Practical Applications

Direct switching of small 3-phase electric motors

Machinery, CNC machines, cutting and drilling machines

Simple control panels and electrical cabinets

Automation projects, robotics and DIY applications



4. Instructions for Use

Disconnect power before installation

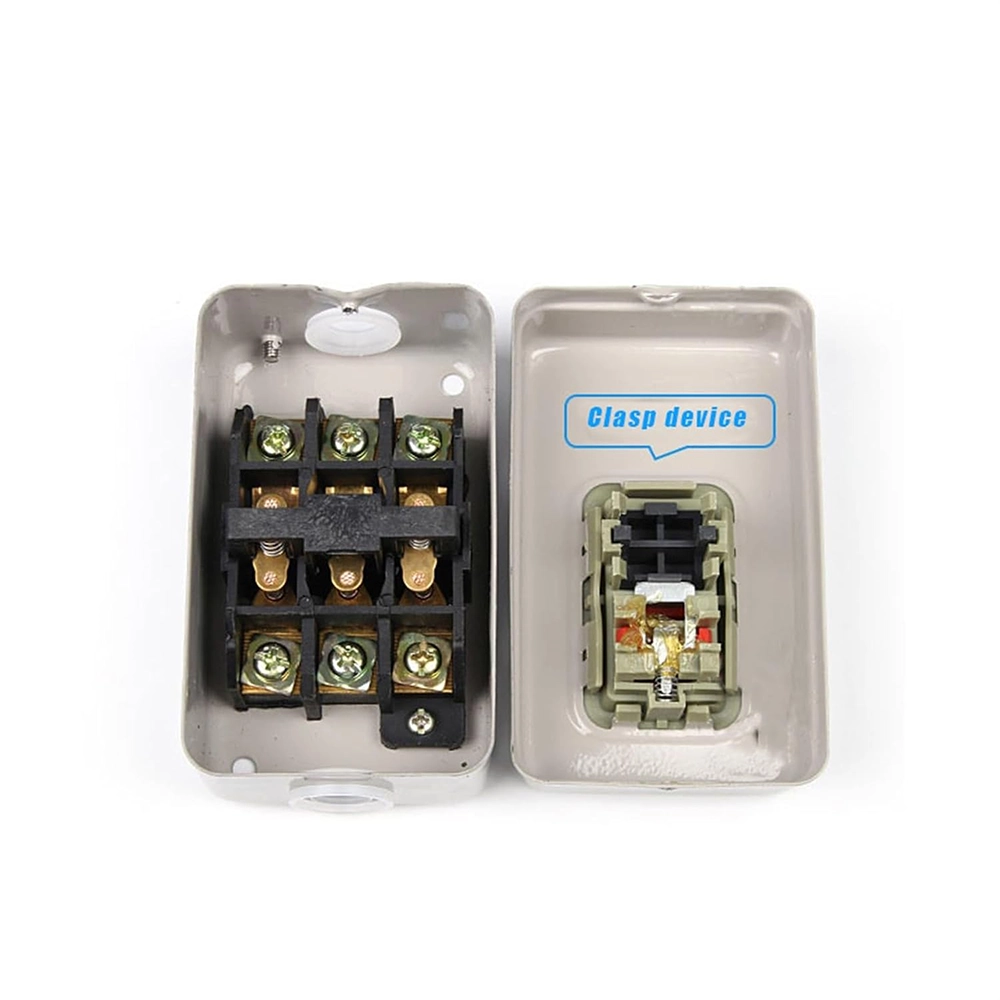

Wire the power supply and motor cables to the internal terminals

Secure the switch to the machine or panel using screws

Press ON to connect power

Press OFF to disconnect power

Check connections periodically for safe operation
