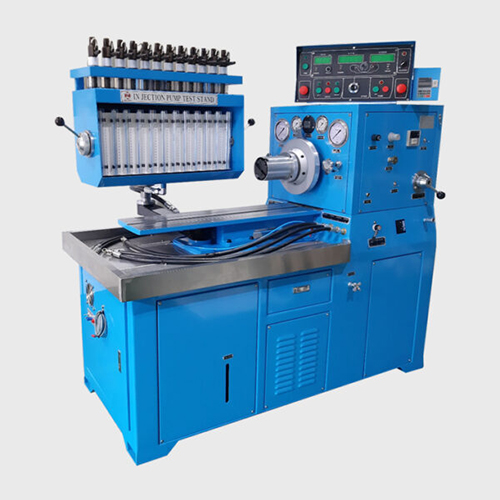

Combination Tester Koeng DNCRT-COMBI.1204
1. Key Features
-
- High Accuracy: Supports testing and calibrating diesel high-pressure pumps and Commonrail injectors with various tests, suitable for 12-cylinder engines and 4 injectors.
-
- Powerful Performance: Equipped with a 10HP motor, ensuring stable and comprehensive testing.
-
- Versatile Functionality: Capable of testing timing angle, overflow amount, supply pressure, and Commonrail system simulation for Bosch, Delphi, and Denso.
-
- Durable Design: Robust construction with a safety rotary cover for added protection during operation.
2. Technical Specifications
High Pressure Pump Drive Motor: AC 220V/380V/3PH/60Hz (controlled by inverter), 4 cylinders, 7.5KW(10HP)
Low Pressure Pump Drive Motor: AC 220V/380V/3PH/60Hz 200W(1/3HP)
Low Pressure Pump: Output pressure 07 kg/cm², Max. output flow 7 ℓ/min
Fuel Tank: 45ℓ
Temperature Control: 0100°C
Measuring Glass: 150cc (6ea), 32cc (12ea), both sides
Stroke: 015 columns
Engine RPM: 04000 (100, 600, 650, 750, 1000), Digital
High Pressure Pump RPM: 04000 RPM (digital display, 09999 RPM)
Low Pressure Analog Gauge: 06 kg/cm² supply pressure control
High Pressure Analog Gauge: 0200kg/cm²
High Pressure Regulator: 0200kg/cm² (200bar) pressure control
Fuel Cooling Device: 400600ml/min
Fuel Cooling with Water (40W): 400600ml/min
Fuel Filter: 30 microns
Fuel Filter for Line: 30 microns
Testing Time Setting Timer: 060min
High Pressure Pump RPM: 2203500W(D×M), T groove type
Drive Motor: AC 220380V/3PH/5060Hz, 4 pole induction motor (control by inverter)
Speed Range: 03600rpm, in both directions
Pump Motor: AC 3PH 0.75KW(1HP), 4 pole induction motor
Pump: Max. output flow 7.7ℓ/min, Vane pump
Heater: AC 220380V, 1KW/1P tank heater
Speed Control: Manual Auto (It can operate 9 steps in auto mode)
Glass: 200cc and 450cc both sides
Stroke Counter: 0100, 100, 200, 150, 250, 10.05 turns
RPM Counter: 4 digit segment LED display (09999 RPM indication)
LOW (IN line) Fuel Control Valve: 06 kg/cm² supply pressure control
PE A (IN line) Pressure Gauge: 060kg/cm²
VME (Rotary) Pressure Gauge: 060kg/cm²
Overflow Pressure Gauge: 06kg/cm²
Governor Pressure Gauge: 010kg/cm², 0100mmHg (Digital type)
Vacuum Regulator & Air Regulator (1 set): For Vacuum Regulator: 760mmHg (1Bar=0.99 kg/cm²=14.22 psi), For Air Regulator: 0~1500mmHg
Air Compressor: Compressor capacity: 1HP, 10kg/cm²
Rack Scale: 0.05mm
Packing Dimensions (mm): 2100mm(L)×1440mm(W)×1200mm(H), 900mm(L)×950mm(W)×2050mm(H)
Net Weight / Gross Weight: 1200kg / 2050kg
3. Practical Applications
-
- Automotive Industry: Used for testing and calibrating high-pressure pumps in automotive repair centers.
-
- Marine Industry: Applied in the maintenance of diesel engines for ships.
-
- Heavy Industry: Testing fuel pumps for large industrial machinery.
4. Usage Instructions
-
- Step 1: Connect the device to a power source and ensure all accessories are correctly installed.
-
- Step 2: Attach the high-pressure pump or injector to the appropriate jig or mounting bracket.
-
- Step 3: Set testing parameters on the control box and select the appropriate test procedure.
-
- Step 4: Monitor the indicators on the display screen and make adjustments if necessary.
-
- Step 5: Upon completion, clean the machine and conduct regular maintenance to ensure longevity.
5. Standard Accessories & Tools (45 Items)
- DND-103W standard accessories 77kinds
- High pressure pipe for high pressure pump and rail supply : 1 EA (3 Ø x 8Ø x 600)
- High pressure pipe for injector spray: 4EA (2 Ø x 6Ø x 600)
- Zig for injector for Bosch, Delphi, Denso : 4 EA per each
- Injector power connector : 2 sets
- Pressure sensor connector : 1 EA
- Ring bracket for Bosch H.P pump : 1 EA & connecting bracket for Bosch H.P pump : 1EA
- Ring bracket for Delphi H.P pump : 1 EA & connecting bracket for Delphi H.P pump : 1EA
- Ring bracket for Denso H.P pump : 1 EA & connecting bracket for Denso H.P pump : 1EA
- H.P pump mounting bracket : 1EA
- Rotation safety cover : 1EA
- Measuring glass : 150 cc (6EA), 32 cc (12EA)
- T bolt (2EA) and others
-
