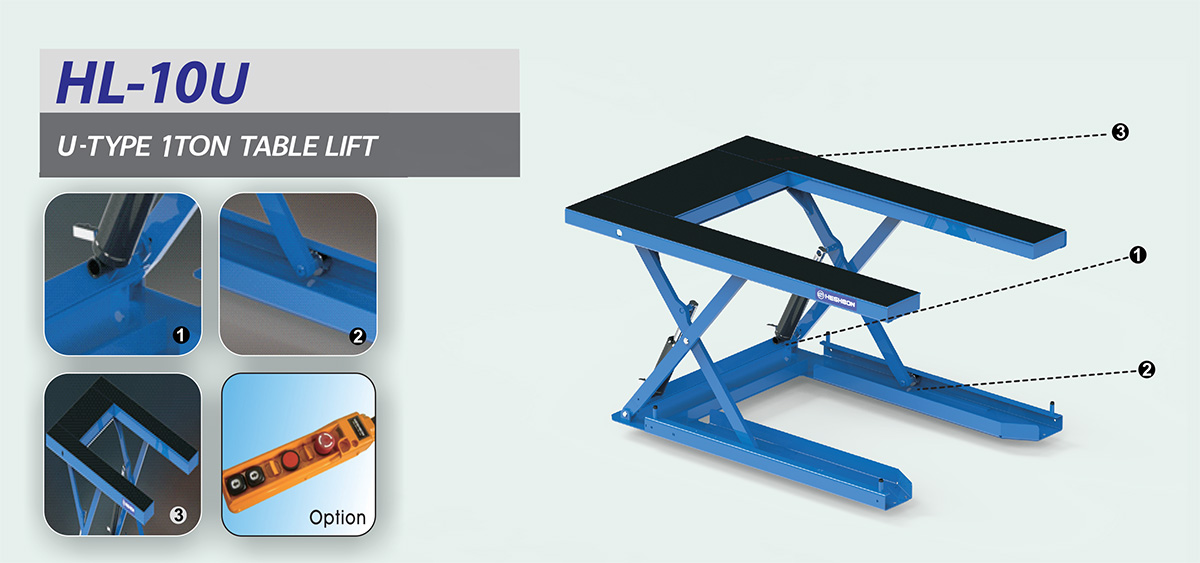

Heshbon HL-10U U-Type 1 ton Table Lift

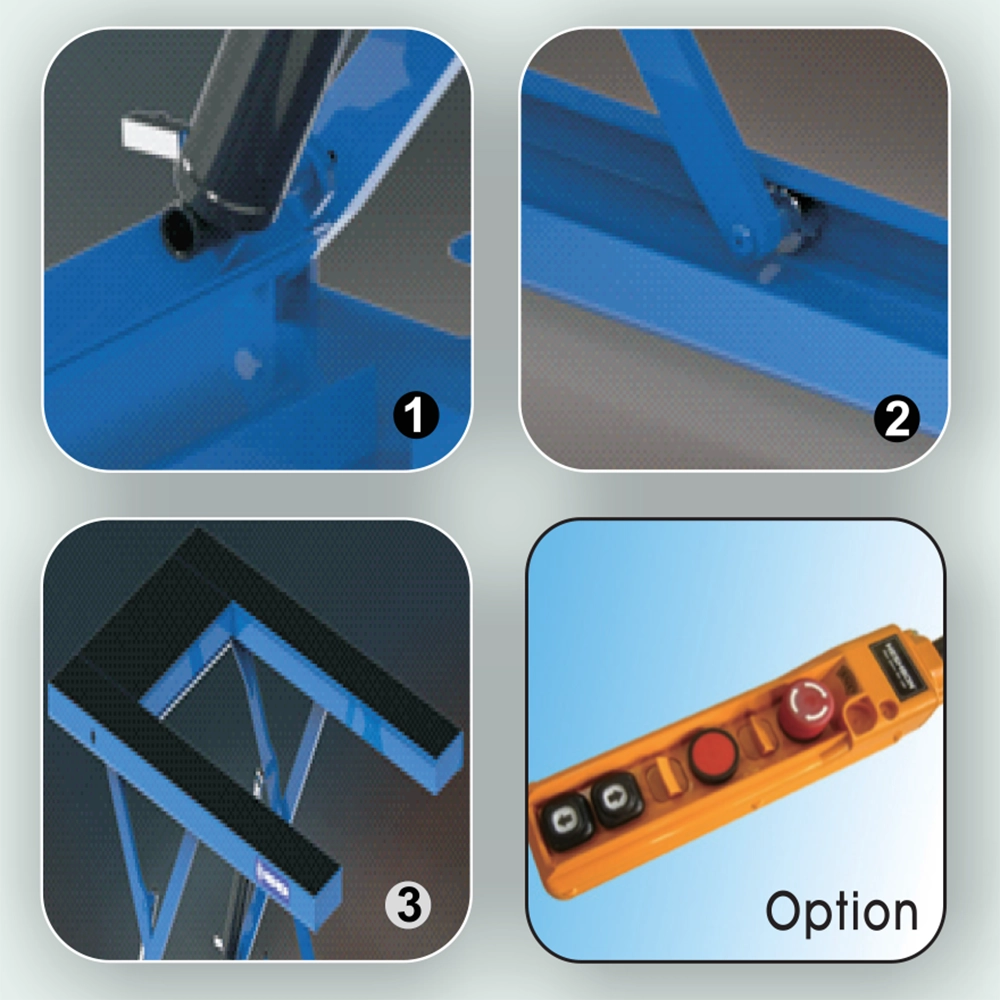

1. Key Features
"U" Type fixed table lift
Insulation rubber pad on platform
DU bearing applied
Orifice applied to prevention of sudden descent
Convenient control switch
Remote controller (Option)
Upper limited sensor (Option)
2. Key Features
U-shaped platform design allows direct pallet access by pallet trucks.
Heavy-duty construction with a lifting capacity of up to 1 ton.
Reliable and durable hydraulic system for stable operation.
Equipped with a sudden descent prevention device for enhanced safety.
Easy installation, operation, and maintenance.
Manufactured in South Korea, ensuring high quality and reliability for industrial pplications.
3. Specifications
Model No.: HL-10U
Brand: Heshbon
Made in Korea
Lifting Capacity(kg): 1,000 kg
Max. Lifting Height: 1,115 mm

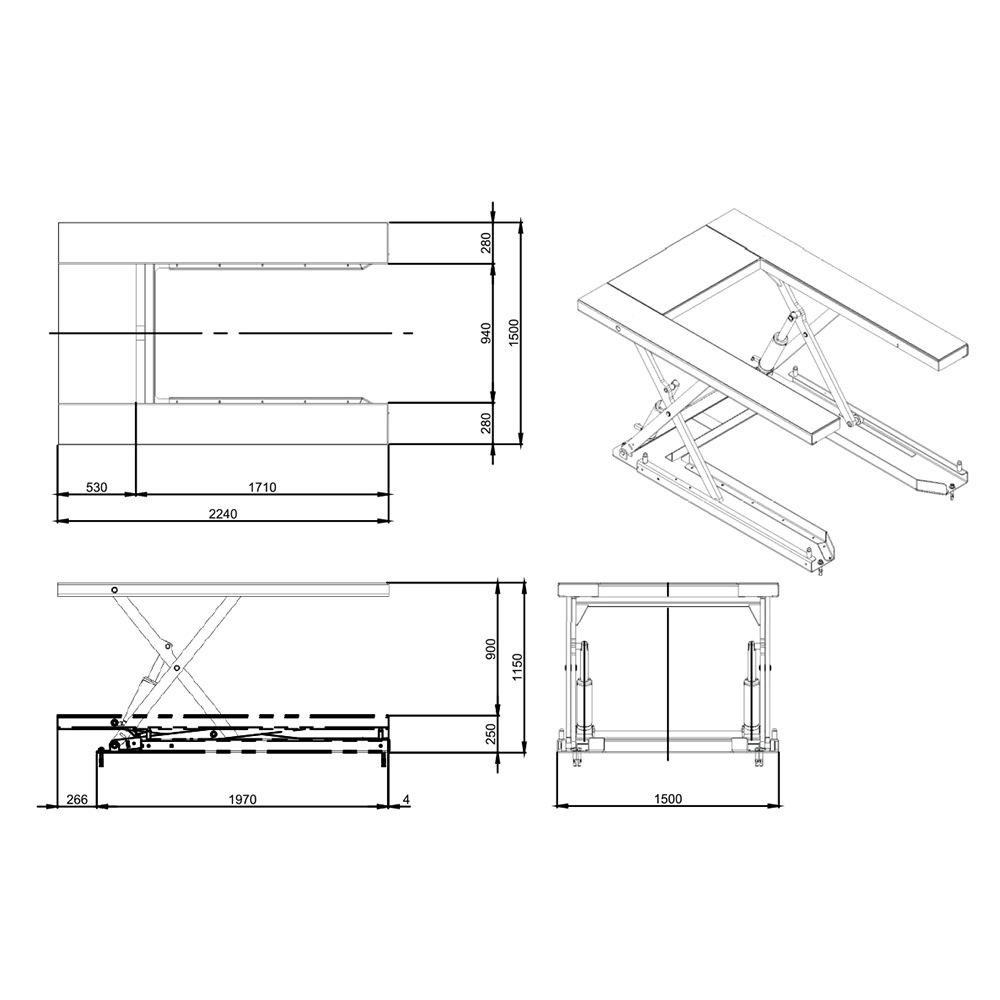

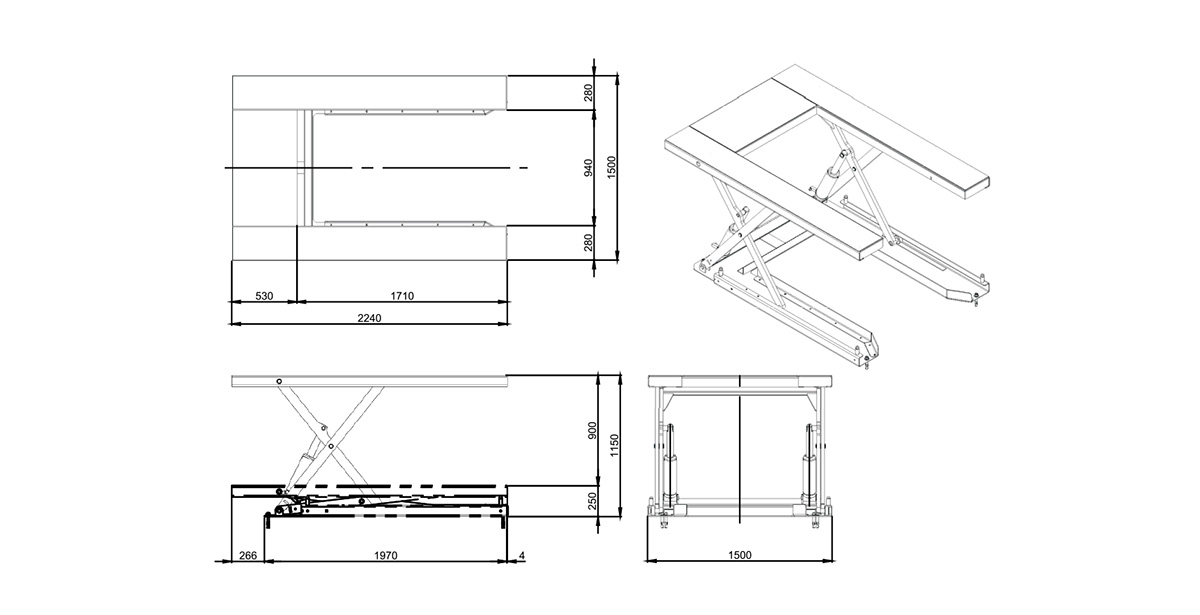

Dimension(mm): 2,240(L) x 1,500(W) x 250(H)
Power Supply & Motor:
1ph: 2.5HP, 4P, 220V, 50/60Hz
3ph: 2HP, 4P, 220/380V, 50/60Hz
Net Weight: 500 kg ( include Control box)
Lifting time / lowering time: 25~35 sec. / 25~30 sec.
4. Practical Applications
Pallet handling operations.
Warehouse logistics.
Packaging production lines.
Industrial manufacturing plants.
Distribution centers.
Mechanical workshops.
Loading and unloading stations.
5. How to Use
Place the pallet or load onto the platform. Operate the control switch to raise or lower the lift to the desired height. Return the platform to its lowest position after use and perform regular hydraulic maintenance.
6. Benefits
Improves material handling efficiency.
Reduces manual labor.
Enhances workplace safety.
Increases productivity.
Minimizes lifting injuries.
Reliable hydraulic operation.
Low maintenance cost.
7. Suitable Users
Warehouses and logistics centers.
Manufacturing facilities.
Distribution centers.
Mechanical workshops.
Industrial factories.
Material handling operations.
8. Real Case
A logistics center installed the HL-10U in its packaging area to improve pallet handling efficiency. The U-type design enabled easy pallet access and significantly reduced loading and unloading times.
9. FAQ
Question 1: What is the lifting capacity?
Answer 1: The maximum lifting capacity is 1,000 kg.
Question 2: Is it suitable for pallet handling?
Answer 2: Yes, the U-type platform is specifically designed for pallet applications.
Question 3: Does it have a safety descent system?
Answer 3: Yes, the integrated orifice prevents sudden lowering.
Question 4: Can it operate on single-phase power?
Answer 4: Yes, both single-phase and three-phase power options are available.
Question 5: Is a remote controller available?
Answer 5: Yes, it is available as an optional accessory.
Question 6: What industries commonly use this lift?
Answer 6: Warehousing, logistics, manufacturing and material handling industries.
10. Product Summary
The Heshbon HL-10U is a reliable 1-ton U-type hydraulic table lift designed for pallet handling and industrial lifting operations. It offers excellent durability, safety and productivity improvement for warehouse and manufacturing environments.
11. Why Choose HL-10U
Made in Korea.
1-ton lifting capacity.
Convenient U-type platform design.
Anti-sudden descent safety system.
Insulation rubber platform pad.
Durable DU bearing structure.
Single-phase and three-phase options.
Low maintenance cost.
12. Related Products
Heshbon HL-10S
Heshbon HL-20S
Heshbon HL-1000
Heshbon HL-32D
Heshbon HL-53X
Heshbon HL-55F
