Heshbon HL-26N 4 ton 2 post lift

1. Key Features

• Automatic arm restraints: The supporting arms are automatically locked in position during the lifting operation. Once the lift is fully extended, this lock is automatically released, enhancing safety and operational efficiency.

• Manually operated lock release device: This device allows for manual lock release when necessary, offering more control in special situations.

• Piston-type cylinder operation: High-pressure cylinders in each column provide optimal lifting force and smooth operation.

• Upper limit protection bar: The limit bar prevents the lift from exceeding the safe height, protecting vehicles from damage.

• Door guard rubber: Rubber guards protect vehicle doors from damage during lifting.

• Telescopic pick-up arms: These arms ensure optimal reach to pick-up points for both small and large vehicles.

• Baseframe-free design: The baseframe-free column design eliminates obstructive connections on the floor, saving space and improving ease of use.

2. Specifications

• Model: HL-26N

• Lifting Capacity: 4,000 kg

• Max. Lifting Height: 1,920 mm

• Min. Height: 100 mm

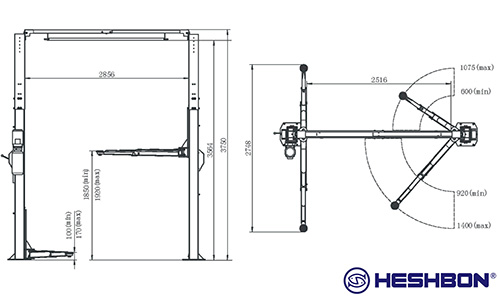

• Dimensions: 2748(L) x 2856(W) x 3750(H) mm

• Power Supply & Motor:

  • 1-Phase: 2.5HP, 4P, 220V, 50/60Hz

  • 3-Phase: 2HP, 4P, 220/380V, 50/60Hz

• Net Weight: 760 kg

3. Practical Applications

• Car and Truck Repair: The Heshbon HL-26N 2-post lift is ideal for repairing cars and medium-sized trucks. With a 4-ton lifting capacity, it’s perfect for automotive repair shops, garages, and vehicle maintenance centers.

• Vehicle Maintenance: It’s used for various vehicle maintenance tasks such as oil changes, undercarriage inspections, engine repairs, and other related jobs.

• Mechanical Workshops: It can also be used in mechanical workshops for lifting parts, vehicle frames, or other heavy equipment.

4. How to Use the Heshbon HL-26N 2-Post Lift

• Step 1: Ensure the area where the lift is installed is free from obstructions and that the floor is flat and stable.

• Step 2: Position the vehicle directly under the lift, ensuring that the vehicle’s lift points are aligned with the support arms.

• Step 3: Adjust the arms to securely fit the vehicle's lift points. If needed, use the telescopic pick-up arms to reach the appropriate points.

• Step 4: Activate the lift and begin raising the vehicle. Monitor the lift points to ensure no damage occurs.

• Step 5: Once the vehicle is raised to the desired height, check its stability and make sure everything is secure.

• Step 6: After completing the work, carefully lower the lift and ensure the vehicle is safely lowered back to the ground.

• Step 7: Release the automatic arm lock once the lift process is complete and tidy up the equipment.
