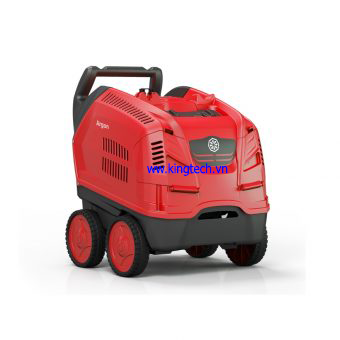

High Pressure Washers – Hot Water IPC Portotecnica ARGON-H4 D1309P M

High Pressure Washers – Hot Water IPC Portotecnica  ARGON-H4 D1309P M

Pressure: 130 ~ 170 bar
Flow rate:  500 ~ 800 l/h
Absorbed Power: 2,5 ~ 4,5 kW

IMMEDIATE TOTAL STOP - ITS ("I" MODELS)
BOILER IGNITION DELAY - IBD
IPC TEMPERATURE STIBILIZER
DELAYED TOTAL STOP - DTS ("D" MODELS)
INTELLIGENT AUTOMATIC SWITCH OFF - IASF
("D" MODELS)
MICRO LEAKAGE CONTROL - MLC
("D" MODELS)
DRY RUNNING PROTECTION - DRP
("D" MODELS)
NOZZLE CLOGGED CONTROL - NCC ("D" MODELS)
FLOODING PREVENTION SYSTEM - FPS ("D" MODELS)

SPECS

LARGE DIAMETER WHEELS IN ORDER TO FACILITATE MOVEMENTS
ACCESSORY STORAGE COMPARTMENT
STURDY AND LARGE TANK IN ROTOMOULDED PLASTIC MATERIAL

TECHNICAL DATA
 DELAYED TOTAL STOP

4 WHEELS: ARGON-H4 D1309P M
Code: IDAC40810
3PERFORMANCE
Operating pressure(bar/Mpa): 40-130/4-13
Flow rate(l/h): 530
Outlet water temperature(°C): 30-140
Power supply(Ph-V-Hz/A): 1-230-50/11,5
Absorbed power
(kW): 2,8
Motor pole/rpm: 2-2800
Remote Control: DTS
Pump/head/pistons: Ipc plunger/brass/ceramic
Boiler thermal power(kW): 40
Fuel consumption(kg/h): 3,2
Fuel tank(l): 18
Detergent tank(l): optional 2,5l
Dimension (LxWxH)(cm): 82 x 63 x 87
Weight(kg): 80




STANDARD EQUIPMENT
CODE: IPPR40017 HANDGRIP (FOR 1308)

CODE: IPPR40020 HANDGRIP G6000 (FOR 1309/1713)

CODE: LCPR40037 EXTENSION P50 ZINC PLATED

CODE: UGLN40000 H.P. NOZZLE 1/4 UG.15034 (FOR 1309)

CODE: TBAP28305
HIGH PRESSURE HOSE 8 m

OPTIONAL ACCESSORIES
 CODE: LCPR29362 HYDROBRUSH LANCE PD50

CODE: SPID24939 FIXED HYDROBRUSH LANCE

CODE: LCPR40040 FOAMER

CODE: KTRI40303 HOSE REEL KIT

CODE: RCIN10810 HOSE COUPLING M22

CODE: KTRI29377 FEEDING KIT

CODE: KTRI29377 FEEDING KIT

CODE: KTRI29366  PLUNGER EJECTOR DEVICE

CODE: LCPR40114 TURBO LANCE M22 D.1,20

CODE: LCPR24943 SANDBLASTER KIT Ø 1,3 mm (FOR 1308/1309)

CODE: PRCH00065 SAND BAG 50  Kg

CODE: LCLC49492 LANCE FOR WASHING FLOORS Ø 0,35

CODE: KTRI40306 MAINTENANCE KIT 500H (FOR 1308/1309)
