1. Key Features

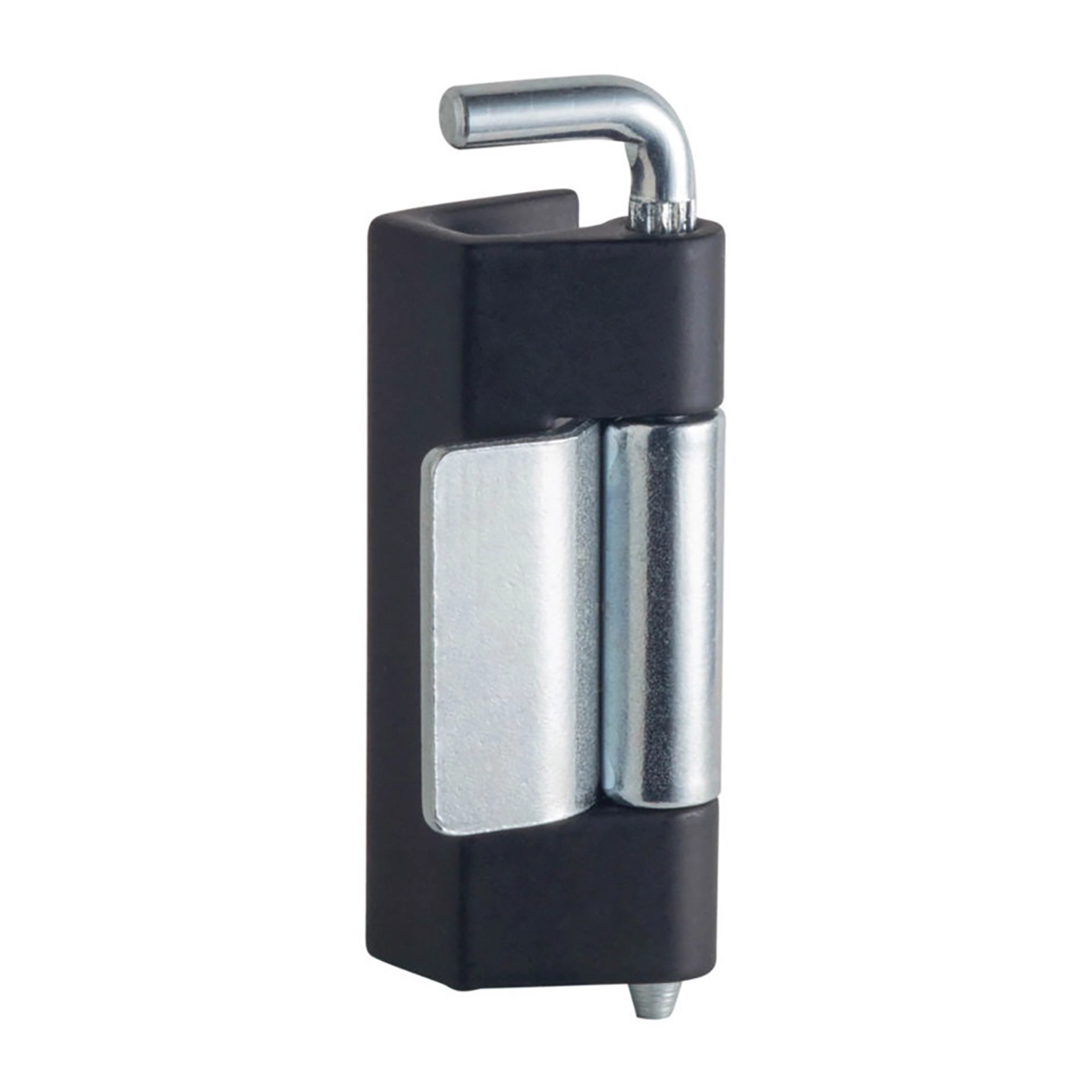

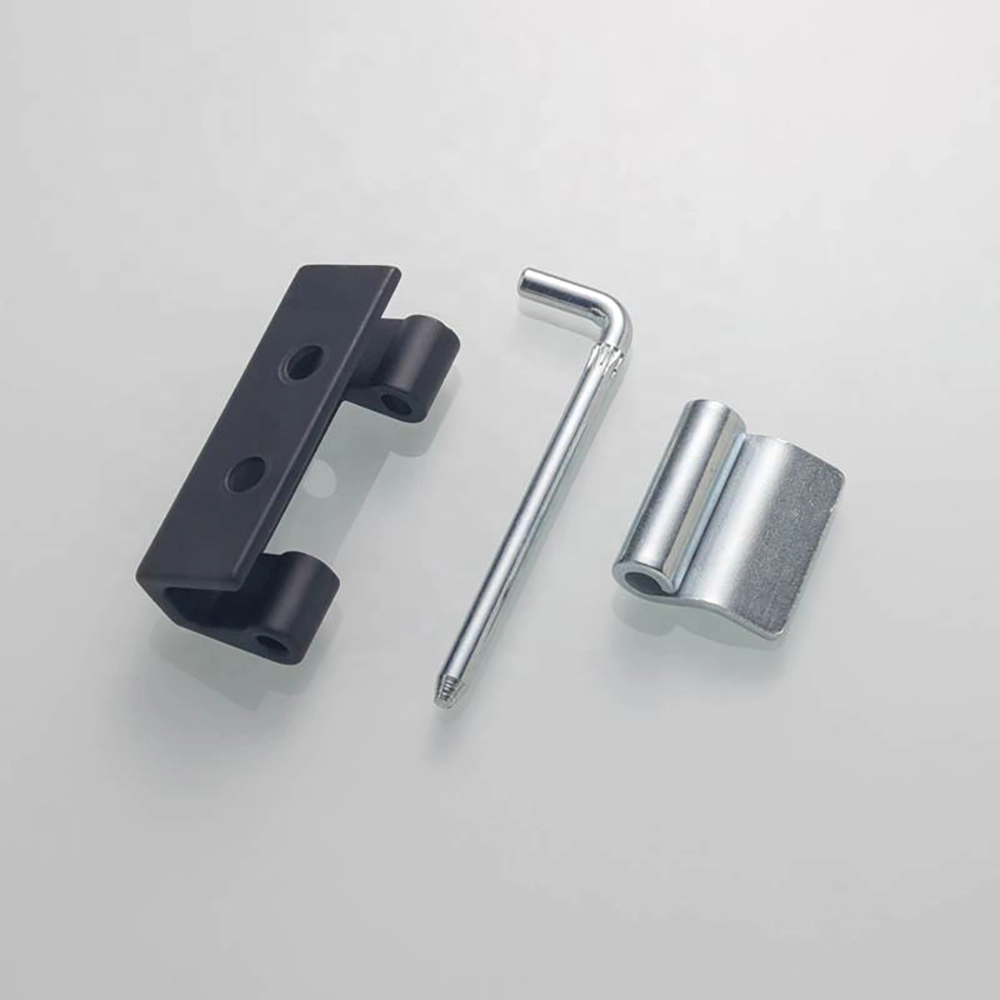

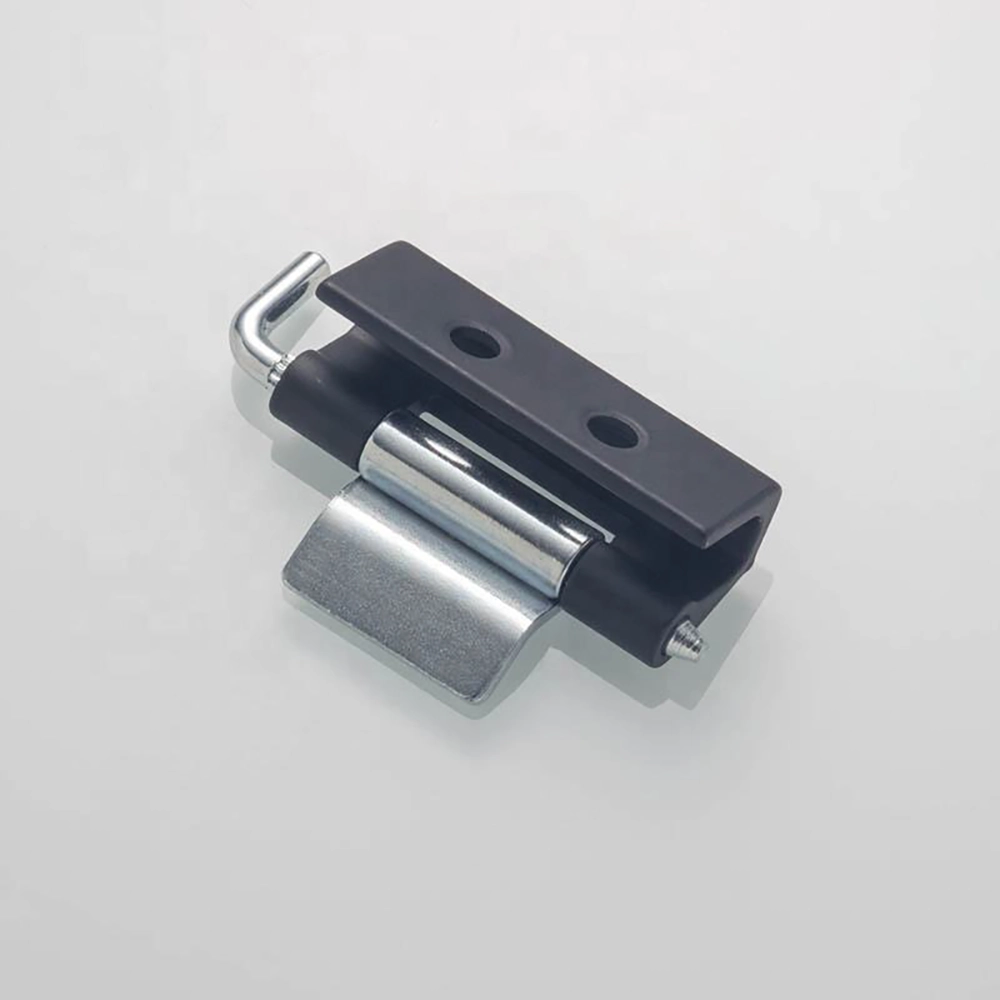

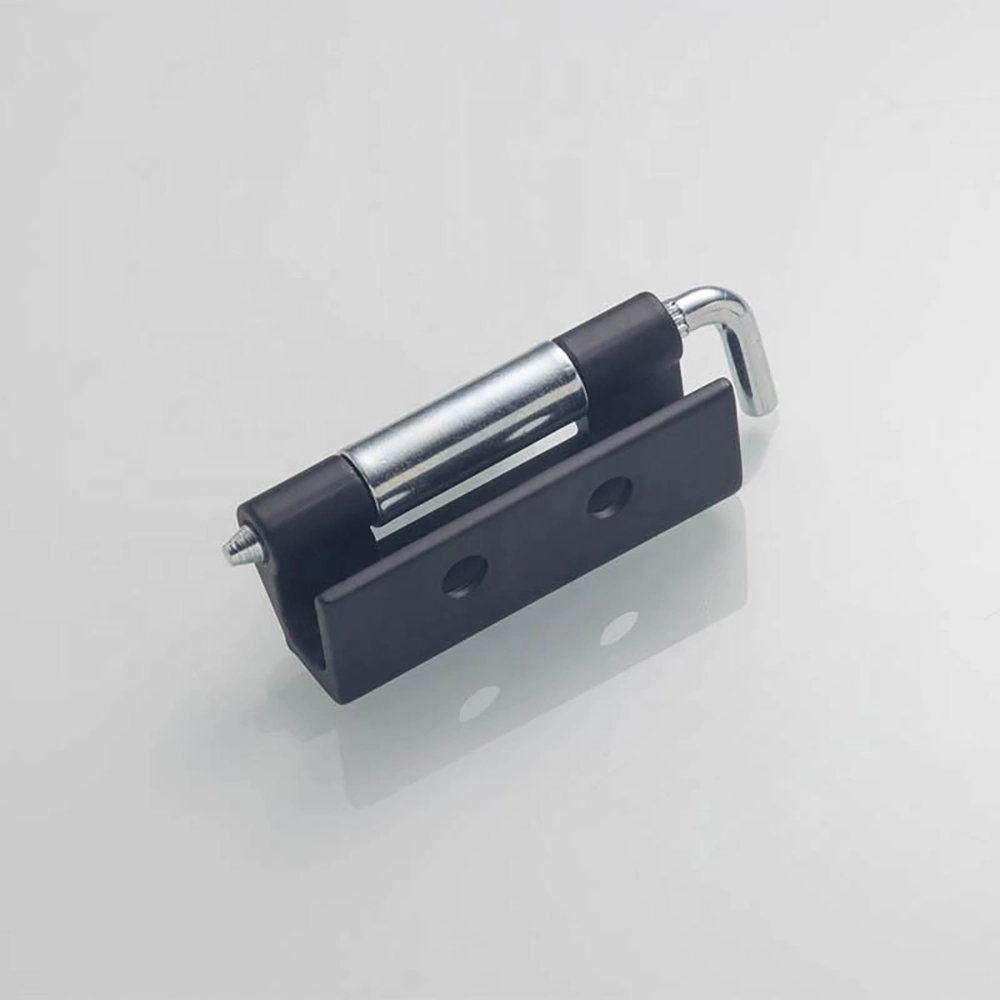

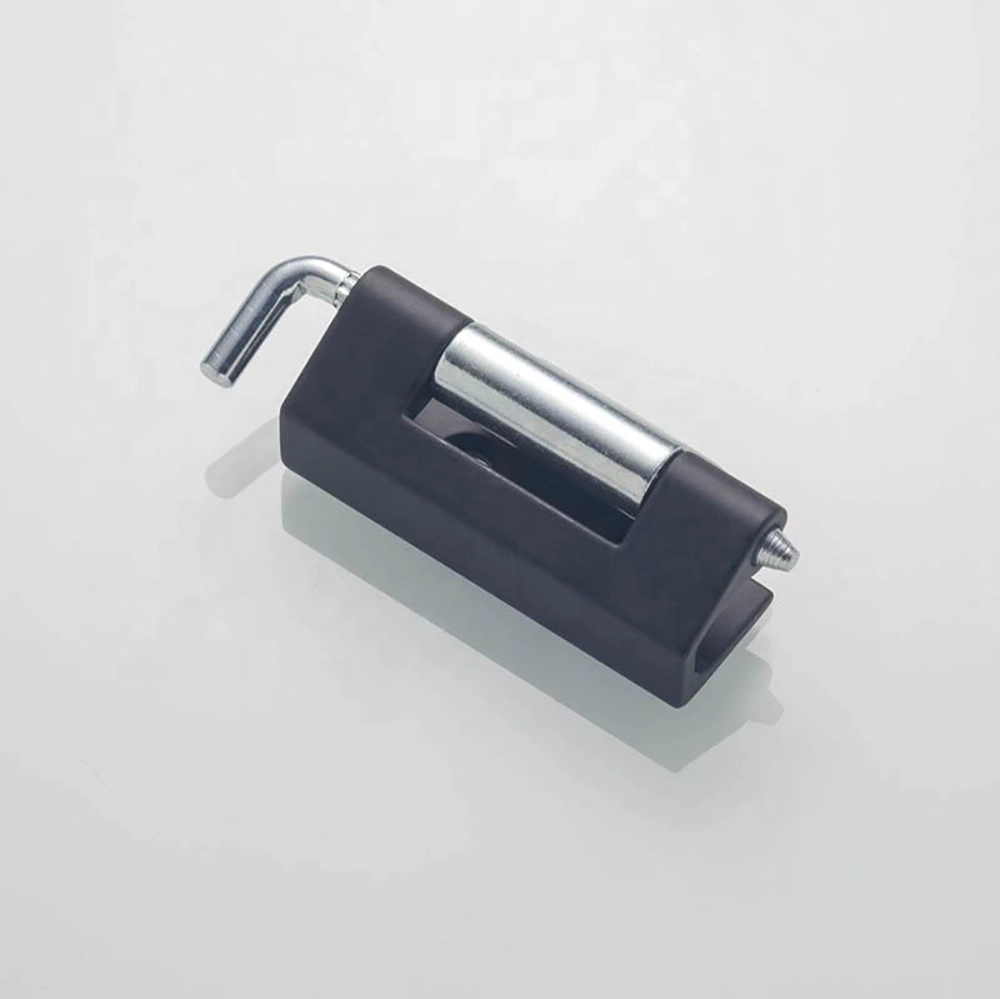

Hengzhu HL036-1.3 concealed cabinet hinge features a recessed design for a clean and aesthetic appearance. The hinge body is made of die-cast zinc with black powder coating and nickel plating, providing excellent corrosion resistance. The hinge pin is made of stainless steel, ensuring smooth operation and long service life. The product complies with RoHS standards, making it safe and environmentally friendly.



2. Technical Specifications

Model: HL036-1.3

Brand Hengzhu

Origin China

Hinge type Concealed hinge, screw mounting

Body material Die-cast zinc, black powder coated, nickel plated

Pin material Stainless steel

Max width 17.5 mm

Max height 48 mm

Max depth 17.8 mm

Standard RoHS



3. Practical Applications

Electrical cabinet doors

Control panels and distribution cabinets

Industrial enclosures requiring high aesthetics

Metal and technical cabinets



4. Instructions for Use

Mark the mounting positions on the cabinet door and frame

Drill holes and prepare recess according to hinge size

Fix the hinge using suitable screws

Check door alignment and smooth operation

Tighten all screws securely
