3. Practical Applications:

• Leak Detection: Assists technicians in quickly identifying leak points in the cooling system.
• Maintenance and Repair: Used in auto repair shops or service centers to inspect and maintain the cooling efficiency of FIAT 500e vehicles.
• Optimize Cooling Performance: Ensures the cooling system operates efficiently, promoting smooth vehicle operation and extending engine life.
• Versatile Use: Can be combined with other JTC pressure testing devices to inspect various vehicle models when paired with the appropriate adaptor.

4. How to Use:

1. Prepare the Equipment:

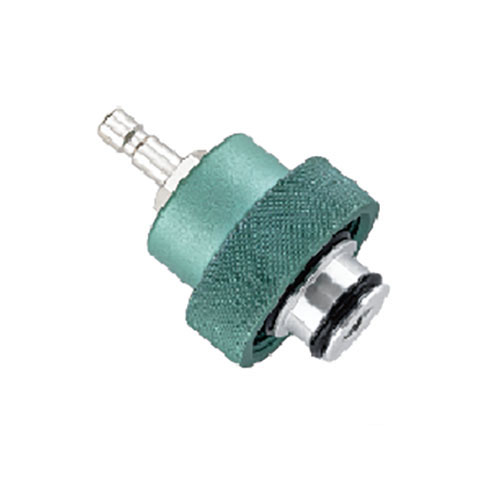

   • Connect the JTC-1528-28 adaptor to the radiator cap of the FIAT 500e.
   • Attach the other end to a compatible pressure testing kit (JTC-1005, JTC-1528, JTC-1414, or JTC-4842A).
2. Perform Pressure Testing:
   • Increase pressure in the cooling system using the pump on the testing kit.
   • Observe the pressure gauge for any drop, which indicates a leak.
3. Detect Leaks:
   • Identify the leak location by inspecting joints, hoses, or the radiator body.
4. Finish Testing:
   • Disconnect the device and release any remaining pressure in the system before removing the adaptor.
   • Clean the adaptor and store it in a dry place for future use.
