JTC-6239 Ball Joint Separator - Air Hammer Nut Set

1. Key Features:

• Specialized Design: Designed to screw on the ball joint with separator nuts, enabling easy and quick separation using an air hammer.
• Flexible Head Tilt: The head can tilt 30°, providing additional working space in tight environments.
• Comprehensive Set: Includes multiple nut sizes to accommodate various types of ball joints.
• Durable Construction: Made of high-quality materials, ensuring long-lasting performance and durability.
• Compatibility: Must be used with JTC-3309 or JTC-3310 for optimal performance.

2. Technical Specifications:

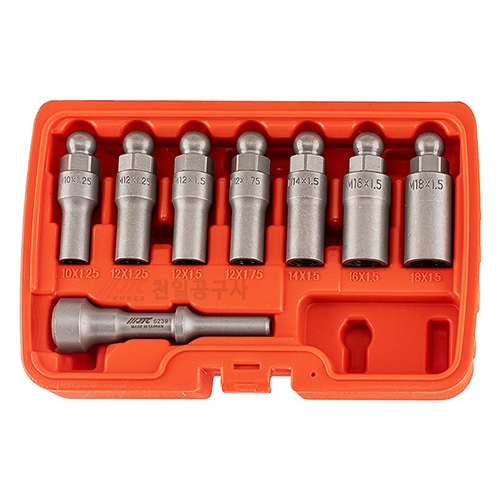

• Set Contents:
  • M10 x 1.25,
  • M12 x 1.25,
  • M12 x 1.5,
  • M12 x 1.75,
  • M14 x 1.5,
  • M16 x 1.5,
  • M18 x 1.5,
  • 1 hammer punch.
• Usage Requirement: Compatible with air hammers JTC-3309 or JTC-3310.

3. Practical Applications:

• Auto Repair Shops: Used to separate ball joints during suspension or steering system maintenance.
• Authorized Service Centers: Essential for handling ball joints with precision and speed.
• Mobile Repair Services: Compact design, easy to carry, suitable for technicians on the move.

4. Instructions for Use:

1. Preparation: Select the correct nut size matching the ball joint to be separated.
2. Installation: Attach the separator nut to the ball joint and properly connect the air hammer.

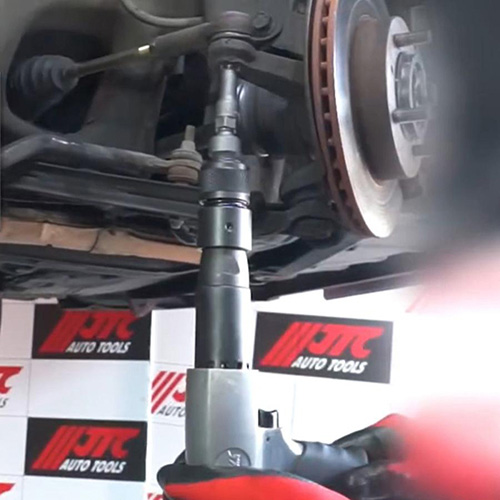

3. Operation: Use the air hammer to apply force, safely separating the ball joint without damaging surrounding parts.
4. Inspection: After completion, check the system to ensure no components are affected.
5. Storage: Clean the tools and store them in a dry place to maintain their durability.
