JTC-6247 Front & Rear Cover Oil Pan Alignment Tool Kit for GM LS Series Engines with 4.8, 5.3, 5.7, 6.0L Displacement.

1. Key Features

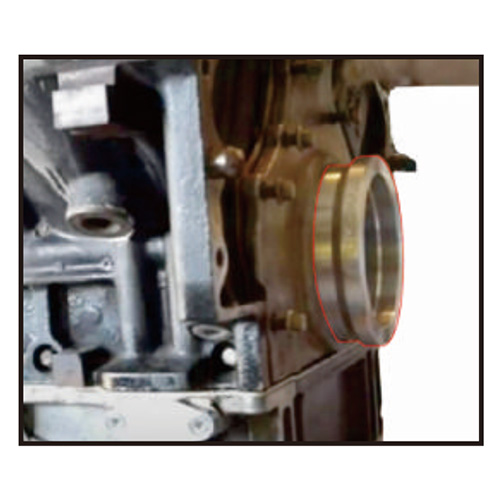

• Specially designed to align the front and rear engine covers, ensuring proper installation of the oil seal.
• Made from high-quality materials for durability and long-lasting performance.
• Reduces the risk of engine oil leaks caused by improper installation.
• Easy to use, suitable for professional repair centers and individual use.

2. Specifications

• Special design: For aligning the front and rear engine covers.
• Application: GM LS series engines with 4.8L, 5.3L, 5.7L, 6.0L displacement.
• Engine codes: LS1, LS2, LS3, LS4, LS6, LS7, L99, LS4, LS9, LSA, LQ4, LQ9, L76, L92.

3. Practical Applications

• Used for precise alignment and installation of the front and rear oil covers on GM LS series engines.
• Supports quick and efficient engine maintenance and repair, reducing the risk of damage.
• Widely used in automotive garages and professional maintenance centers.

4. Instructions for Use

1. Identify the alignment points on the engine.

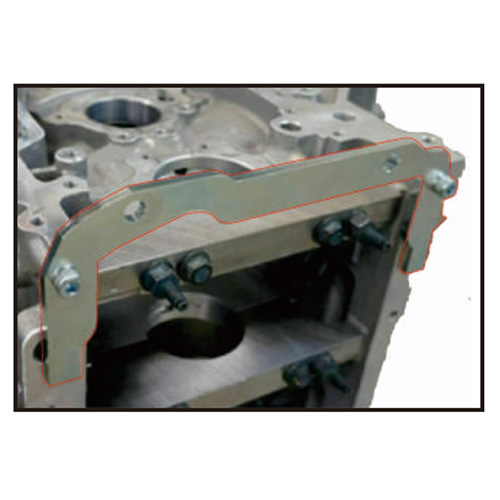

2. Install the JTC-6247 tool onto the front and rear oil covers of the engine.
3. Proceed with alignment and tighten the bolts according to the user manual.
4. Verify the seal and alignment accuracy of the oil covers after completing the process.
