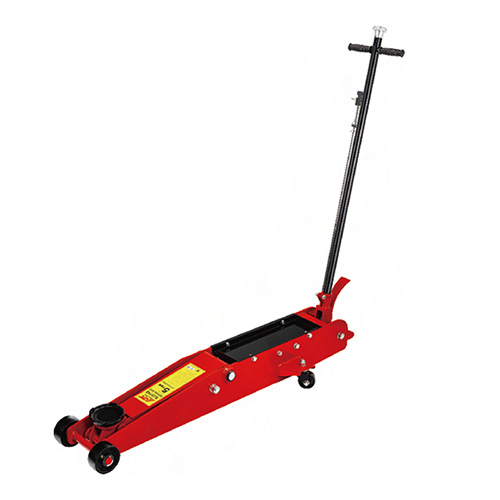

JTC-SJ1015 10T Long Type Service Jack
The JTC-SJ1015 10T Long Type Service Jack is designed for heavy-duty use in truck, bus, and industrial vehicle maintenance.
Its long, reinforced steel chassis ensures maximum stability and strength during lifting operations.
Equipped with a high-performance hydraulic system that provides smooth, powerful lifting and long service life.
Features anti-corrosion coating and heavy-duty wheels for easy mobility in workshop environments.
2. Technical Specifications
-
Model: JTC-SJ1015
-
Type: 10T Long Type Service Jack
-
Capacity: 10 tons
-
Weight: 133 kg
-

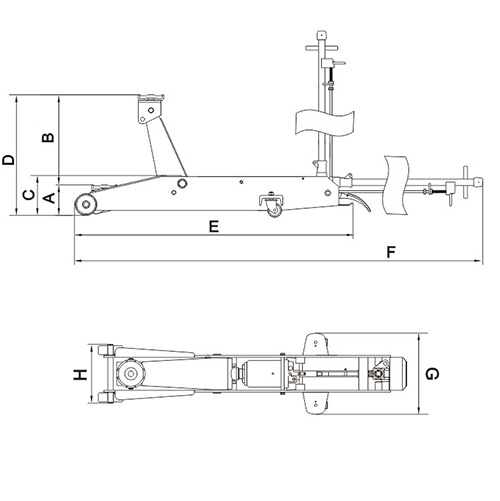

Dimensions:
-
A: 160 mm
-
B: 525 mm
-
C: 240 mm
-
D: 685 mm
-
E: 1535 mm
-
F: 2690 mm
-
G: 480 mm
-
H: 330 mm
-
3. Practical Applications
Ideal for truck workshops, heavy vehicle maintenance, and construction equipment repair.
Used for lifting chassis, replacing tires, brake repair, and suspension maintenance.
Perfect for industrial and commercial heavy-lift operations requiring high strength and reliability.
4. How to Use
Position the jack under a safe lifting point beneath the vehicle.
Ensure the ground is level and the wheels are chocked.
Pump the handle to raise the vehicle to the desired height.
After use, release the valve slowly to lower the vehicle safely.
