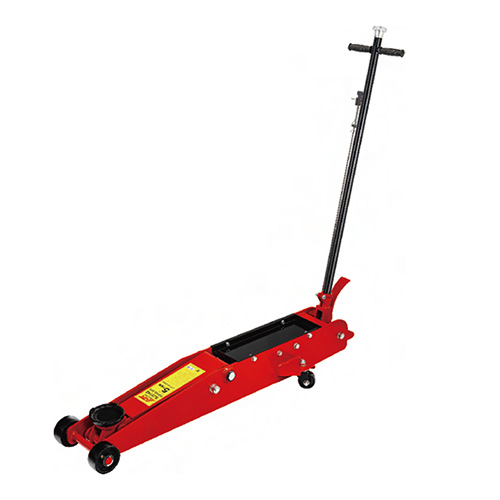

JTC-SJ5142 5T Long Type Service Jack

1. Key Features
The JTC-SJ5142 5T Long Type Service Jack is designed for heavy-duty applications in truck, bus, and industrial vehicle workshops.
The extended body design provides greater reach and stability, making it ideal for lifting at deep or hard-to-reach points.
Equipped with a high-efficiency hydraulic system that ensures smooth and powerful lifting.
Features durable steel construction with an anti-corrosion coating and smooth-rolling wheels for easy maneuverability.

2. Technical Specifications

• Model: JTC-SJ5142

• Type: 5T Long Type Service Jack

• Capacity: 5 tons

• Weight: 90 kg

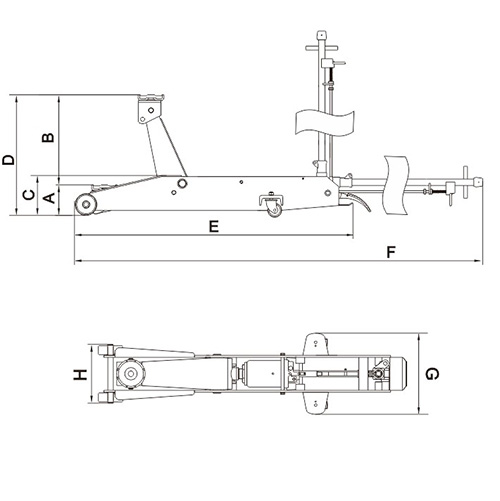

• Dimensions:

  • A: 150 mm

  • B: 535 mm

  • C: 190 mm

  • D: 685 mm

  • E: 1420 mm

  • F: 2575 mm

  • G: 360 mm

  • H: 290 mm

3. Practical Applications
Ideal for automotive workshops, truck maintenance centers, and heavy-duty repairs.
Used for lifting vehicle chassis, tire replacement, brake repair, and drivetrain service.
Perfect for operations requiring long reach and high lifting stability.

4. How to Use
Position the jack under the vehicle’s lifting point.
Ensure the surface is level and the handbrake is engaged.
Pump the handle to raise the load to the desired height.
After finishing, slowly release the valve to lower the vehicle safely.
