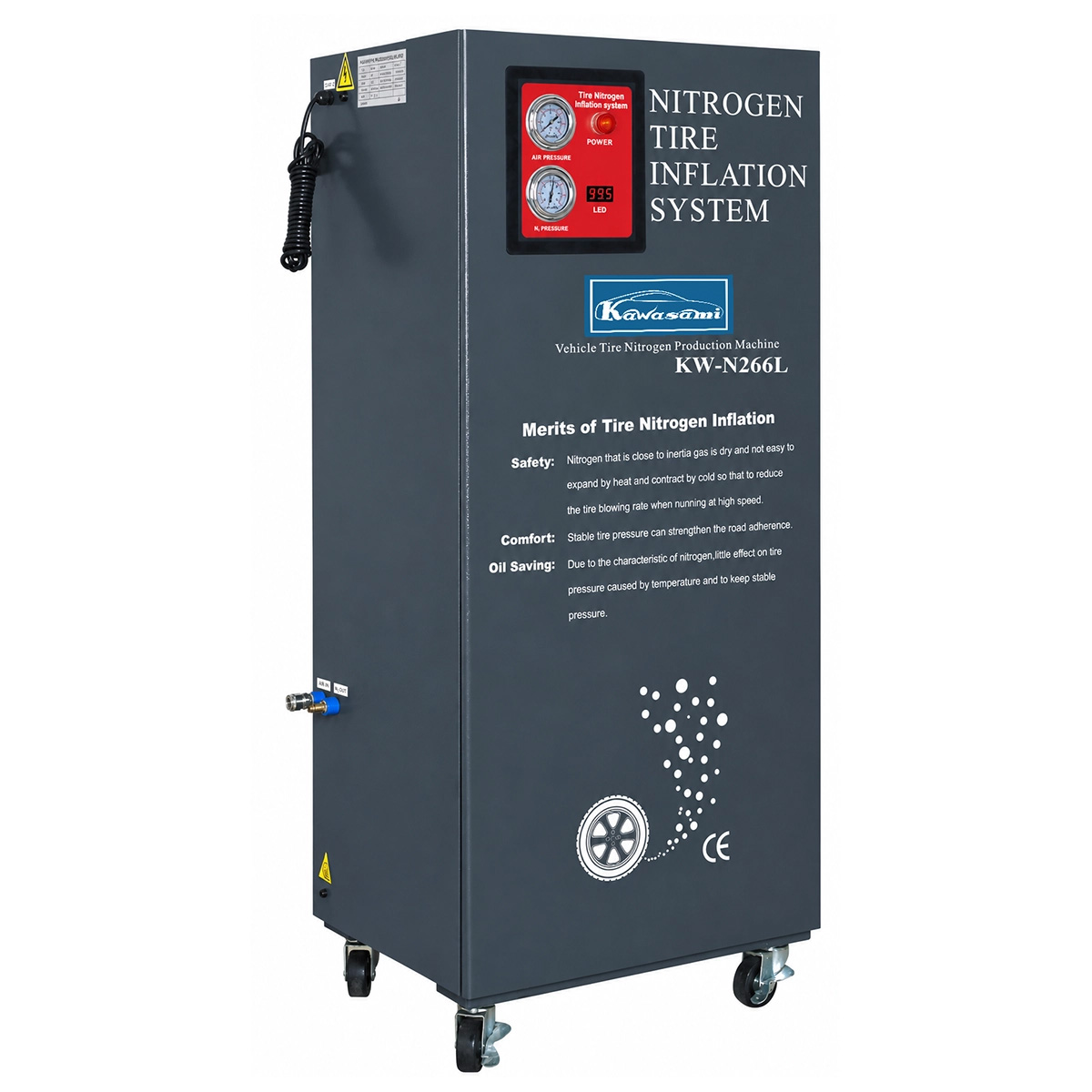

Kawasami KW-N266L Nitrogen Tire Inflation System
1. Key Features
- KW-N266L is a professional nitrogen tire inflation machine designed for motorcycles and passenger cars with a built-in 70-liter nitrogen storage tank.
- Uses a BF-220# high-efficiency carbon molecular sieve to generate nitrogen with 95–99.5% purity.
- Nitrogen output flow rate reaches 66 L/min, suitable for continuous tire inflation in automotive workshops.
- Integrated 70-liter N₂ storage tank provides stable nitrogen pressure and continuous operation.
- Equipped with a high-precision compressed air filtration system to remove moisture, oil and impurities.
- Automatically adjusts compressed air inlet pressure for stable performance.
- Standard configuration includes a portable vacuum extraction device for removing air from tires before nitrogen inflation.
- Cabinet-style design with heavy-duty caster wheels for easy movement around the workshop.
- Dual pressure gauges display compressed air pressure and nitrogen pressure during operation.
- Suitable for automotive workshops, tire service centers and professional nitrogen tire inflation stations.
2. Technical Specifications
Model: KW-N266L
Brand: Kawasami
Origin: China
Applicable Vehicles: Motorcycles and passenger cars.
Power Supply: 220V / 50Hz.
Power Consumption: 40W.
Nitrogen Purity: 95–99.5%.
Compressed Air Inlet Pressure: 8–10 bar (116–145 psi).
Nitrogen Output Flow Rate: 66 L/min.
Nitrogen Tank Capacity: 70 liters (18.5 gal).
Nitrogen Output Pressure: 4–7 kg/cm² (58–100 psi), maximum ≤101 psi (7 bar).
Net Weight: 89 kg.
Gross Weight: 107 kg.
Molecular Sieve: BF-220# carbon molecular sieve.
Air Filtration System: High-precision compressed air filter.
Standard Equipment: Portable vacuum extraction device.
3. Practical Applications
Producing and inflating nitrogen for motorcycle and passenger car tires.
Suitable for automotive repair workshops, tire shops and detailing centers.
Helps provide stable nitrogen pressure for tire inflation services.
Suitable for continuous nitrogen inflation operations in professional service centers.
Removes air from tires before nitrogen filling using the built-in vacuum device.
Ideal for automotive dealerships and vehicle maintenance centers.
4. How to Use
Connect the machine to a 220V/50Hz power supply and 8–10 bar compressed air source.
Check the inlet air pressure using the pressure gauge.
Use the portable vacuum device to remove air from the tire before nitrogen inflation.
Connect the nitrogen hose to the tire valve.
Adjust the nitrogen output pressure according to the vehicle manufacturer's recommendation.
Inflate the tire while monitoring the pressure gauges.
Disconnect the hose, shut off the air supply and turn off the machine after use.
