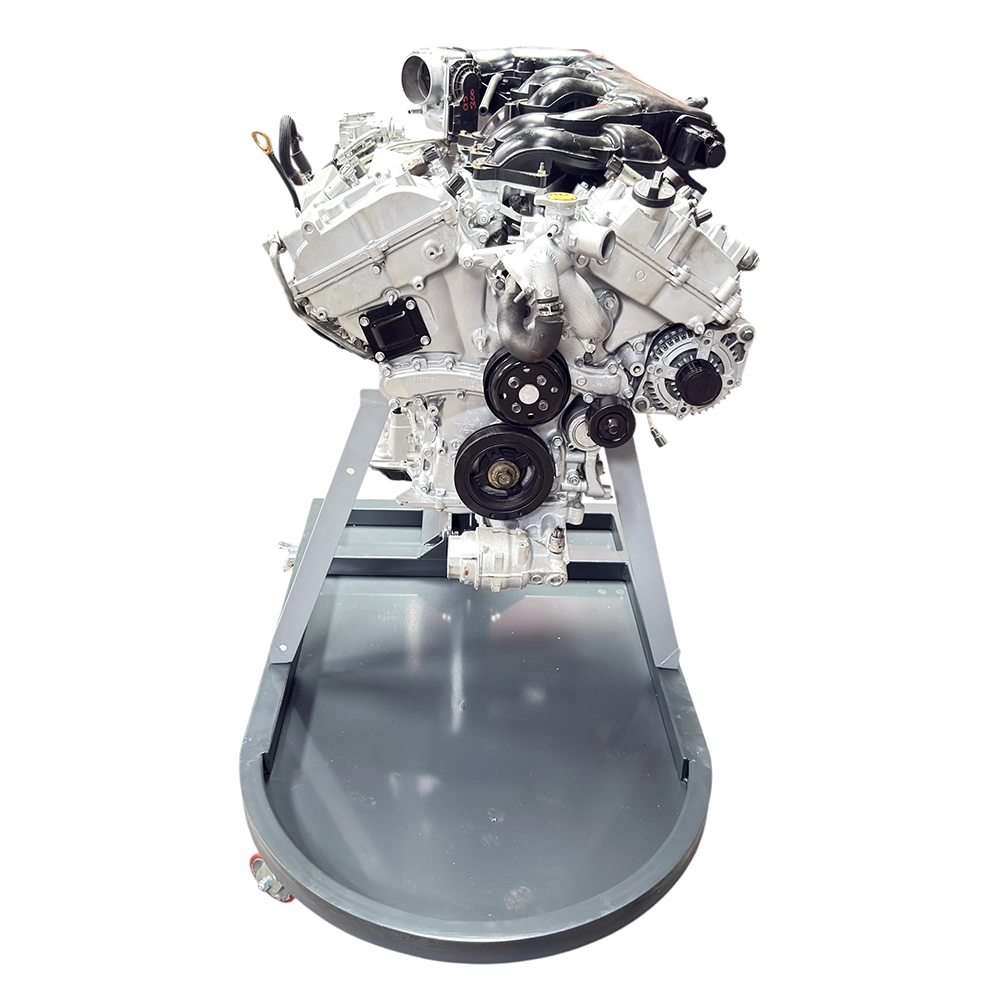

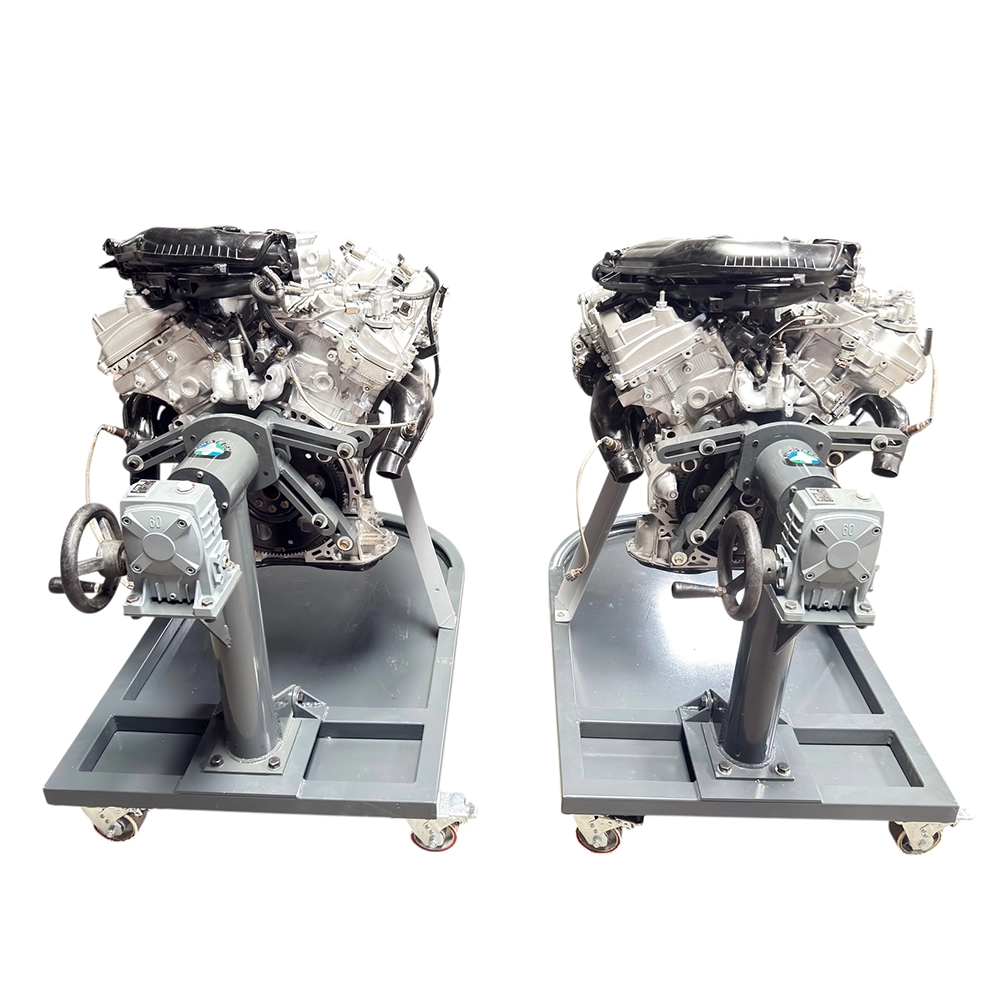

Kingtech K090116 Automotive Engine Training Model



The Kingtech K090116 Automotive Engine Training Model is designed for automotive education, vocational training, and hands-on technical practice. It integrates major engine systems and is mounted on a rotatable stand operated by a screw mechanism, allowing trainees to conveniently observe engine components and practice assembly and disassembly.

3000cc Engine Model: Suitable for automotive engine training and technical practice.

Integrated Engine Systems: Includes the charging system, starting system, air-conditioning compressor, fuel system, cooling system, lubrication system, intake system, exhaust system, engine block, and related components.

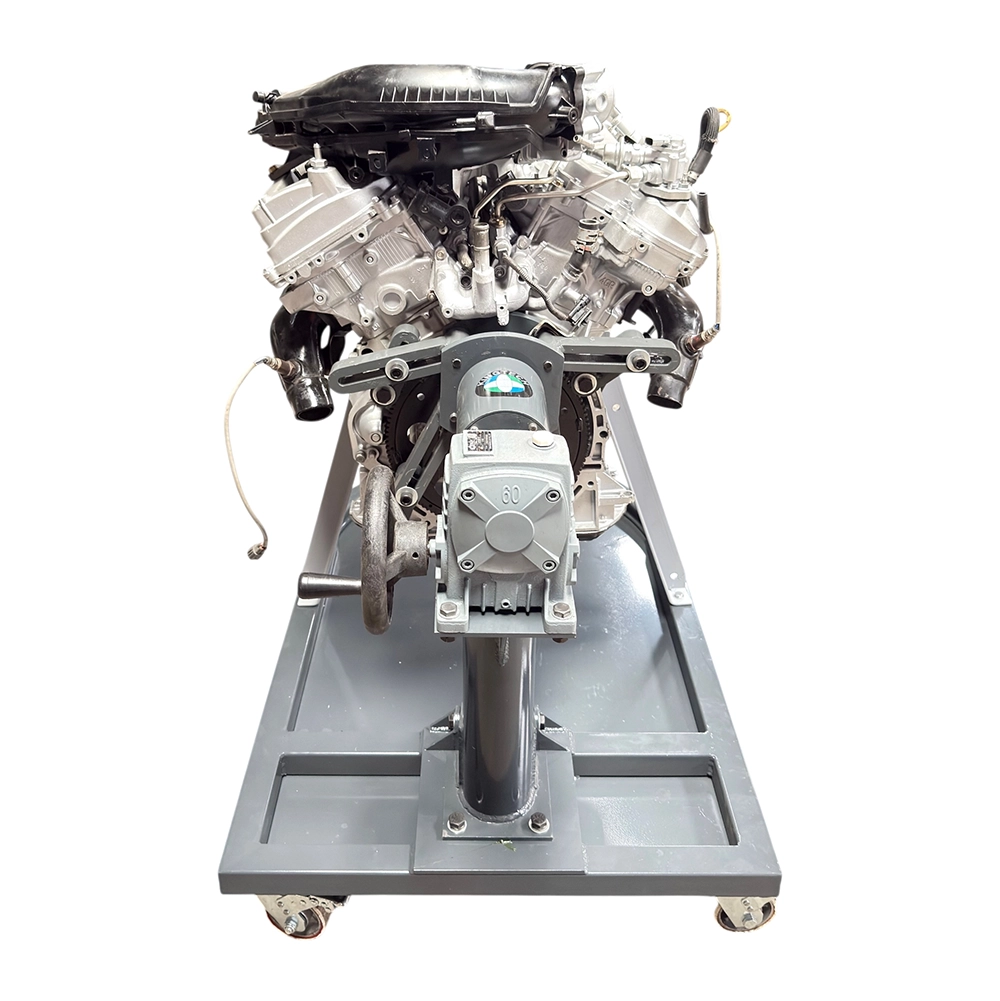

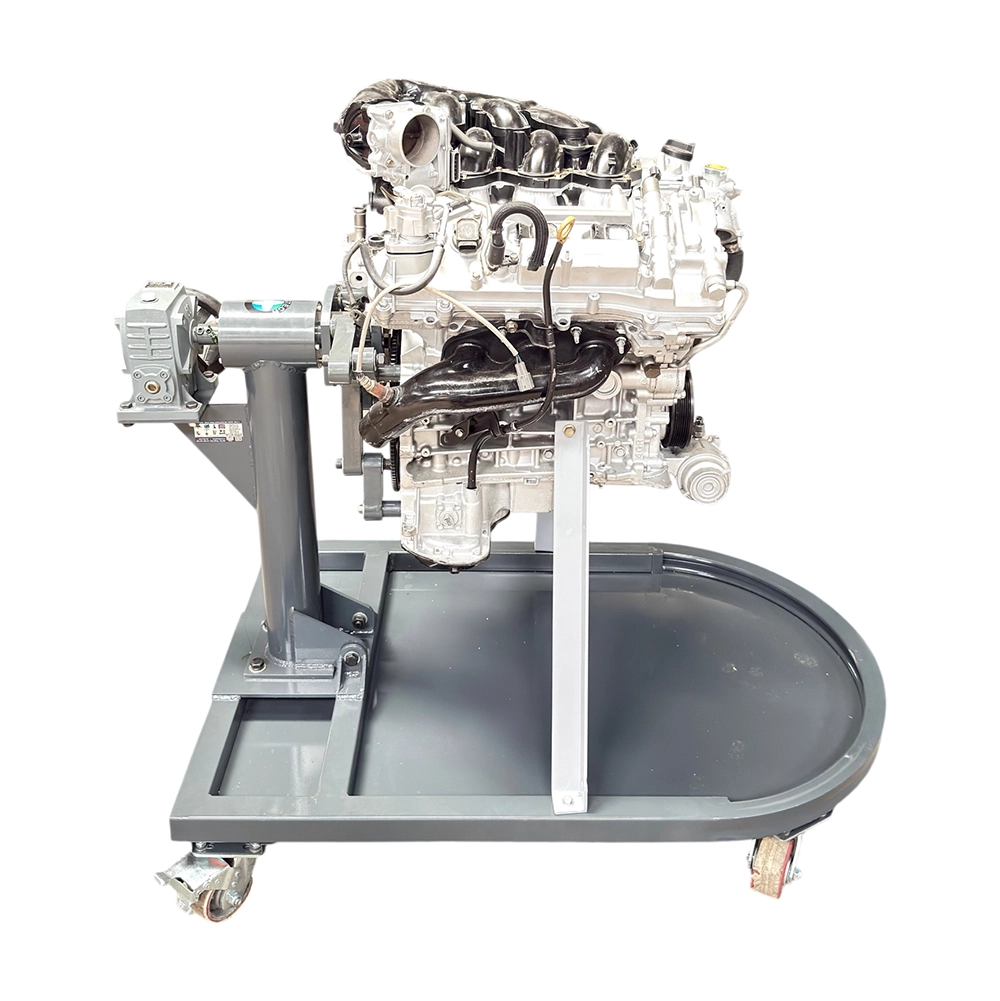

Convenient Rotating Stand: The screw mechanism allows the engine model to be rotated for easier access to different areas during inspection and disassembly practice.

Durable Stand Structure: The model is mounted on a stand with a cleaned and painted surface.

Easy Mobility: Equipped with four wheels for convenient movement and positioning in training rooms or workshops.

Practical Training Design: Helps students identify engine components, understand system layouts, and learn how different engine systems are arranged.





Model: K090116

Brand: Kingtech

Country of Origin: Vietnam

Equipment Type: Automotive Engine Training Model

Engine Displacement: 3000 cc

Integrated Systems and Components:

Charging system

Starting system

Air-conditioning compressor

Fuel system

Cooling system

Lubrication system

Air intake system

Exhaust system

Engine block and related components

Mounting Structure: Stand equipped with a screw mechanism for rotating the model

Wheels: 4 wheels for mobility

Stand Finish: Cleaned and painted surface



3. Practical Applications

The Kingtech K090116 Automotive Engine Training Model is suitable for educational institutions and automotive technical training facilities, including:

Universities, colleges, and vocational automotive training centers.

Internal combustion engine and auxiliary engine system training rooms.

Training programs for automotive engine maintenance and repair technicians.

Teaching students to identify engine components and locate different engine systems.

Practical exercises involving the inspection and disassembly of components related to the fuel, cooling, lubrication, intake, and exhaust systems.

Training on the operation and layout of the starting system, charging system, and air-conditioning compressor.

Demonstrations that help instructors explain engine construction and system relationships in a visual, hands-on manner.



Step 1: Pre-Training Inspection

Position the model on a flat, stable surface. Check the stability of the stand and the condition of all four wheels. Ensure that the model is safely positioned before starting the training session.



Step 2: Inspect the Complete Model

The instructor introduces the engine block and the integrated systems, including the starting system, charging system, fuel system, cooling system, lubrication system, intake system, exhaust system, and air-conditioning compressor.



Step 3: Rotate the Model for Inspection

Operate the screw mechanism according to the supplier's instructions to rotate the model into a convenient working position. Move it slowly and keep hands and tools clear of potential pinch points between the engine and the stand.



Step 4: Practice Component Identification and Disassembly

Students identify engine components and practice assembly and disassembly according to the training curriculum under the instructor's supervision. Use appropriate tools and follow all relevant safety procedures.



Step 5: Inspection and Storage After Use

After the training session, check that all components have been correctly reinstalled, collect the tools, and clean the model. Return it to a safe storage position and avoid impacts or actions that could destabilize the stand.
