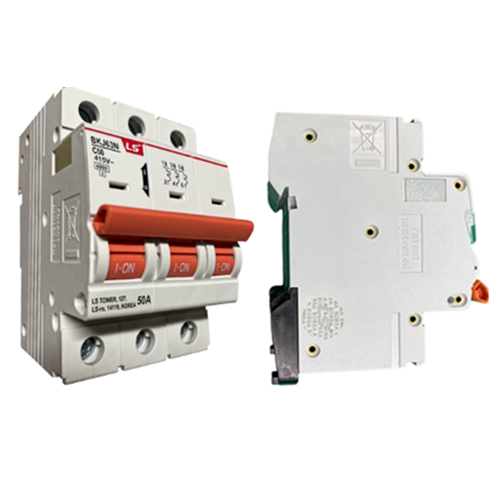

LS-BKJ63N3P 3P 50A 6kA MCB Circuit Breaker

1. Key Features

• LS BKJ63N 3P 50A is a high-quality miniature circuit breaker.

• 3-pole design suitable for 3-phase power systems.

• Rated current: 50A for effective circuit protection.

• Short-circuit breaking capacity: 6kA for safety.

• Compact size, easy to install in electrical panels.

• Complies with IEC 60947-2 and IEC/EN 60898-1 standards.

2. Technical Specifications

• Model: BKJ63N 3P 50A

• Series: MCB BKJ

• Poles: 3P

• Frame size: 63AF

• Rated current: 50A

• Short-circuit capacity: 6kA

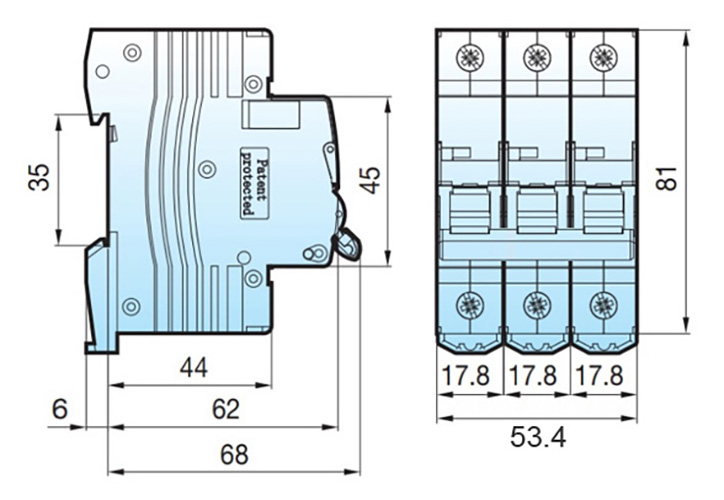

• Dimensions: 74 x 81 x 53.4 mm

• Function: Overload and short-circuit protection

• Application: Residential and industrial systems

• Standards: IEC 60947-2, IEC/EN 60898-1

• Brand: LS

• Warranty: 12 months

3. Applications

• Used in 3-phase residential electrical networks.

• Applied in industrial systems with high safety requirements.

• Installed in distribution boards for control and protection.

• Protects circuits against overload and short circuit.

4. How to Use

• Mount on DIN rail inside the electrical panel.

• Connect power supply to Line terminal and load to Load terminal.

• Tighten contacts to avoid overheating.

• Switch ON for operation, OFF for shutdown or maintenance.

• Regular inspections recommended for reliable performance.
