Price: Call

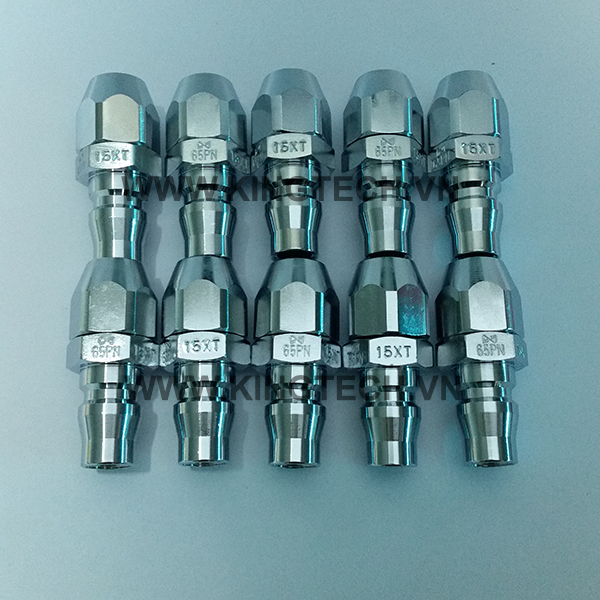

NUT CUPLA 65PN STEEL
No hose clamp required!
-Nut types are available in Hi Cupla Series.
-To mount on hose, simply slide it over the nipple and tighten the nut.
-The design to tighten outside of hose reduces hose slip away or fluid leaks.
-An excellent general purpose coupling for connecting factory air supply
to pneumatictools.
-Steel coupling is suitable for air.
-Steel models are heat-treated for increased strength
giving greater durability and resistance to wear.
Basic information:
Model name: 65PN STEEL
Product code: 04111
Product No: CA80045
JAN code: 4992338041113
Group name: Quick Connect Couplings CUPLA
Subgroup name: For Low Pressure Air (One-way shut-off)
Specification:
Series Name: Hi Cupla steel 10/17/20/30/40 Type
Applicable Fluid: Air
Shape: Plug (Male)
Body Material: Steel
Valve Structure: without valve
Characteristic: Standard type
Working Pressure: 0 ~ 1.5 MPa
End Configuration: Nut for connection to urethane hose
Size of End Configuration: 6.5 mm I.D. x 10 mm O.D.
Working Temperature: -20 ~ 60 ℃



No hose clamp required!
-Nut types are available in Hi Cupla Series.
-To mount on hose, simply slide it over the nipple and tighten the nut.
-The design to tighten outside of hose reduces hose slip away or fluid leaks.
-An excellent general purpose coupling for connecting factory air supply
to pneumatictools.
-Steel coupling is suitable for air.
-Steel models are heat-treated for increased strength
giving greater durability and resistance to wear.
Basic information:
Model name: 65PN STEEL
Product code: 04111
Product No: CA80045
JAN code: 4992338041113
Group name: Quick Connect Couplings CUPLA
Subgroup name: For Low Pressure Air (One-way shut-off)
Specification:
Series Name: Hi Cupla steel 10/17/20/30/40 Type
Applicable Fluid: Air
Shape: Plug (Male)
Body Material: Steel
Valve Structure: without valve
Characteristic: Standard type
Working Pressure: 0 ~ 1.5 MPa
End Configuration: Nut for connection to urethane hose
Size of End Configuration: 6.5 mm I.D. x 10 mm O.D.
Working Temperature: -20 ~ 60 ℃
