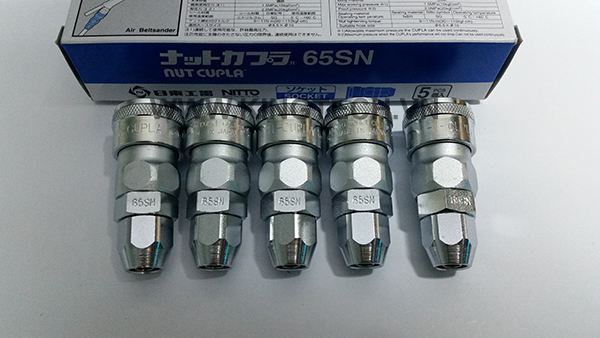

Nitto 65SN Air Quick Coupler

NUT CUPLA  65SN STEEL NBR

Basic information:
Model name: 65SN STEEL NBR
Product code: 04113
Product No: CA82053
JAN code: 4992338041137
Group name: Quick Connect Couplings CUPLA
Subgroup name: For Low Pressure Air (One-way shut-off)

Specification:
Series Name: Nut Cupla steel
Applicable Fluid: Air
Shape: Socket (Female)
Body Material: Steel
Seal Material: Nitrile rubber
Valve Structure: without valve
Characteristic: Standard type
Working Pressure:      0 ～ 1.5 MPa
End Configuration: Nut for connection to urethane hose
Size of End Configuration: 6.5 mm I.D. x 10 mm O.D.
Working Temperature: -20 ～ 80 ℃
