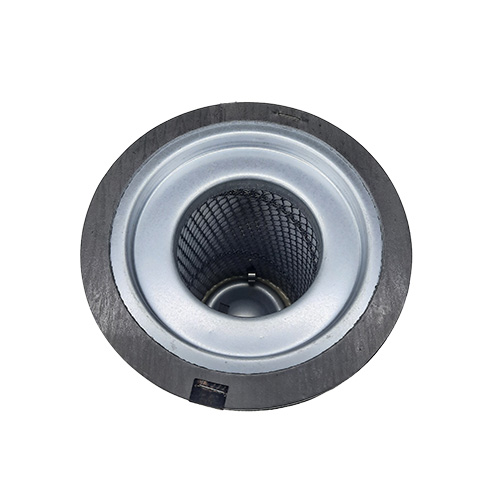

Oil Separator Filter OS30L for Zelus ZEL-30A Air Compressor

1. Key Features

• OS30L oil separator for Zelus ZEL-30A screw air compressors.

• High oil separation efficiency (<3 ppm residual oil) for cleaner air.

• Larger than OS20L, suitable for higher capacity compressors.

• Multi-layer filter media for durability and long service life.

• Precision design ensures perfect fit, easy installation.

2. Specifications

• Model: OS30L

• Brand: Zelus

• Origin: China

• Application: ZEL-30A screw air compressor

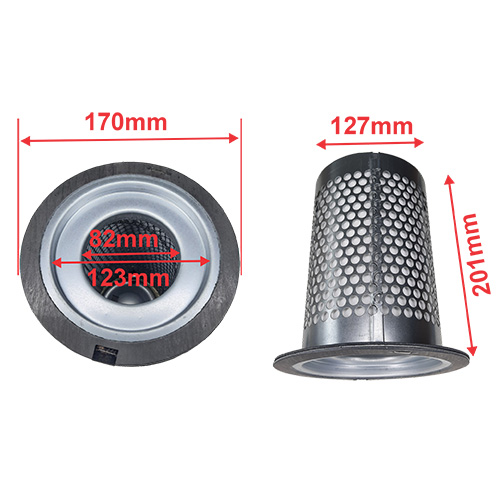

• Outer Diameter: 170 mm

• Inner Diameter: 82 mm

• Top Opening Diameter: 123 mm

• Bottom Diameter: 127 mm

• Height: 201 mm

3. Applications

• Used in ZEL-30A and similar screw compressors.

• Reduces oil carryover, protects pneumatic tools.

• Minimizes maintenance cost and downtime.

4. How to Use

• Turn off power, release air pressure.

• Remove old separator, clean the mounting surface.

• Install OS30L, tighten to proper torque.

• Restart compressor, check for leaks before full operation.
