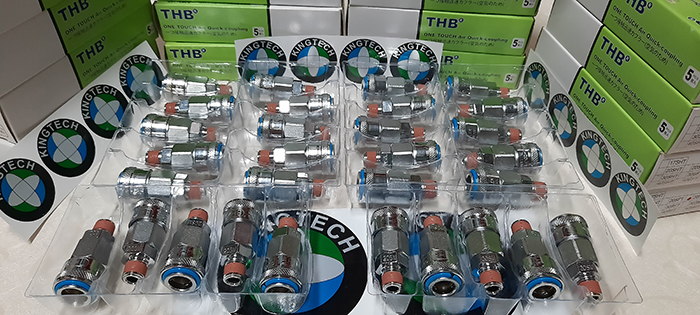

AIR QUICK COUPLING

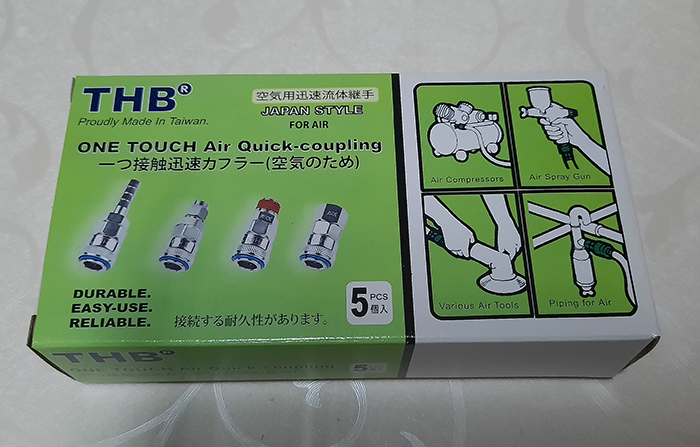

JAPANESE STYLE – ONE TOUCH COUPLER / Male thread
Air Quick Coupler / Quick Disconnect Coupling / Quick Disconnector / Quick Connect / Quick Release Coupler (QRC) / Air Quick Coupling / Air Connectors & fitting / Quick coupling / Pneumatic couplings
|

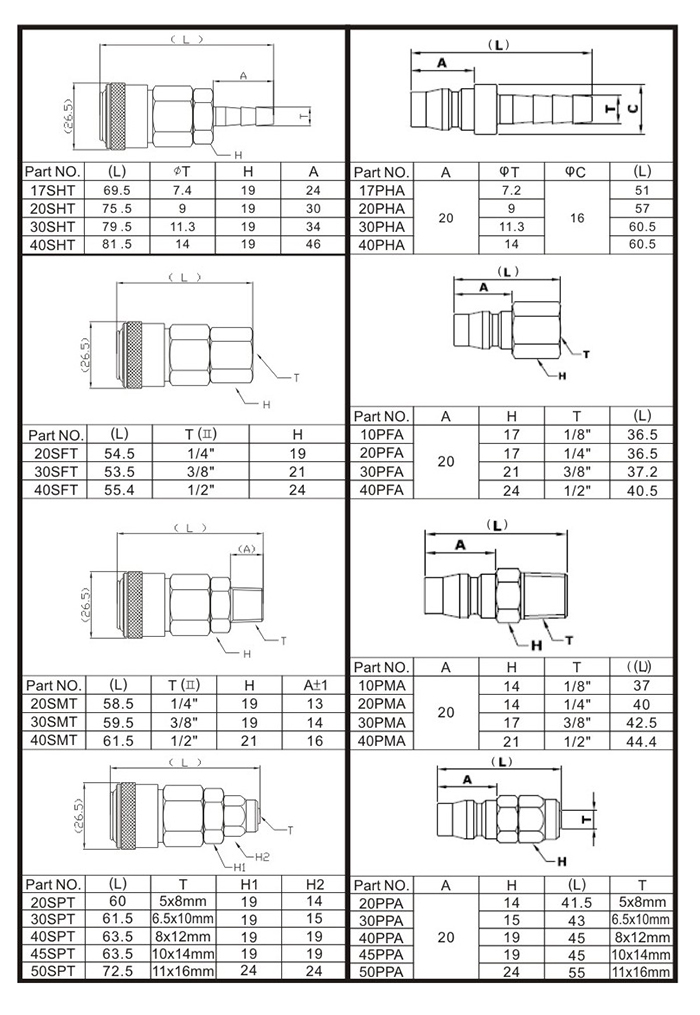

Part No. |
Size |
|
20SMT |
1/4"PT |
|
30SMT |
3/8"PT |
|
40SMT |
1/2"PT |
FEATURES:
1. Improved operation.
2. Chrome plated steel body for anti-corrosion.
3. One-touch series couplers could be widely applied for male and female thread connections, hose connectors and manifolds.
APPLICATION:
1. Pneumatic tools
2. Air piping
3. Air pressure equipment

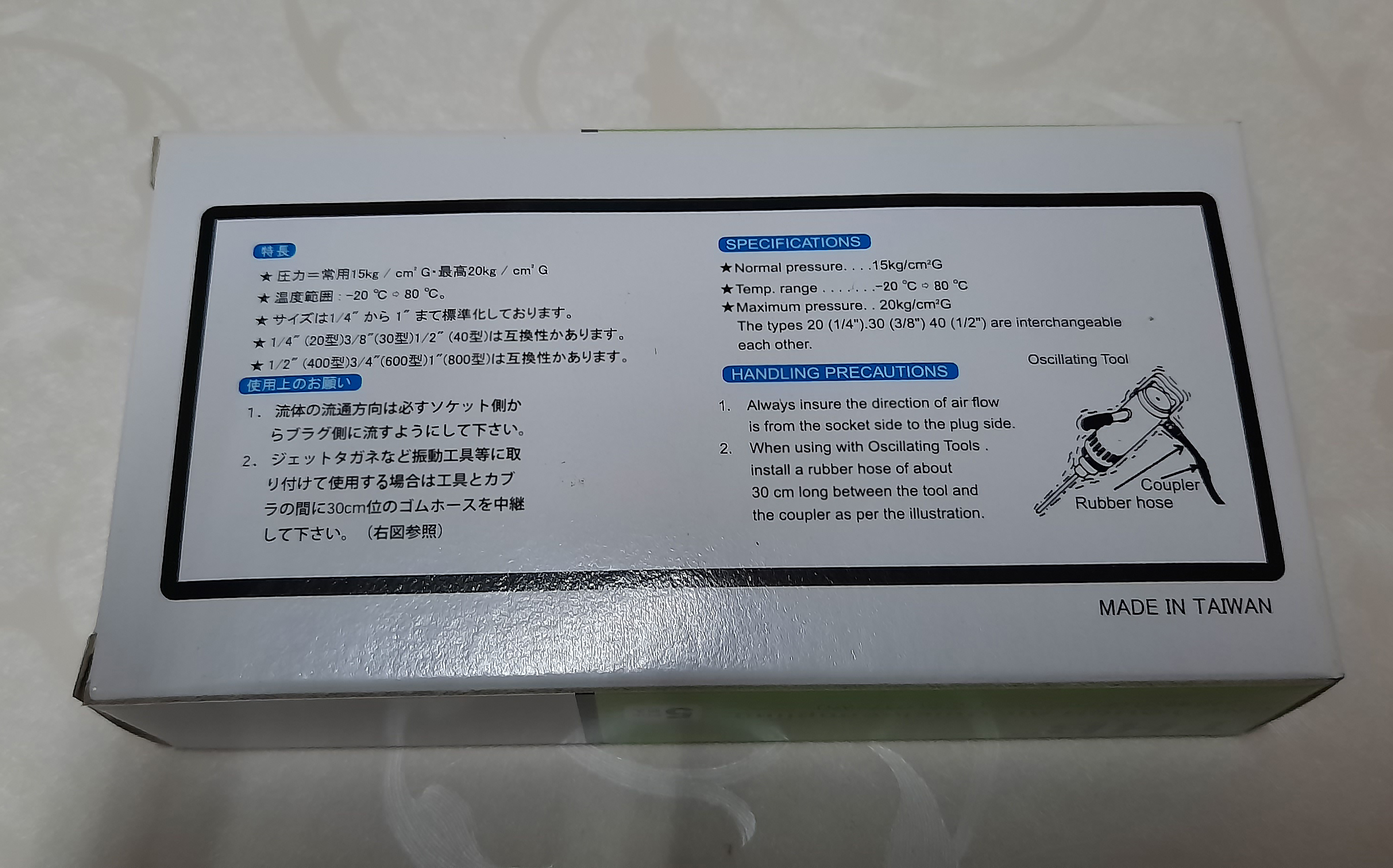

SPECIFICATION:
|
Material |
Steel |
|
Thread |
PT |
|
Working Pressure |
218PSI (15Bar/1.5MPa) |
|
Maximum Pressure |
290PSI(20Bar/2MPa) |
|
Temperature Range |
-20℃ ~ +80℃ |
|
Size |
1/4" (20Type) |
|
3/8" (30Type) |
|
|
1/2" (40Type) |
＊Meet The International Norms : JIS B 0203
