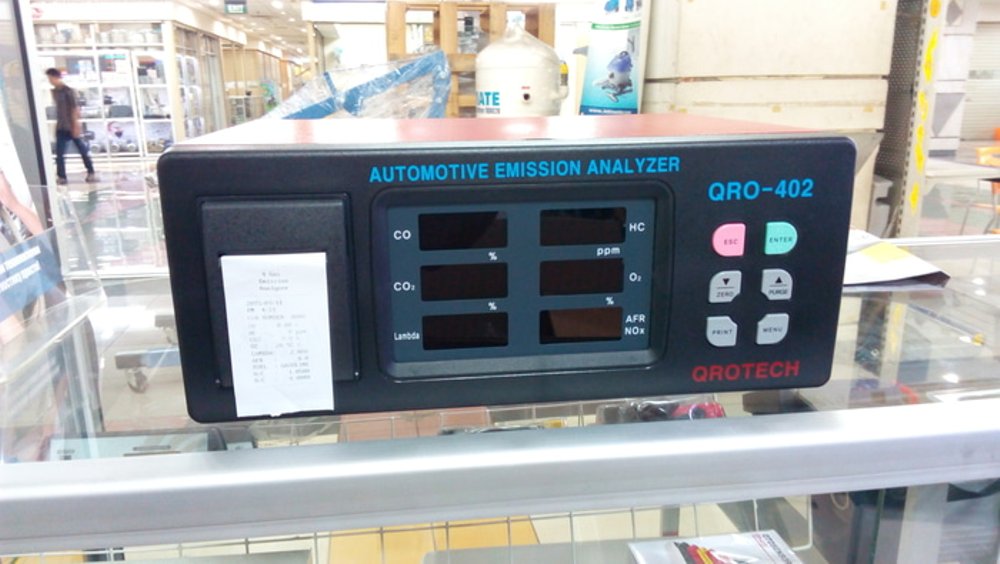

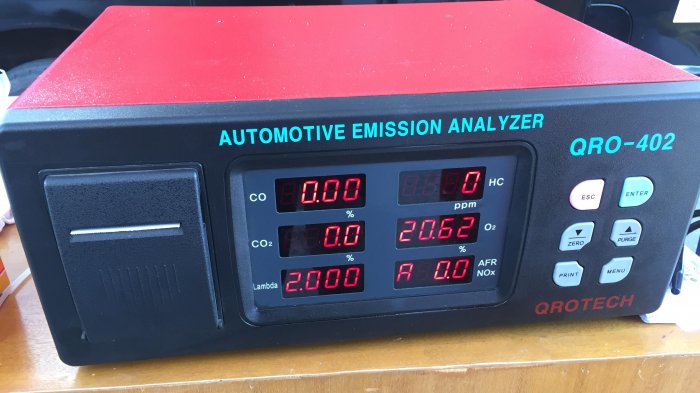

Gasoline Engine Exhaust Gas Analyzer Qrotech QRO-402 for Motorcycles
1. Key Features
- Analysis of 4 main exhaust gases: Measures CO, HC, CO₂, and O₂, with an optional NOx measurement, supporting the calculation of λ (air-fuel ratio) and AFR (air-to-fuel ratio).
- Advanced measurement technology: Utilizes Non-Dispersive Infrared (NDIR) for CO, HC, CO₂, and electrochemical sensors for O₂ and NOx.
- Fast response time: Results displayed within 10 seconds, optimizing testing efficiency.
- Compact and portable design: Lightweight and medium-sized, ideal for inspection centers or repair workshops.
- Compatibility with multiple fuels: Supports emissions testing for engines using gasoline, LPG, CNG, or alcohol-based fuels.
2. Technical Specifications
- Model: QRO-402
- Origin: Qrotech – Korea
- Features:
+ Automatic temperature adjustment (2 ~ 8 minutes)
+ Sleek design
+ Automatic drying function
+ Adjustment time: 2 ~ 8 minutes
- Measurement Capability:
+ Gases: CO, HC, CO₂, O₂, λ (Excess Air Ratio), AFR, NOx (optional)
- Measurement Methods:
+ CO, HC, CO₂: Non-Dispersive Infrared (NDIR) Analysis
+ O₂, NOx: Electrochemical Polarization
- Specifications:
CO:
+ Measurement range: 0.00 ~ 9.99%
+ Accuracy: 0.01%
HC:
+ Measurement range: 0 ~ 15000 ppm
+ Accuracy: 1 ppm
CO₂:
+ Measurement range: 0.0 ~ 20.0%
+ Accuracy: 0.1%
O₂:
+ Measurement range: 0.00 ~ 25.00%
+ Accuracy: 0.01%
AFR:
+ Measurement range: 0.0 ~ 99.0
+ Accuracy: 0.1
λ:
+ Measurement range: 0.0 ~ 2.000
+ Accuracy: 0.001
Repeatability: ±2%
Flow Rate: 4 ~ 6 L/min
Voltage: AC220V ±10%, 50/60Hz
Power Consumption: 50 W
Operating Temperature: 0℃ ~ 40℃
Additional Features: Includes sensors for measuring RPM and temperature.- Power supply: 110V or 220V AC, 50/60Hz
- Dimensions: 285 x 410 x 155 mm
- Weight: Approx. 4.5 kg
3. Practical Applications
- Motorcycle emission testing: Used in inspection centers to ensure motorcycles comply with environmental standards.
- Engine maintenance for motorcycles: Assists in diagnosing and adjusting engines to improve performance and reduce emissions.
- Exhaust gas research: Analyzes and develops solutions to reduce environmental pollution.
- Compliance with regulations: Meets exhaust gas inspection requirements under national standards.
4. How to Use
- Prepare the device:
+ Connect the analyzer to a 110V or 220V AC power source.
+ Allow the device to warm up for 2 to 8 minutes before operation.
- Conduct measurements:
+ Attach the gas sampling tube to the motorcycle’s exhaust pipe.
+ Start the motorcycle engine and let it run at a stable speed.
- Read the results:
+ Check the exhaust gas parameters displayed on the screen within 10 seconds.
+ Compare the results with emission standards for assessment.
- Store the device:
+ Turn off the device and disconnect it from the power source after use.
+ Clean the gas sampling tube and filters, and store the device in a dry and well-ventilated place.
Why Buy QRO-402 from KingTech.vn?
🔹 Genuine product from Qrotech-Korea– Guaranteed quality, directly imported.
🔹 12-month warranty – Fast technical support and professional repair services.
🔹 Nationwide shipping – Receive your order in 24-48 hours.
🔹 Best market price – Competitive pricing with attractive promotions.
📌 Contact Us Now:
🏢 Kingtech Engineering Corporation
📞 Hotline: 0944 755 799
🌍 Website: KingTech.vn
🚀 ORDER NOW to secure the best price and official warranty for the QRO-402🔥
