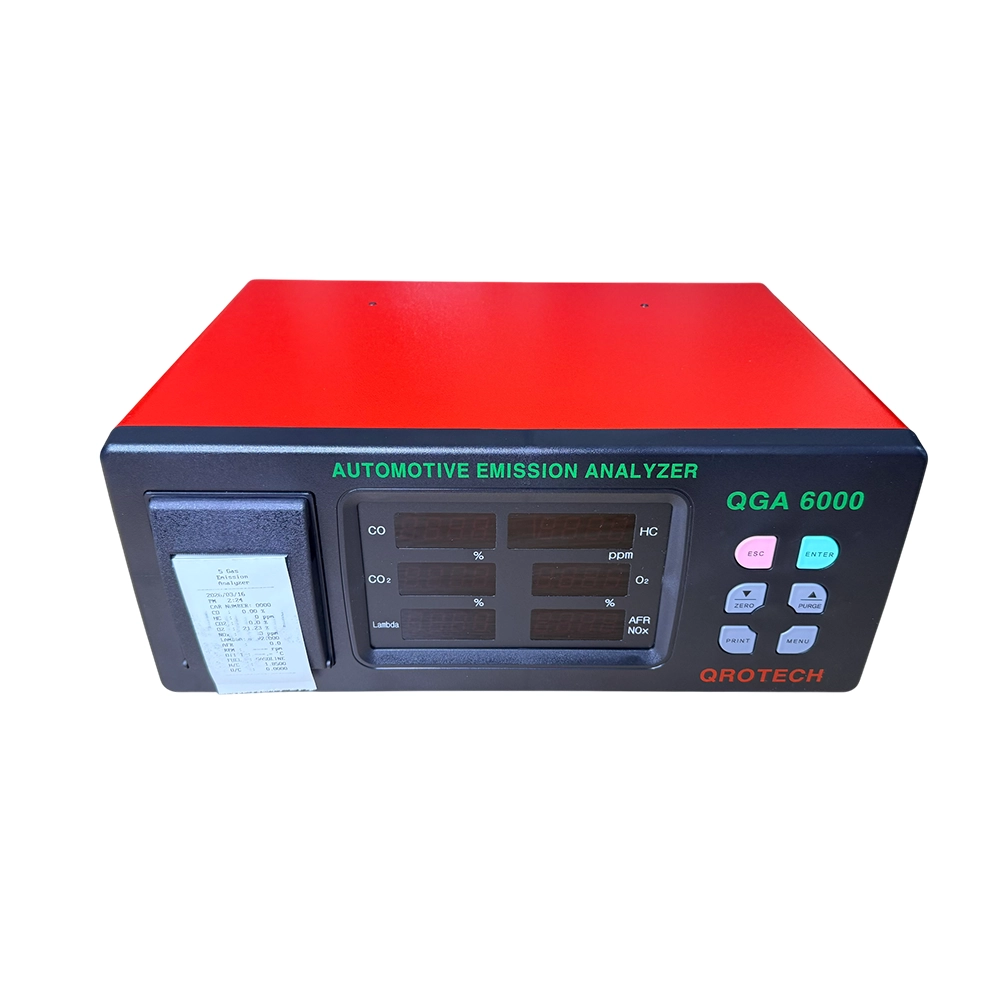

Advanced, high quality, portable 5 gas analyser including built in printer and pc interfacing program, suitable for Petrol, Diesel, LPG.
Why use this tool?
Helps diagnose diesel engine faults – quicker and more easily
Tests for harmful gas emissions
Suitable for performance tuning and environmental testing and easily interfaces with chassis dynamometers. (Note: Standard exhaust probe not designed to withstand high temperatures for extended periods)
Excellent for testing on all types of diesel systems: cars, light trucks, heavy trucks, off-road vehicles
Supplied with PC interface SW to record, graph and print A4 customer reports or save to your CRM data base service records
Measures 5 gases, including Nox
Numerous other applications, can also be used to measure gasoline emissions and Hydrocarbon leaks, Head gaskets, purge control systems
What Can be diagnosed from a diesel gas test?
EGR Valve blocked, or permanently closed
EGR Valve permanently open
Oil burning due to leaking seals / faulty turbo
Injector leaks
Mechanical misfire
Blocked air filter
- Excellent precision, stability and durability
- Response time of less than 10 seconds
- Stand-by feature to prolong the life of pump and low power consumption
- Automatic warm up time - 2~8 minutes
- RS232 PC-Link kit included (software and cables)
- Elegant Aspect - portable (compact, light weight)

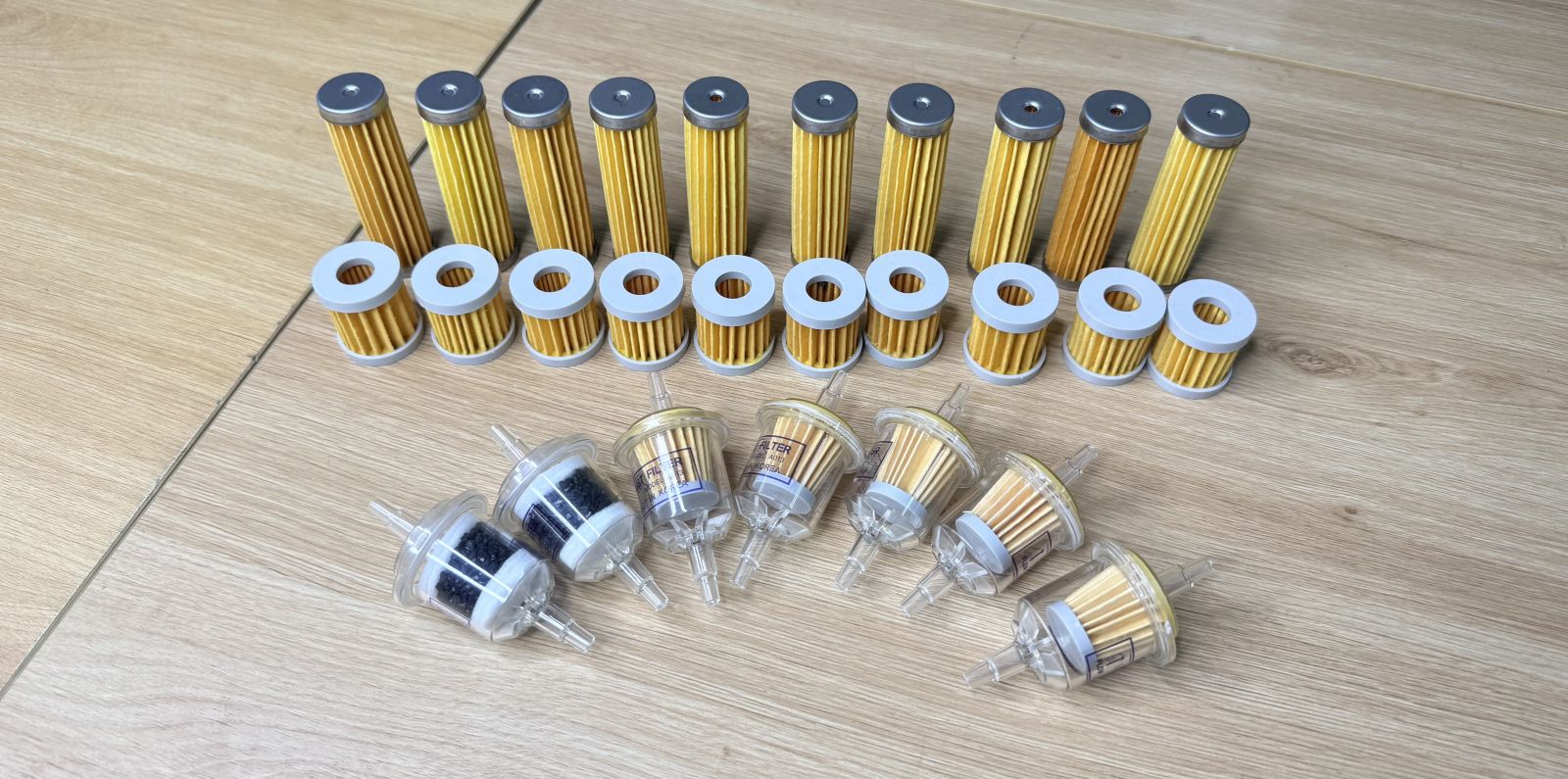

- Sufficient additional filters provided - 5 stages of filtration for internal protection
- Compatible with Dyno applications (Note: Standard exhaust probe not designed to withstand high temperatures for extended periods)
- Leakage test to verify hose, probe condition
- Official software Tests of Emissions
- Test of residue of HC
- Fuel Selection. Gasoline, LPG, CNG and Alcohol
- External printer included for instant printout of test results
Product Specifications - QGA6000 5 gas analyser
Target Subject : CO, HC, CO2, O2, Lambda (Excess Air Ratio), AFR, NOX
Sensor Theory : CO, HC, CO2: Non-Dispersive Infrared Analysis (NDIR)
O2, NOX: Electrochemical Cell
CO
Analysis Range: 0.00 - 9.99 %
Resolving Power: 0.01 %
Display: 4 digit 7 segment LED
HC
Analysis Range: 0 - 15,000 ppm
Resolving Power: 1 ppm
Display: 4 digit 7 segment LED
CO2
Analysis Range: 0.0 - 20.0 %
Resolving Power: 0.10 %
Display: 4 digit 7 segment LED
O2
Analysis Range: 0.00 - 25.00 %
Resolving Power: 0.01 %
Display: 4 digit 7 segment LED
LAMBDA
Analysis Range: 0 - 2.000
Resolving Power: 0.001
Display: 4 digit 7 segment LED
Air Fuel Ratio
Analysis Range: 0.0 - 99.0
Resolving Power: 0.1
Display: 4 digit 7 segment LED
Repetition Rate: Lower than +/- 2 % FS
Response Time: Within 10 seconds (90 % of the time)
Preheat Time: Approx. 2-8 minutes
Sample Requirement: 4 - 6 L/min
Voltage Use: AC110v or AC220v +/- 10%, 50/60 Hz
Power Consumption: Approx 50 W
Category Temperature: 0 % - 40C
Size: 420 (W) * 298 (D) * 180 (H) mm
Weight: Approx 6.9kg

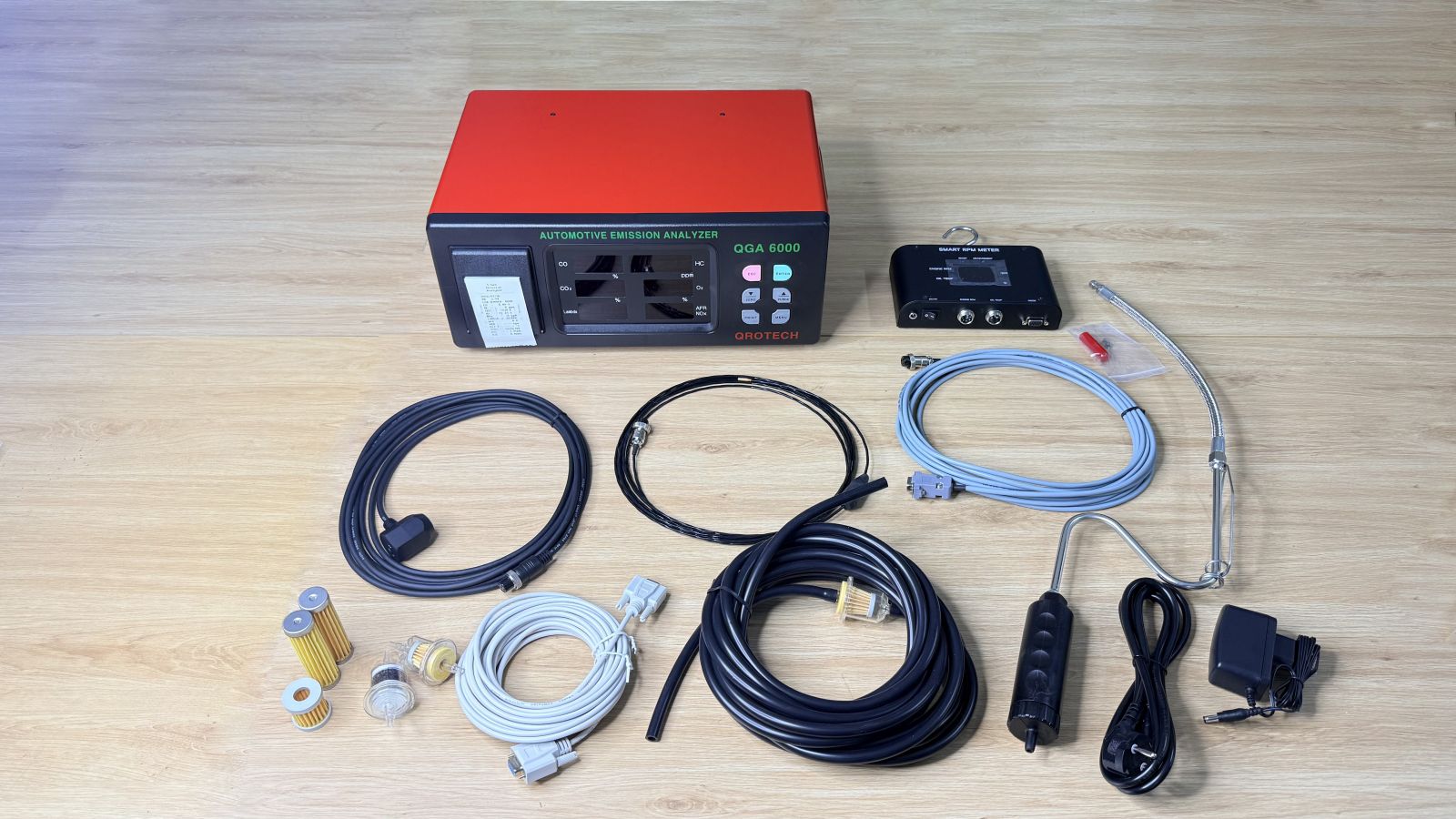

Included Accessories: Probe, Probe Hose, Emergency Fuse, Water Leak Testing Cap, Emergency Filter, Instruction Manual, Power Cord, Ground Wire, and Type Approval Certificate.
