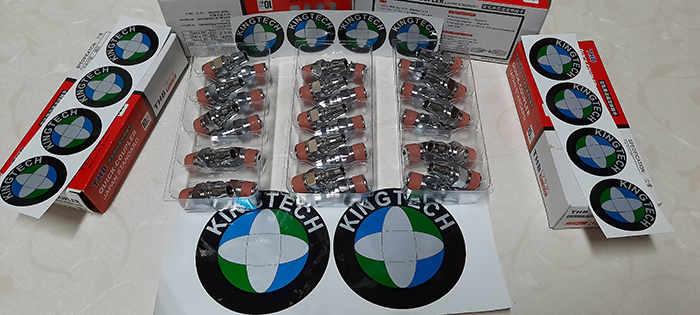

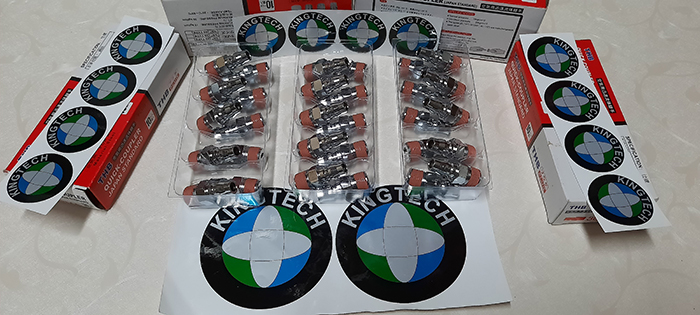

Small quick coupler-One touch THB 30PMA

AIR QUICK COUPLER

LIGHTWEIGHT AND COMPACT AIR PIPING COUPLER

SMALL QUICK COUPLER - ONE TOUCH

Air Quick Coupler / Quick Disconnect Coupling / Quick Disconnector / Quick Connect / Quick Release Coupler (QRC) / Air Quick Coupling / Air Connectors & fitting / Quick coupling / Pneumatic couplings / Cople Rapido / Acople Rapido / Cngate rápido / Engate rápido para ar comprimido / Druckluftkupplungen / Schnellkupplungen / Stecknippel / Stecktüllen / Schnellverschluss-Kupplungen / Connettore aria ad attacco rapido / Raccordi per aria compressa / Raccords rapides / Raccords et embouts / Trykluft koblinger og nipler / Snabbkopplingar och nipple


Part No.: S50-20PHA
Size: 1/4" HOSE


FEATURES:

1.Small quick connector, light weight
2.Just push plug into socket for simple connection.
3.Chrome plated steel body for anti-corrosion.
4.High temperature resistance, resistance to chemical solvents

APPLICATION:

1. Pneumatic tools
2. Air piping
3. Air pressure equipment

SPECIFICATION:
 Material          Steel
 Thread:           PT
 Working Pressure: 218 PSI ( 15Bar / 1.5MPa )
 Maximum Pressure: 290 PSI ( 20Bar / 2MPa )
 Temperture Range: -20°C~ +180°C
 Size: 1/4" PT
         1/4" HOSE & 6.5*10 HOSE
