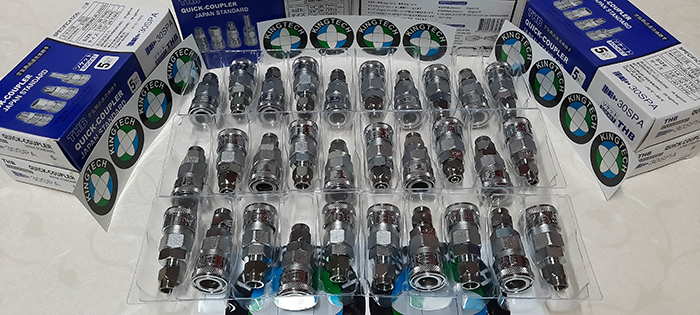

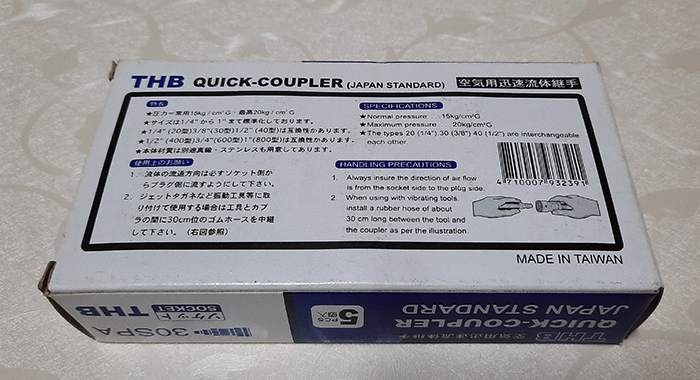

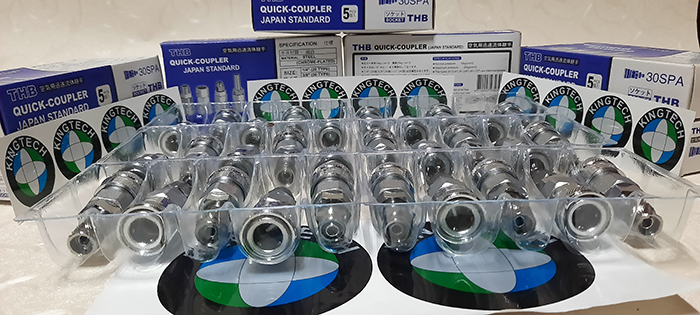

h2Standard Quick Coupler THB 30SPA
Price: Call
Share
|
|
|
Mr. Vui
0944755799
| | |
Mr. Định
0968776499
| | |
Mr. Thuyên
0963829640
| | |
Nhân Võ Đình (HCM)
0967161443
| | |
Lê Thị Thanh Hương
0979898586
AIR QUICK COUPLING
JAPANESE STYLE - REGULAR TYPE (for Hose usage)
Air Quick Coupler / Quick Disconnect Coupling / Quick Disconnector / Quick Connect / Quick Release Coupler (QRC) / Air Quick Coupling / Air Connectors & fitting / Quick coupling / Pneumatic couplings /
FEATURES:
1. One-way automatic shut-off valve in the socket.
2. Wide variety provides best choice accordingly to application.
3. Hardened important parts are extremely wear resistant and durable.
4. Tested 100,000 times, coupler connection is accurate and reliable.
APPLICATION:
1. Pneumatic tools
2. Air piping
3. Air pressure equipment
SPECIFICATION:
＊Meet The International Norms : JIS B 0203
JAPANESE STYLE - REGULAR TYPE (for Hose usage)
Air Quick Coupler / Quick Disconnect Coupling / Quick Disconnector / Quick Connect / Quick Release Coupler (QRC) / Air Quick Coupling / Air Connectors & fitting / Quick coupling / Pneumatic couplings /
| Part No. | Size |
| 20SPA | 5x8mm hose |
| 30SPA | 6.5x10mm hose |
| 40SPA | 8x12mm hose |
| 45SPA | 10x14mm hose |
| 50SPA | 11x16mm hose |
FEATURES:
1. One-way automatic shut-off valve in the socket.
2. Wide variety provides best choice accordingly to application.
3. Hardened important parts are extremely wear resistant and durable.
4. Tested 100,000 times, coupler connection is accurate and reliable.
APPLICATION:
1. Pneumatic tools
2. Air piping
3. Air pressure equipment

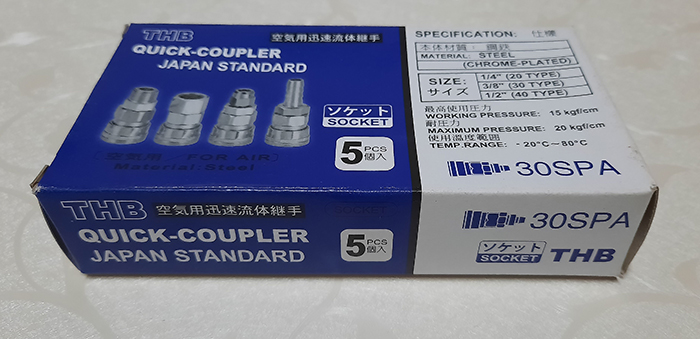

SPECIFICATION:
| Material | Stainless | Steel |
| Thread | PT | |
| Working Pressure | 218PSI (15Bar/1.5MPa) | |
| Maximum Pressure | 290PSI(20Bar/2MPa) | |
| Temperature Range | -20℃ ~ +80℃ | |
| Size | 1/4" (20Type) | |
| 3/8" (30Type) | ||
| 1/2" (40Type) | ||
