Superevac Lcd Vacuum Gauge Yellow Jacket 69075

Superevac Lcd Vacuum Gauge Yellow Jacket 69075



Model: 69075

Brand: Yellow Jacket

Made in the USA



FEATURES:

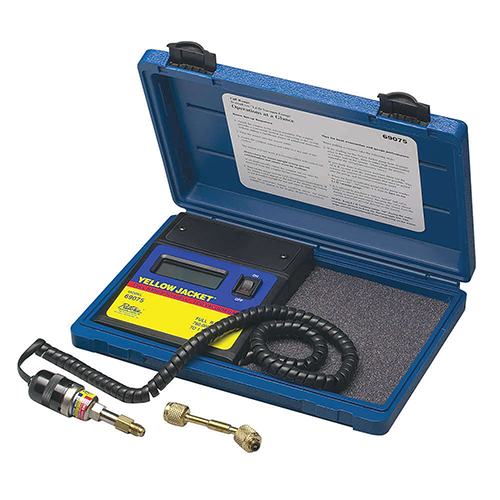

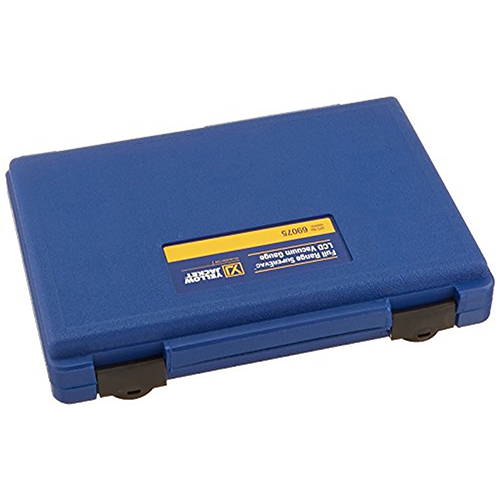

Thermocouple technology has long been proven in laboratory and precision industrial instrumentation for sensing the deep vacuum range. Thermocouple sensors are factory calibrated and exhibit few of the electronic variances of thermistor sensors found in many other electronic gauges. Durable molded case with storage for sensor, cable and brass connector.



Thermocouple sensor features:



No adjustments or warm-up. Stays calibrated after on/off switching and long evacuations

Automatic battery compensation

Automatic ambient temperature compensation

Replacement sensor requires no calibration

LCD gauge features:



Normal handling and jarring will not affect the LCD reading

Case protects electronic circuitry and sensor

Calibration standards traceable to NIST

Automatic shut-off 20 minutes after power up and no change

Precision circuitry controls sensor and translates sensor input into micron readings





SPECS:

Response time: 3 seconds

Calibration: Automatic

Warm up: 3 seconds

Sensor cable: 5.5′ (167 cm) coiled

Sensor connection: 1/4″ Male flare

Maximum pressure: to avoid sensor damage do not exceed 5 psig

Operating temperature range: 32° to 120°F (0° to 49°C)

Display: 0.5″ LCD with battery check

Automatic shut-off 20 minutes after power up and no change

Power: D cell battery, 70 hours continuous battery life

Dimensions: 9″ x 12.25″ x 2.37″ (230 x 310 x 60 mm)

Accuracy: ± 20% of reading from 10 to 10,000 microns
