1. Key Features

• Compact design, suitable for bench or wall mounting.

• Pumpless operation reduces maintenance cost.

• High-pressure low-volume rinse saves cleaning fluid.

• Galvanised base and stainless steel wash area for durability.

• Air purge drying system for fast gun drying.

• Integrated 2L container, optional 25L drum feed (UGC1006C).

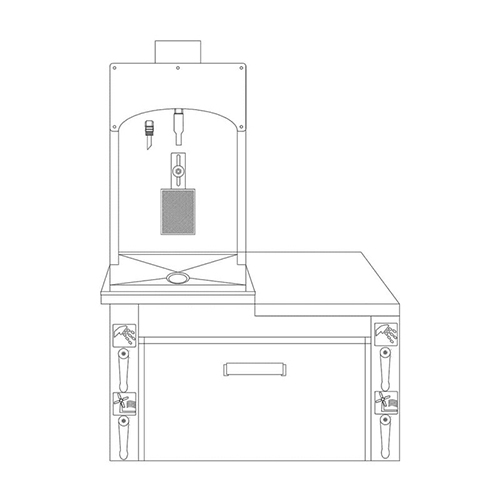

• Includes cleaning brush and side tray (single tank).

• Designed for gravity-fed spray guns.

2. Technical Specifications

• Dimensions: 830 x 500 x 330 mm

• Air Input: 50 – 100 psi (3.45 – 6.8 bar)

• Air Connection: 1/4″ BSP

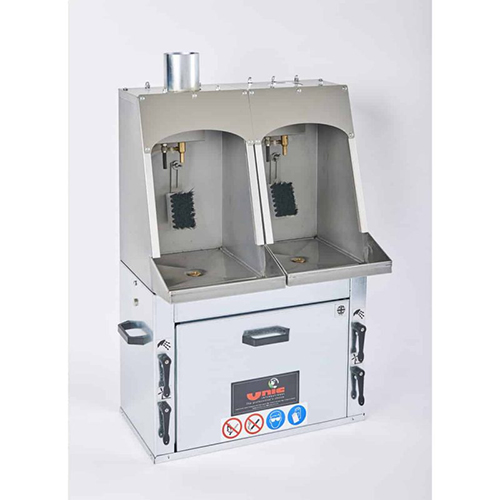

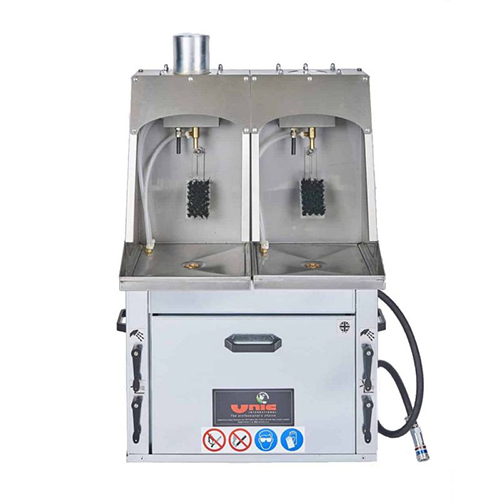

• Weight: 14 kg (single tank) / 20 kg (double tank)

• Fluid Capacity: 2L built-in, optional 25L drum feed

3. Applications

• Cleaning water-based and solvent-based spray guns in auto body shops.

• Quick rinse system for SMART repair operations.

• Suitable for furniture, wood, and metal painting workshops.

4. How to Use

1. Connect to air supply (1/4″ BSP).

2. Fill 2L tank with water or solvent.

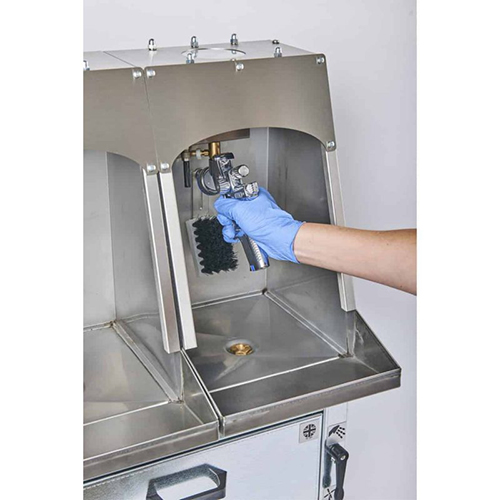

3. Place spray gun in wash area.

4. Activate high-pressure rinse system.

5. Brush off remaining residue.

6. Use air purge to dry the spray gun.
