Infrared Spray Booth with Floor Extraction – 3 Fans 15.5KW, 3 Open Grating Floors – High-Performance Painting Solution

Are you looking for a modern, high-performance, and energy-efficient spray booth system? The Infrared Spray Booth with Floor Extraction – 3 Fans 15.5KW, 3 Open Grating Floors is the ideal choice for automobile garages, manufacturing plants, and repair centers, ensuring a high-standard painting environment with optimal finishing quality.

1. Technical Specifications of the Infrared Spray Booth with Floor Extraction – 3 Fans 15.5KW, 3 Open Grating Floors

• Internal Dimensions (L × W × H): 6900 × 3900 × 2600mm
• Fan Power: 2 × 4KW + 7.5KW = 15.5KW
• Infrared Drying Power: 30KW
• Lighting Power: 1.2KW
• Total Power Consumption: 46.7KW

2. Spray Booth Wall Structure

• Material: EPS insulated panel, ensuring soundproofing, heat insulation, and fire resistance.
• Structure:
  • Outer Layer: Two layers of 0.35mm aluminum-zinc coated steel, providing corrosion and oxidation resistance.
  • Middle Layer: EPS foam, offering effective thermal and sound insulation.
• Panel Thickness: 50mm
• Smart Assembly System: EPS panels are seamlessly connected and secured on U53mm aluminum alloy rails.

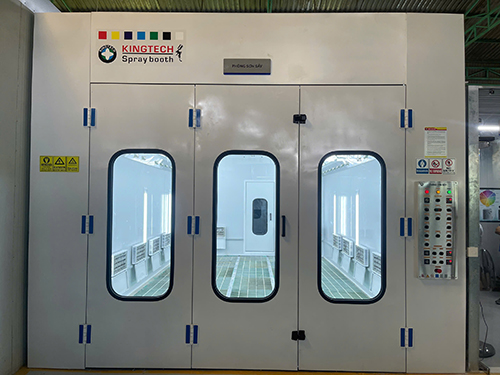

3. Door System

• Main Door:
  • Three-panel structure, dimensions: 3000 × 2600mm.
  • Fitted with 9 high-strength cast aluminum hinges, ensuring durability and aesthetics.
  • Equipped with industrial locks, seals, and gaskets, ensuring airtight sealing and preventing heat loss.
  • Three double-layer glass observation windows allow clear interior visibility.
• Side Door:
  • Dimensions: 650 × 1850mm, includes an observation window for process monitoring.
  • Equipped with a pressure lock made from cast aluminum, ensuring safety.
  • Material: Three-layer Polyurethane Panel, featuring high-tech painted steel and PU foam (density 40kg/m³ - 45kg/m³), ensuring superior sound and heat insulation.

4. High-Powered Air Supply Fan System (2 Fans)

• Power: 4KW × 2
• Airflow Rate: 10,000 - 12,500 m³/h
• Pressure: 800Pa
• Rotation Speed: 940 RPM
• Advantages:
  • Siemens technology, ensuring high durability and stable performance.
  • Casing made of galvanized steel, offering corrosion resistance and heat durability.

5. High-Powered Exhaust Fan System (1 Fan)

• Power: 7.5KW
• Airflow Rate: 19,000 - 20,000 m³/h
• Pressure: 800Pa
• Rotation Speed: 940 RPM
• Advantages:
  • Double-inlet centrifugal fan, manufactured to Siemens standards, reducing noise and optimizing exhaust efficiency.
  • Casing designed for noise reduction and heat insulation.

6. Advanced Lighting System

• Ceiling Lights:
  • 10 clusters, each with 4 bulbs → Total: 40 bulbs × 20W = 800W.
• Side Lights:
  • 10 clusters, each with 2 bulbs → Total: 10 × 2 × 20W = 400W.
• Illumination Intensity: >800Lux, ensuring accurate color matching.
• All ceiling light boxes are equipped with double-layer protective glass and high-temperature-resistant wiring.

7. High-Efficiency Infrared Drying System

• Includes 10 infrared drying boxes, each containing 3 infrared lamps measuring 525mm.
• Power per lamp: 1000W.
• Total Drying Power: 30KW.
• Automatic air damper control system: Pneumatic control through electric air valves and pneumatic cylinders.

9. High-Performance Air Filtration System (3 Layers of Filtration)

• Primary Filter (EU2/G2):
  • Airflow Speed: 2m/s
  • Rated Airflow: 7,200m³/h
  • Dust Holding Capacity: 400g/m²
• Ceiling Filter (F5/EU5):
  • Airflow Speed: 0.25m/s
  • Rated Airflow: 900m³/h
  • Dust Holding Capacity: 600g/m²
• Floor Filter (PA-50, G2/EU2):
  • Dimensions: 0.8 × 20m × 50mm
  • Airflow Speed: 2m/s
  • Rated Airflow: 7,200m³/h
  • Dust Holding Capacity: 3,500g/m²

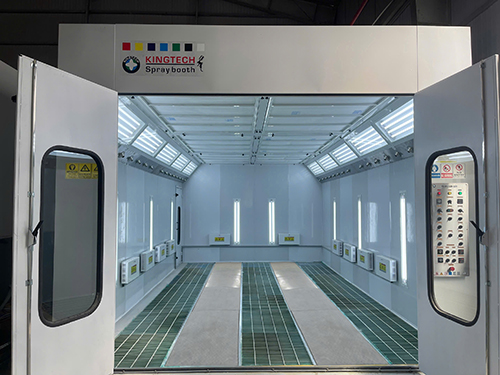

10. Open Grating Floor System (3 Rows)

• Material: 3.2mm thick steel, 10mm welded mesh reinforcement.
• Surface Treatment: Galvanized coating, load capacity 800kg/wheel.
• Below the grating floor: Support mesh panels for floor filters.

11. Smart Control System

• Fully Equipped Safety Features:
  • Phase loss, phase reversal, overheating protection.
  • Emergency stop switch.
• Premium CNC stainless steel control panel, labeled in Vietnamese for ease of use.

12. Standard Ventilation Ducts

• Includes:
  • 4m standard exhaust duct.
  • 1 square elbow fitting.
• Floor-mounted installation, does not include excavation costs.
