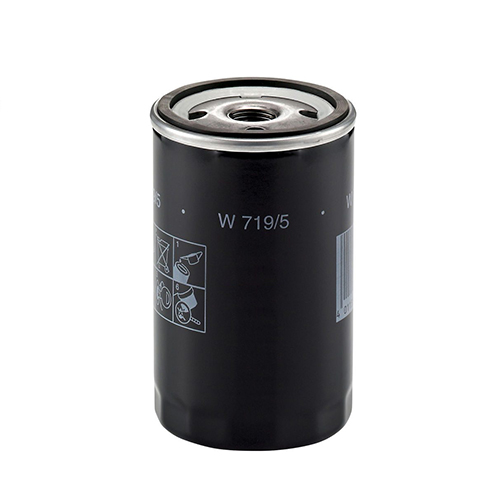

Zelus Oil Filter OF10L (W 719/5), Air Compressor Accessories ZEL-10A

1. Key Features

The Zelus OF10L(W 719/5) oil filter effectively removes dirt, metal particles, and contaminants, protecting engines and air compressors. It has a standard 3/4-16 UNF thread for easy installation. The anti-drainback valve keeps oil inside when the engine stops, ensuring lubrication at startup. The 2.5 bar bypass valve maintains oil flow even when the filter is clogged, ensuring system safety.

2. Specifications

Model: OF10L(W 719/5)
Brand: Zelus
Origin: China
Filter type: Oil Filter
Height: 123 mm
Thread size: 3/4-16 UNF
Outer diameter: 76 mm
Anti-drainback valve: Yes
Bypass valve opening pressure: 2.5 bar
Inner gasket diameter: 62 mm
Outer gasket diameter: 71 mm

3. Applications

Used for industrial air compressors, diesel or gasoline engines requiring high-quality oil filtration. Extends engine life, reduces wear, prevents breakdowns, ideal for workshops, factories, and auto repair garages.

4. Usage Instructions

Turn off the machine before replacing the filter. Remove the old filter, apply a thin layer of oil to the new filter gasket for a better seal. Hand-tighten the new filter until snug, do not overtighten. Start the machine and check for oil leaks.
