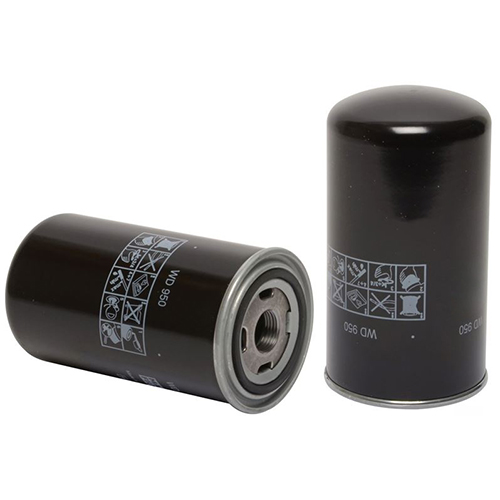

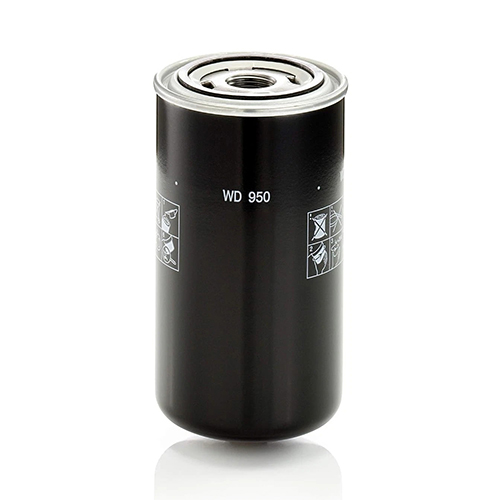

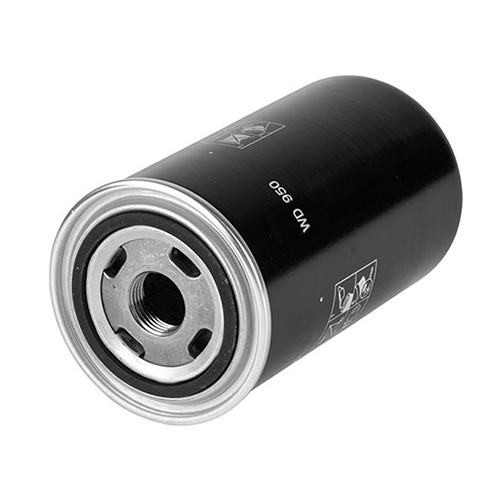

Zelus Oil Filter OF20L(W950), Air Compressor Accessories ZEL-20A

1. Key Features

• Zelus OF20L(W950) oil filter made from dense glass fiber material with up to 99.9% filtration efficiency.

• High-quality silicone anti-drainback valve for leak prevention and heat resistance.

• Advanced CENLLULOSE & SYNTHETIC MEDIA construction enhances dirt and contaminant removal.

• Thick casing for corrosion resistance, pressure durability, and reliable performance in harsh environments.

• Equipped with bypass and anti-drainback valves to ensure continuous oil flow and prevent filter rupture.

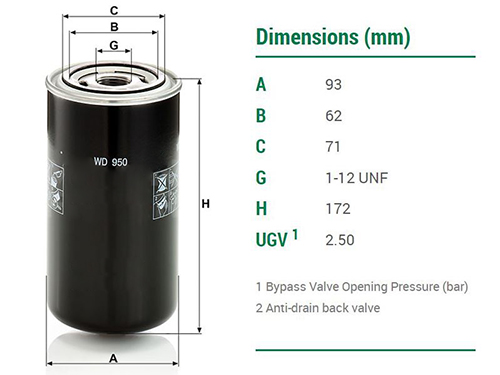

2. Specifications

• Weight: 0.790 kg

• Body Diameter (A): 93 mm

• Outer Gasket Diameter (C): 71 mm

• Inner Gasket Diameter (B): 62 mm

• Height (H): 172 mm

• Thread: UNF 1-12

• Bypass Valve Opening Pressure: 2.50 bar

• Anti-drainback Valve: Yes

• Volume: 0.0018 m³

• Flow Rate: up to 145 GPM

• Maximum Pressure: 510 PSI

3. Applications

• Oil filtration for Zelus screw air compressors and compatible machines.

• Suitable for diesel and gasoline engines requiring premium oil filtration.

• Ideal for workshops, garages, and industrial maintenance.

4. How to Use

• Turn off the equipment and drain old oil.

• Remove the old filter and clean mounting area.

• Install the new Zelus OF20L(W950) filter, tighten securely.

• Refill with fresh oil, start engine, check for leaks before use.
