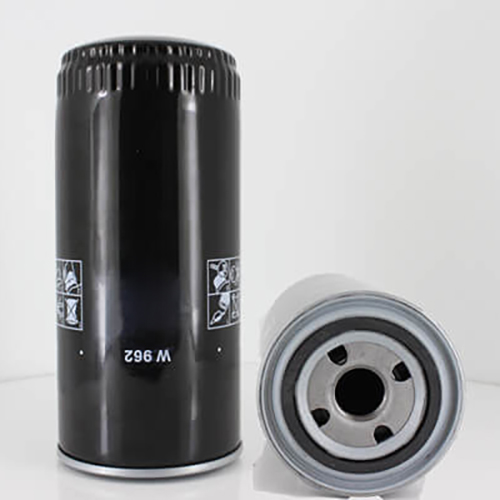

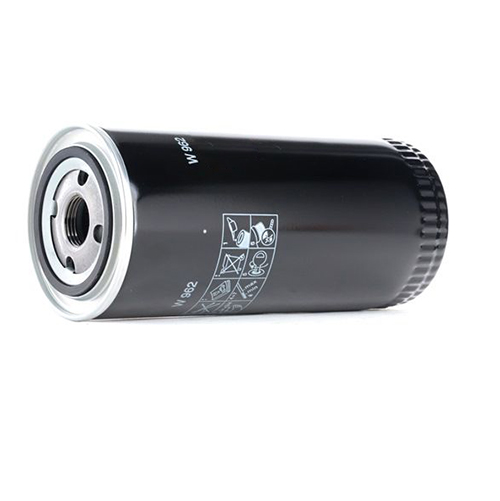

Zelus Oil Filter OF30L(W962), Air Compressor Accessories ZEL-30A

1. Key Features

• Zelus OF30L(W962) oil filter is built for extreme conditions, ensuring durability and efficiency.

• Dense glass fiber filter media provides up to 99.9% filtration efficiency.

• High-quality silicone anti-drainback valve ensures oil flow stability and leak prevention.

• Thick metal housing resists corrosion and withstands high pressure.

• Eco-friendly design, long replacement cycle (3000h – 3500h).

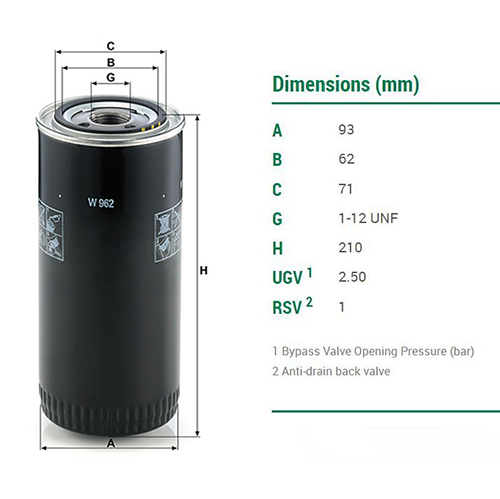

2. Specifications

• Weight: 0.760 kg

• Body Diameter (A): 93 mm

• Outer Gasket Diameter (C): 71 mm

• Inner Gasket Diameter (B): 62 mm

• Height (H): 210 mm

• Thread (G): 1-12 UNF

• Bypass Valve Opening Pressure: 2.50 bar

• Anti-drainback Valve: Yes

• Volume: 0.0022 m³

• Service Life: 3000h – 3500h

3. Applications

• Suitable for screw air compressors and compatible industrial machinery.

• Can be used for diesel and gasoline engines requiring high-efficiency oil filtration.

• Ideal for factories, garages, and maintenance workshops.

4. How to Use

• Turn off the compressor and drain old oil.

• Remove the old filter and clean the mounting surface.

• Install the new OF30L(W962) filter and tighten securely.

• Refill with fresh oil, start the compressor, and check for leaks.
