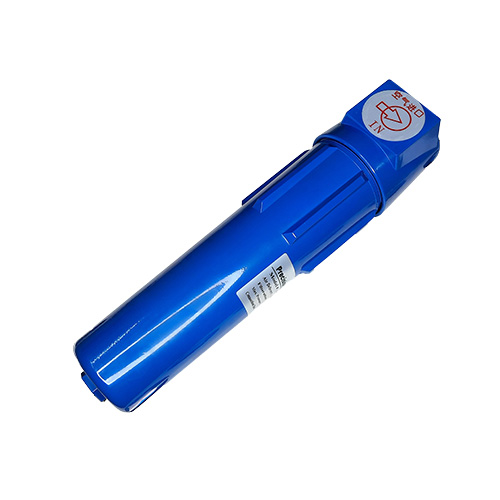

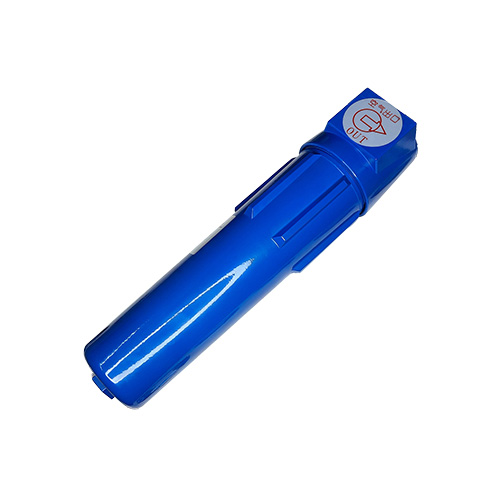

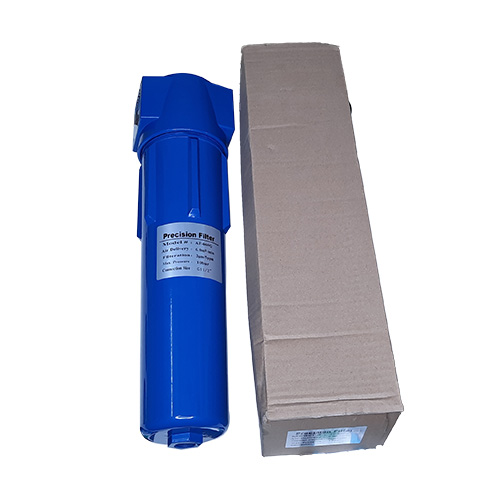

Zelus P/Q/S Air Filter AF-060Q for Zelus ZEL-30A Air Compressor

1. Key Features

• Zelus AF-060Q precision filter removes dust, oil mist, and contaminants from compressed air, protecting downstream equipment.

• Filtration rating 3µm / 5ppm, ensuring clean and dry air.

• Large flow capacity 6.0 m³/min, ideal for industrial compressed air systems.

• Withstands up to 10 bar pressure, G1 1/2 international standard connection.

• Easy to disassemble, quick element replacement, minimizing downtime.

2. Technical Specifications

• Model: AF-060Q

• Brand: Zelus

• Air Delivery: 6.0 m³/min

• Filtration: 3µm / 5ppm

• Max Pressure: 10 bar

• Connection Size: G1 1/2"

• Application: Designed for Zelus ZEL-30A compressors or equivalents

3. Practical Applications

• Used in factory compressed air systems, production workshops.

• Ideal for food, pharmaceutical, powder coating, electronics, precision mechanics.

• Protects valves, cylinders, pressure gauges, and other pneumatic tools.

4. How to Use

• Install on the pipeline after compressor and before air receiver or dryer.

• Ensure correct airflow direction per the arrow marking on housing.

• Drain water regularly via manual or automatic drain valve.

• Replace filter element when pressure drop is excessive or as scheduled.
