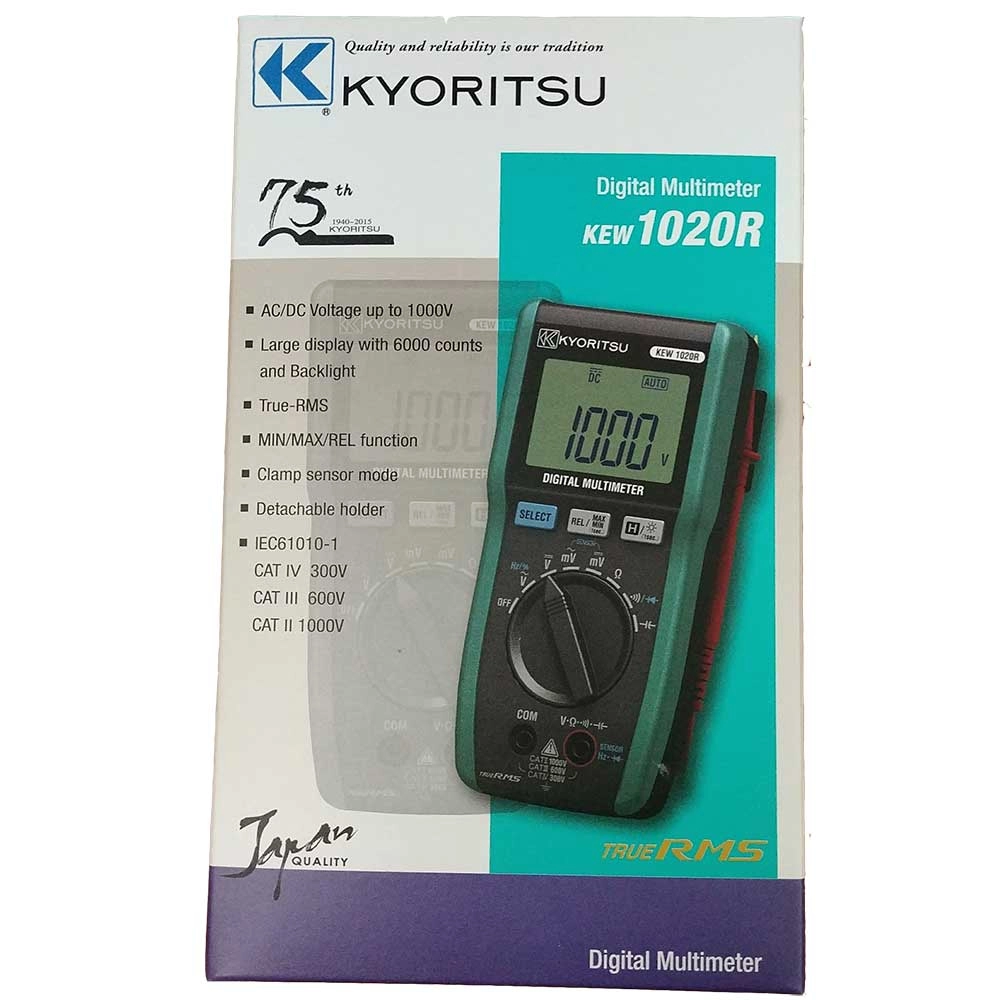

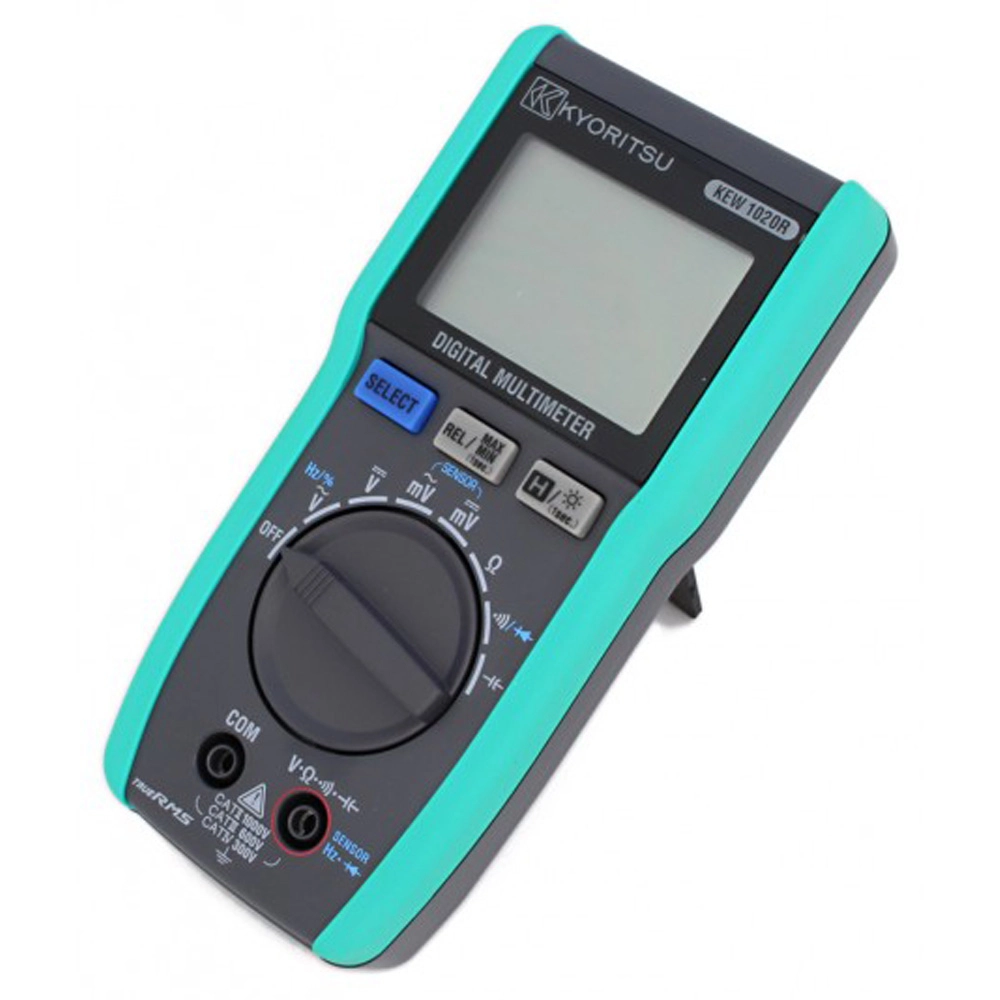

1020R Kyoritsu True RMS Digital Multimeter 1000V
1. Key Features
Multi-function measurement: The Kyoritsu 1020R measures AC/DC voltage up to 1000V, resistance, diode, continuity, capacitance and frequency.
True RMS technology: Provides true RMS measurement of AC signals for reliable measurements across various electrical systems and equipment.
Wide voltage measurement range: Measures AC and DC voltage up to 1000V with automatic range selection.

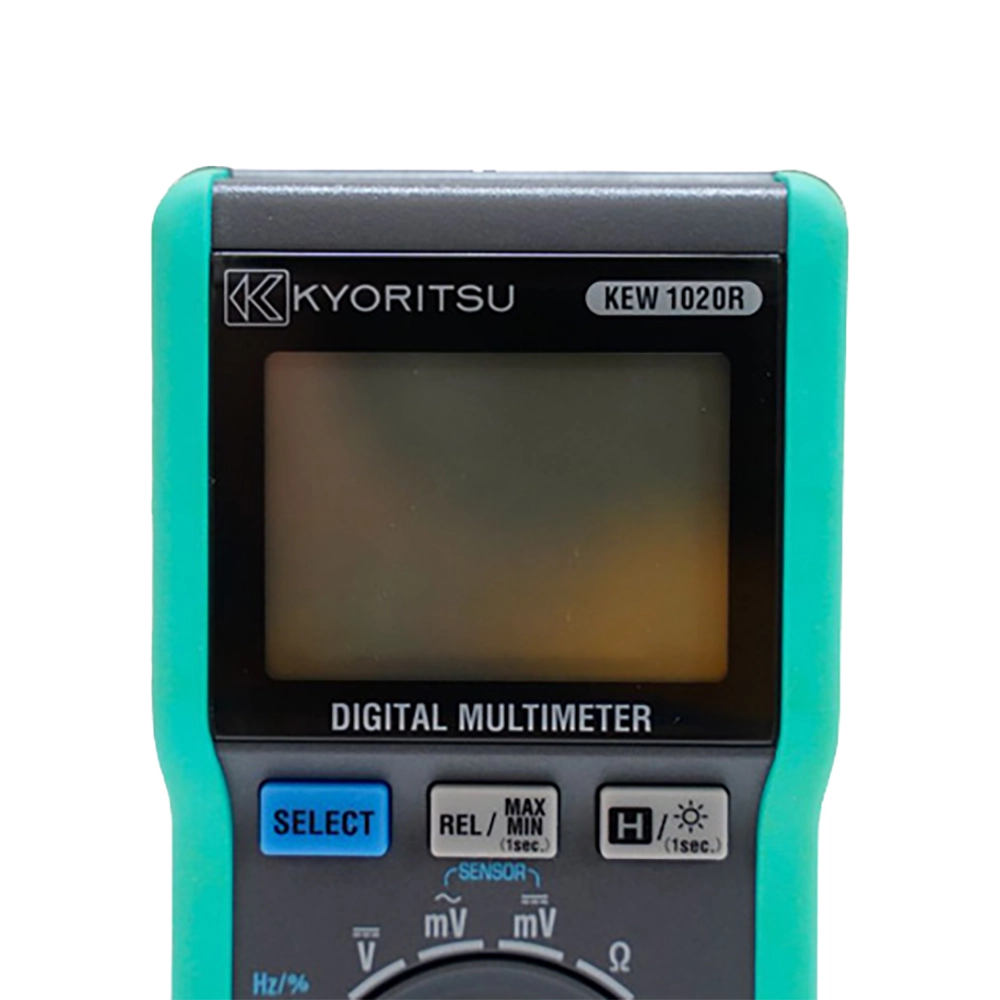

6000-count display: Large LCD with backlight provides clear readings under different lighting conditions.
Flexible measurement functions: Features Min/Max value hold, clamp sensor mode and automatic range selection.
Compact and lightweight design: Measuring 155 × 75 × 40 mm and weighing approximately 250 g including batteries, it is easy to carry and use.
High safety standards: Complies with IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V and other relevant IEC standards.
Kyoritsu Japan: Designed for professional electrical measurement, maintenance and troubleshooting applications.
2. Technical Specifications
Model: 1020R
Brand: Kyoritsu
DC Voltage: 6/60/600/1,000V (Auto range)
AC Voltage: 6/60/600/1,000V (Auto range)
Resistance: 600Ω/6/60/600kΩ/6/40MΩ
Continuity: 0–600Ω
Diode Test: < 3.0V
Capacitance: 60/600nF/6/60/600/1,000µF
Frequency: 10/100Hz/1/10/100kHz
Display: 6000 counts with backlight
Special Functions: True RMS, Min/Max hold, clamp sensor and auto ranging
Safety Standards: IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1,000V; IEC 61326-2; IEC 60529 IP40
Power Supply: R03 (AAA) 1.5V × 2
Dimensions: 155(L) × 75(W) × 40(D) mm
Weight: 250 g
Accessories: 7066 test leads, 8126 temperature test lead, batteries and instruction manual
Warranty: 6 months
3. Practical Applications
Measuring AC/DC voltage in electrical systems and equipment.
Measuring resistance and checking continuity and diodes during troubleshooting.
Measuring capacitor capacitance for component inspection.
Measuring frequency in electrical and electronic circuits.
Suitable for electrical maintenance, industrial electrical work and electronic equipment troubleshooting.
Ideal for electricians, maintenance technicians and professional service technicians.
4. How to Use
Install two AAA batteries and inspect the test leads before use.
Connect the test leads to the appropriate input terminals for the selected measurement function.
Select AC/DC voltage, resistance, continuity, diode, capacitance or frequency measurement.
Use the auto-ranging function to allow the meter to select a suitable measurement range.
Place the probes correctly on the points to be tested and read the result on the display.
When measuring high voltage, select the correct function and observe the instrument's safety limits.
After measurement, remove the probes from the circuit and store the meter in a dry location.
