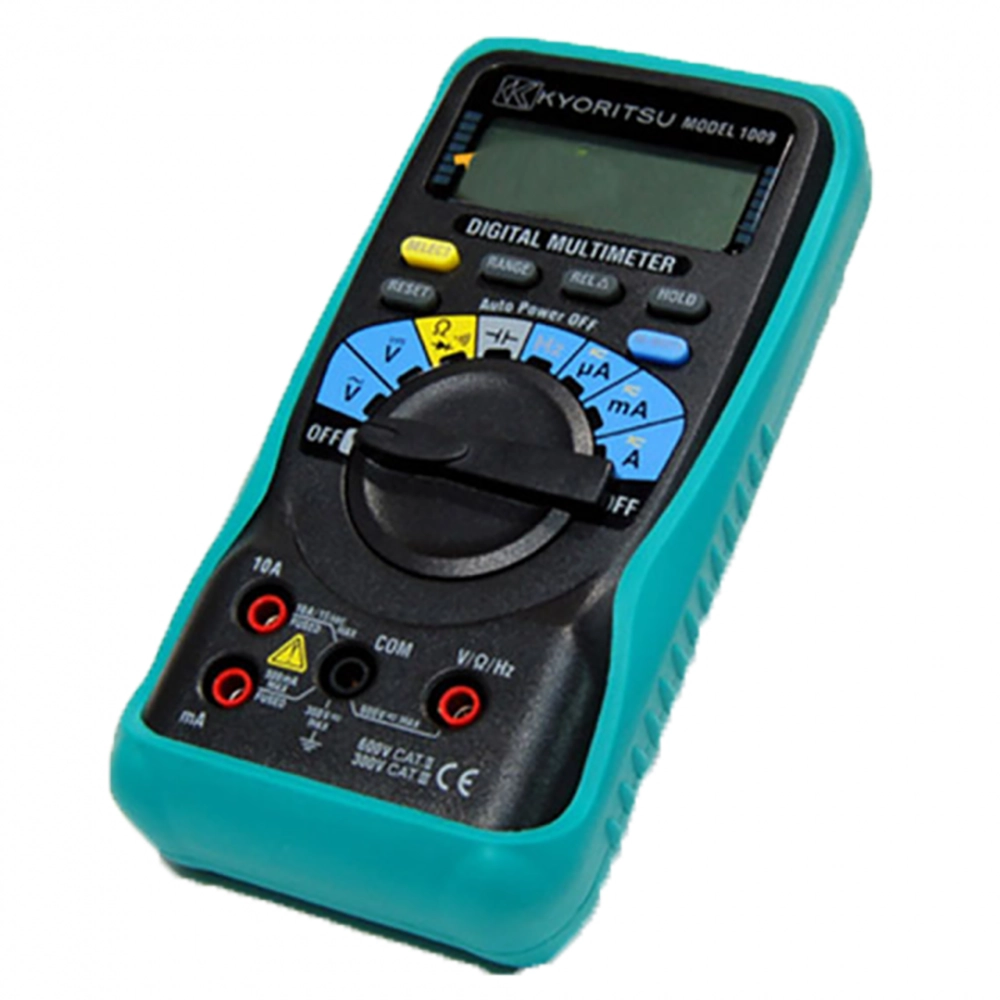

Kyoritsu 1009 Digital Multimeter
1. Key Features
Kyoritsu 1009 is a compact digital multimeter designed for basic electrical measurements including voltage, current, resistance, capacitance, frequency and diode testing.
Features a 4000-count digital display for clear and easy-to-read measurements.
Supports automatic ranging and manual range selection using the Range button.
Continuity measurement provides an audible buzzer when the measured resistance is below the specified threshold.
Measures current up to 10A for both AC and DC.
Features automatic power-off after approximately 30 minutes to conserve battery power.
Durable housing provides additional protection during everyday use.
Supports DUTY measurement from 0.1–99.9% for pulse signal testing.
Complies with relevant safety and electromagnetic compatibility standards including IEC 61010-1, IEC 61010-2-031 and IEC 61326.
Compact design makes it suitable for electrical, electronic, automotive and maintenance applications.
2. Technical Specifications
Model: 1009
Brand: Kyoritsu
Device Type: Digital Multimeter.
Display: 4000 counts.
DC Voltage: 400mV/4/40/400/600V.
DC Voltage Accuracy: ±0.6%rdg±4dgt (400mV/4/40/400V); ±1.0%rdg±4dgt (600V).
AC Voltage: 400mV/4/40/400/600V.
AC Voltage Accuracy: ±1.6%rdg±4dgt (20–400mV); ±1.3%rdg±4dgt (4/40V); ±1.6%rdg±4dgt (400/600V).
Input Impedance: 10MΩ.
DC Current: 400/4000µA/40/400mA/4/10A.
DC Current Accuracy: ±2.0%rdg±4dgt (400/4000µA); ±1.0%rdg±4dgt (40/400mA); ±1.6%rdg±4dgt (4/10A).
AC Current: 400/4000µA/40/400mA/4/10A.
AC Current Accuracy: ±2.6%rdg±4dgt (400/4000µA); ±2.0%rdg±4dgt (40/400mA/4/10A).
Resistance: 400Ω/4/40/400kΩ/4/40MΩ.
Resistance Accuracy: ±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ); ±2.0%rdg±4dgt (40MΩ).
Continuity Buzzer: 400Ω; buzzer sounds below 100Ω.
Diode Test: 1.5V; release voltage; approximately 0.4mA test current.
Capacitance: 40/400nF/4/40/100µF.
Frequency: 5.12/51.2/512Hz; 5.12/51.2/512kHz; 5.12/10MHz.
DUTY: 0.1–99.9% (Pulse Width/Pulse Period) ±2.5%±5dgt.
Applicable Standards: IEC 61010-1 CAT III 300V; IEC 61010-2-031; IEC 61326.
Power Source: R6 1.5V × 2.
Dimensions: 161 × 82 × 50mm (L × W × D).
Weight: Approx. 280g.
Included Accessories: 7066A test leads, 8919 ceramic fuse 10A/600V × 1, 8923 fuse 0.5A/600V × 1, R6 × 2, instruction manual.
Optional Accessories: 7234 crocodile clip test lead, 9095 carrying case.
3. Practical Applications
Measuring AC/DC voltage in electrical and electronic systems.
Measuring AC/DC current up to 10A.
Checking resistance of wires, components and electrical circuits.
Testing continuity, fuses and wiring using the audible buzzer function.
Testing diodes and capacitance of electronic components.
Measuring frequency and DUTY of electrical signals.
Suitable for automotive electrical repair, electronics, general electrical maintenance and equipment servicing.
Suitable for technicians, repair professionals, automotive garages and technical training facilities.
4. How to Use
Install two R6 1.5V batteries in the battery compartment.
Connect the test leads to the correct input terminals according to the measurement function.
Select the required measurement mode and use automatic or manual range selection.
Place the test probes on the points to be measured and read the result on the display.
During continuity testing, the buzzer sounds when the resistance is below the specified threshold.
When measuring current, select the correct input terminal and range, especially when measuring currents up to 10A.
After use, disconnect the test leads and store the instrument properly. The meter can automatically power off after approximately 30 minutes of inactivity.
