Kyoritsu 2200 Clamp Meter
1. Key Features
Kyoritsu 2200 is a compact digital clamp meter designed for measuring AC current, AC/DC voltage, resistance and continuity.
Slim and lightweight design with a weight of only 120 g for easy one-hand operation.
Measures AC current up to 1000A with automatic range selection.
Measures AC and DC voltage up to 600V for electrical testing and maintenance applications.
Measures resistance up to 40MΩ and includes an audible continuity test.
Ø33 mm clamp jaw accommodates various conductor sizes.
Large LCD display provides clear measurement readings.
Durable insulated housing offers reliable protection during everyday use.
Powered by 2 AAA batteries for long operating time and convenient replacement.
Suitable for electricians, maintenance technicians, industrial service engineers and automotive electrical work.
2. Technical Specifications
Model: 2200
Manufacturer: Kyoritsu
AC Current: 40.00 / 400.0 / 1000A (Auto Range).
AC Voltage: 4.000 / 40.00 / 400.0 / 600V (Auto Range).
DC Voltage: 400.0mV / 4.000 / 40.00 / 400.0 / 600V (Auto Range).
Resistance: 400.0Ω / 4.000 / 40.00 / 400.0kΩ / 4.000 / 40.00MΩ (Auto Range).
Continuity Test: Audible buzzer at approximately 50 ± 30Ω.
Clamp Jaw Diameter: Ø33 mm.
Power Supply: R03/LR03 (AAA) 1.5V × 2.
Dimensions: 190(L) × 68(W) × 20(D) mm.
Weight: 120 g.

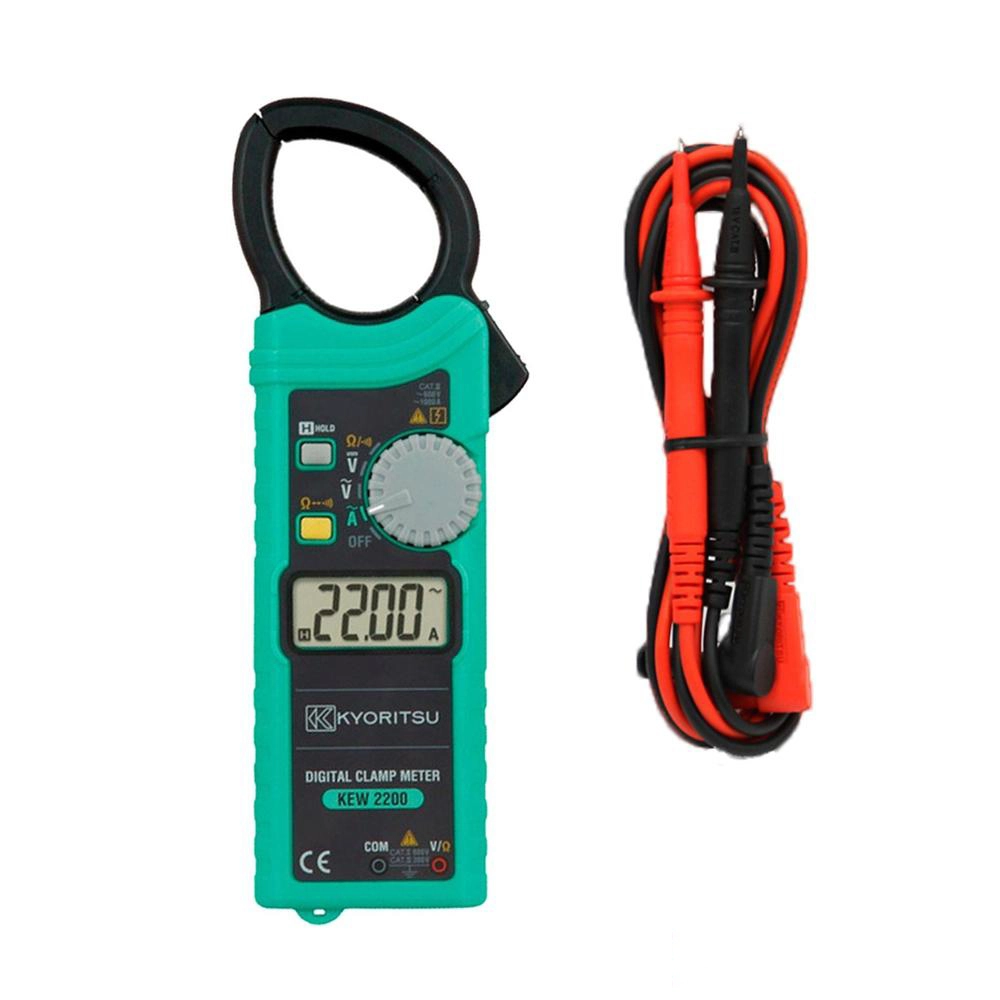

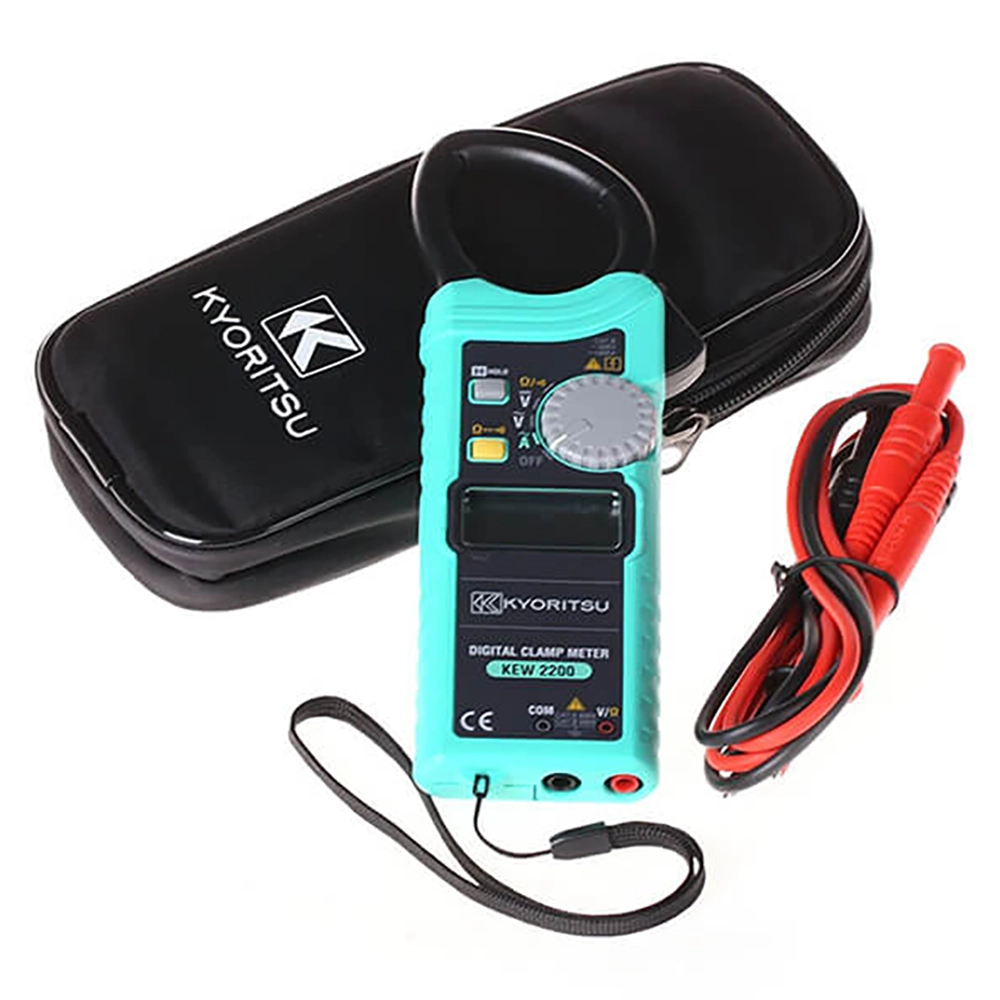

Included Accessories: 7107A test leads, 9160 carrying case, 2 × R03 (AAA) batteries, instruction manual.
3. Practical Applications
Measuring AC current in residential and industrial electrical systems.
Checking AC/DC voltage in electrical equipment and control panels.
Measuring resistance of wires, coils and electrical components.
Testing continuity of cables, fuses and electrical circuits.
Suitable for electrical maintenance, HVAC systems, solar power systems and automotive electrical repair.
Used in workshops, factories, service centers and electrical installation projects.

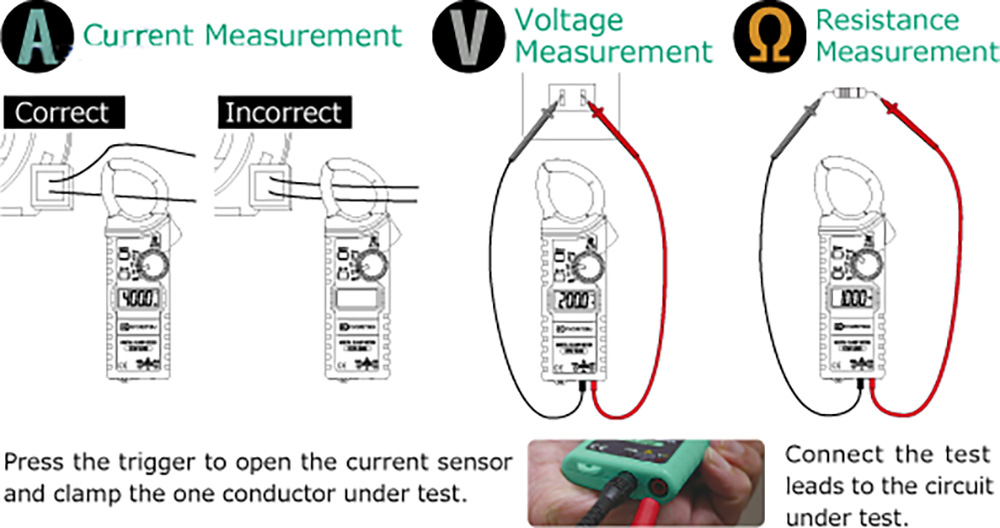

4. How to Use
Install 2 AAA batteries before operating the clamp meter.
Turn on the meter and select the desired measurement function.
For AC current measurement, clamp one conductor inside the clamp jaw.
For voltage or resistance measurement, connect the test leads to the correct terminals and touch the probes to the test points.
Ensure the circuit is de-energized before performing resistance or continuity tests.
Read the measurement on the LCD display after the value stabilizes.
Turn off the meter after use and store it in the carrying case.
