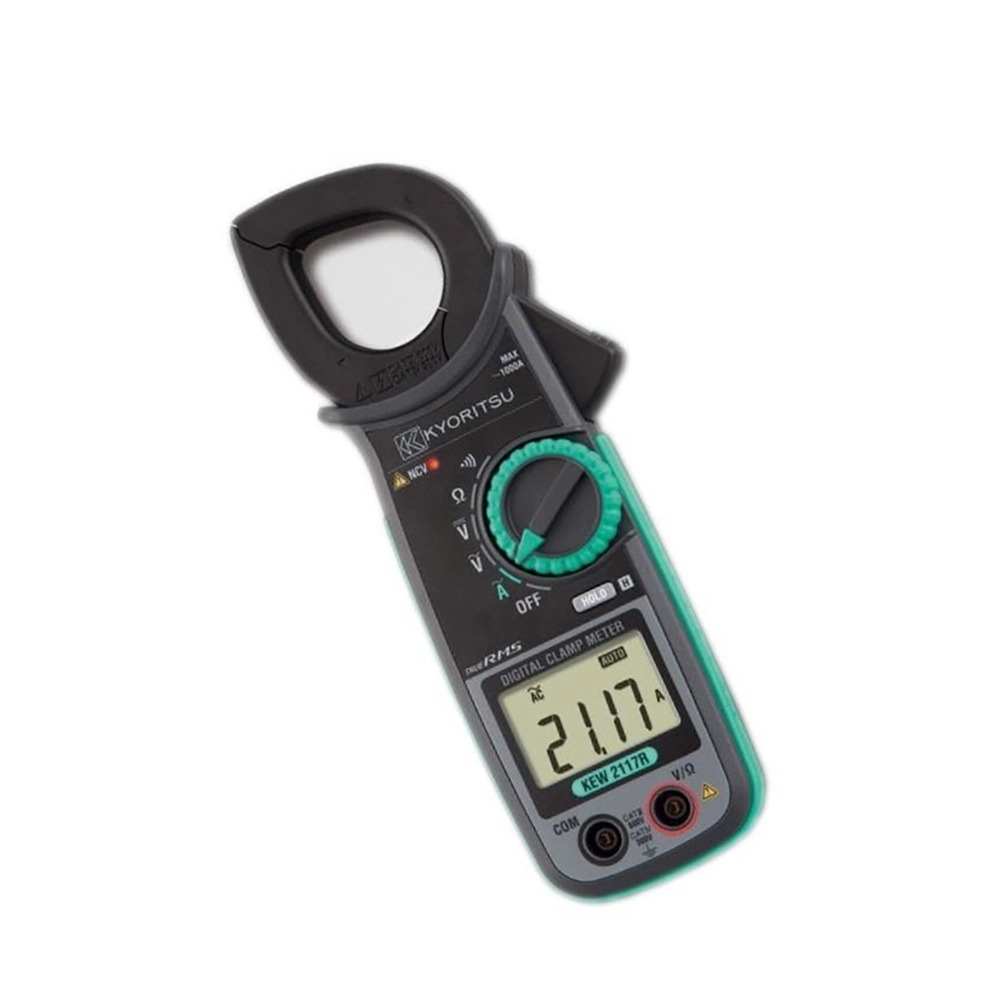

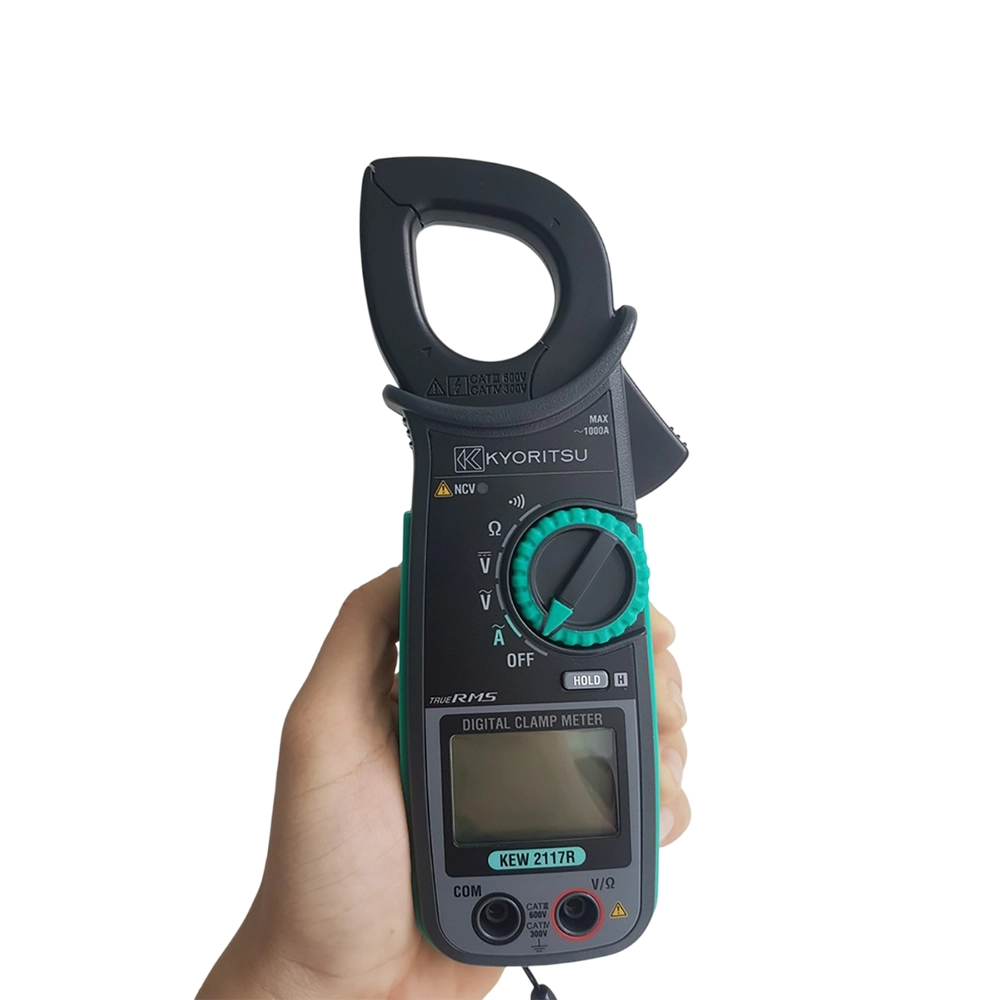

Kyoritsu 2117R True RMS Clamp Meter 1000A
1. Key Features
Compact and rugged design: The Kyoritsu 2117R measures 204 × 81 × 36 mm and weighs approximately 220 g including batteries, making it convenient for handheld use.
AC current measurement up to 1000A: Provides 60/600/1000A measurement ranges for checking current in various electrical systems.
AC/DC voltage measurement up to 600V: Measures AC and DC voltage with automatic range selection.
True RMS technology: Provides true RMS measurement of AC current for reliable readings across different electrical loads.
φ33 mm clamp jaw: The clamp jaw accepts conductors up to 33 mm in diameter.
Easy-to-read LCD: The display provides clear measurement readings during electrical inspection and maintenance.
Automatic ranging: Automatically selects the appropriate measurement range for faster and easier operation.
Energy efficient: Powered by two AAA batteries and equipped with an automatic power-off function after approximately 10 minutes.
High safety rating: Complies with IEC 61010-1 CAT IV 300V / CAT III 600V for electrical testing and maintenance applications.
Insulated housing: The meter housing is made from insulating synthetic material to support safe handling during measurement.
2. Technical Specifications
Model: 2117R
Brand: Kyoritsu
AC Current Measurement Range (A)
Measurement Range: 60/600/1000A (Auto-ranging)
Accuracy:
±1.5%rdg±4dgt [45–65Hz]
±2.0%rdg±5dgt [40–1kHz]
AC Voltage Measurement Range (V)
Measurement Range: 60/600V (Auto-ranging)
Accuracy:
±1.0%rdg±2dgt [45–65Hz] (600V)
±1.5%rdg±4dgt [40–1kHz] (60/600V)
DC Voltage Measurement Range (V)
Measurement Range: 60/600V (Auto-ranging)
Accuracy:
±1.0%rdg±3dgt (60V)
±1.2%rdg±3dgt (600V)
Resistance Measurement Range (Ω)
Measurement Range: 600Ω/6/60/600kΩ (Auto-ranging)
Accuracy:
±1.0%rdg±5dgt (600Ω)
±2.0%rdg±3dgt (6/60/600kΩ)
Continuity Test: 600Ω (Buzzer sounds at <90Ω)
Clamp Jaw Diameter: φ33mm max.
Safety Standards:
IEC 61010-1 CAT IV 300V, CAT III 600V, Pollution Degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033
IEC 61326-2-2 (EMC), IEC 60529 IP40, EN 50581 (RoHS)
Power Supply: R03/LR03 (AAA) (1.5V) × 2
Continuous Measurement Time: Approx. 170 hours (when using R03 batteries; NCV LED and display backlight: OFF)
Auto Power Off: After approximately 10 minutes
Dimensions / Weight: 204 (L) × 81 (W) × 36 (D) mm / 220g (including batteries)

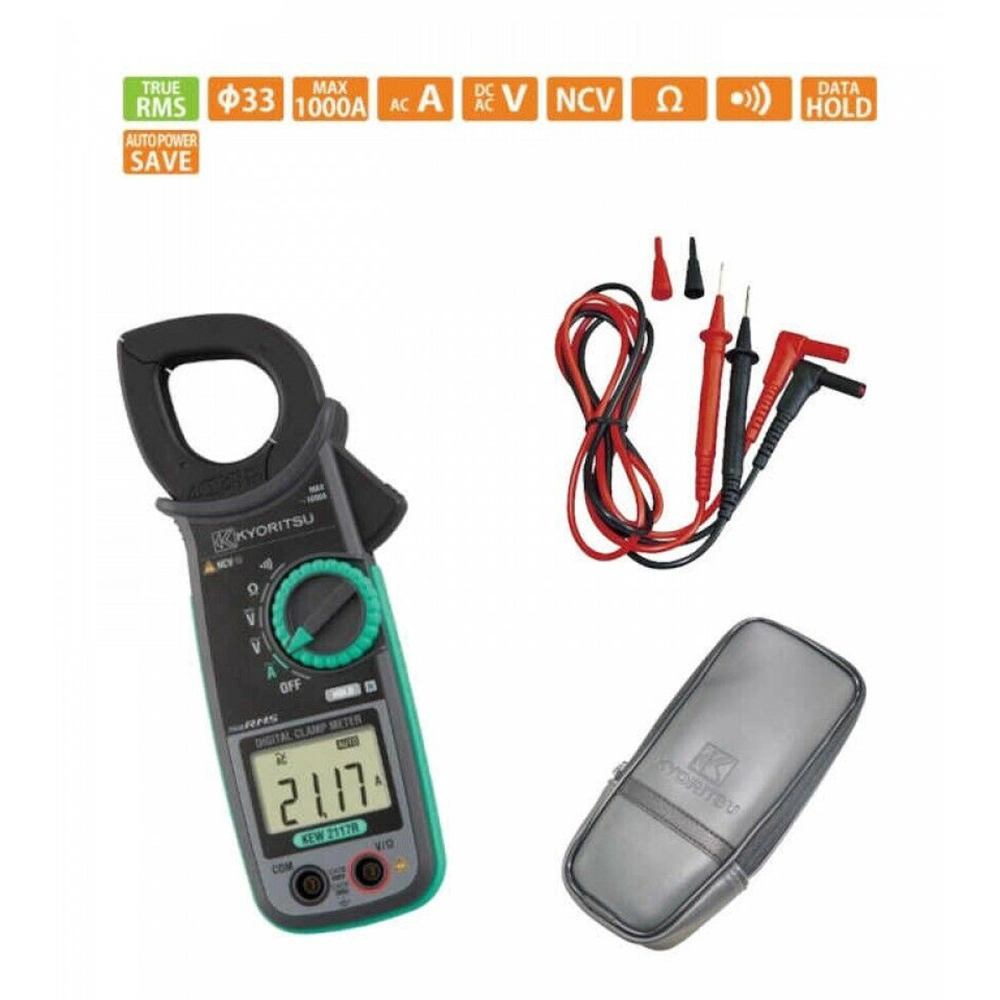

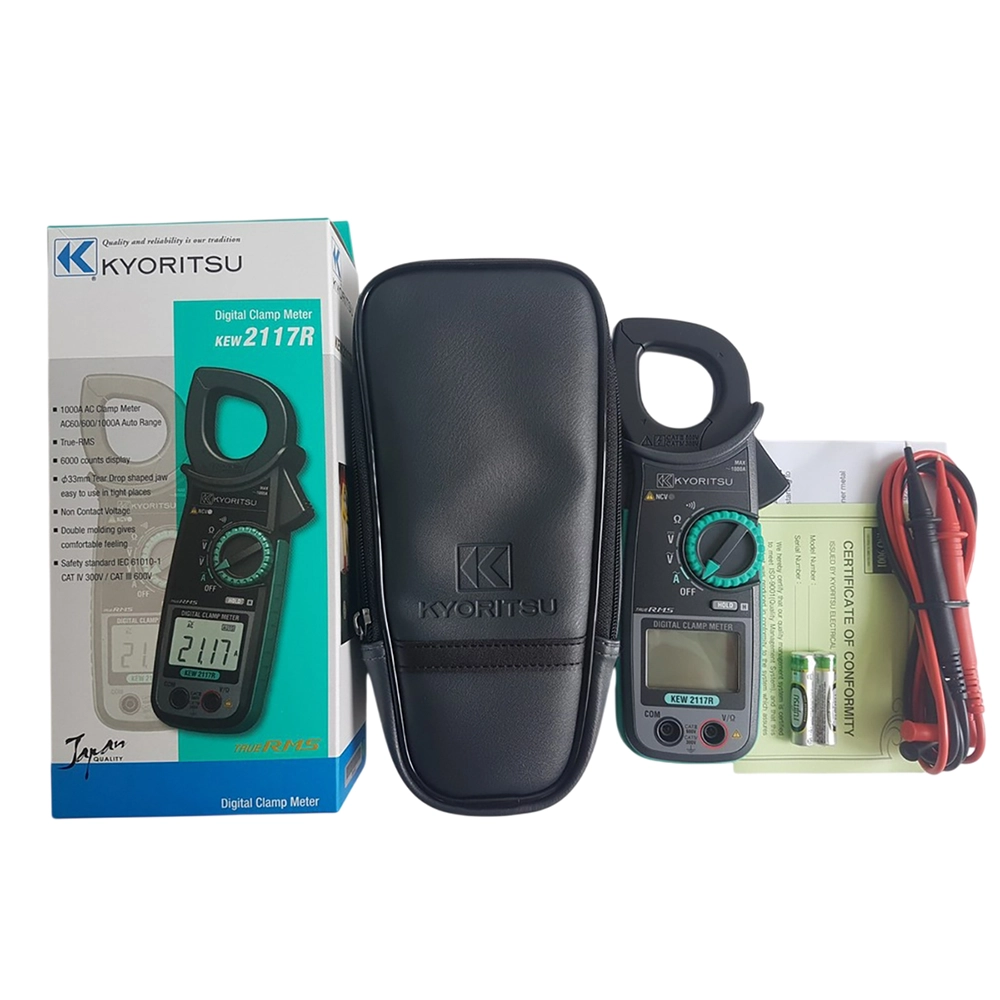

Included Accessories: Test leads 7066A, Carrying case 9079, R03 (AAA) batteries × 2, Kyoritsu 2117R Instruction Manual
3. Practical Applications
Measuring AC current in electrical systems up to 1000A.
Checking AC/DC voltage in electrical circuits and equipment.
Measuring resistance and checking continuity during troubleshooting and maintenance.
Inspecting electrical conductors, control panels, distribution systems and electrical equipment.
Suitable for electricians, electronic technicians and industrial maintenance technicians.
Suitable for electrical repair centers, workshops, factories and field service applications.
The clamp jaw allows suitable current measurements without disconnecting the conductor from the circuit.
4. How to Use
Install two AAA batteries and inspect the clamp meter before measurement.
Turn on the instrument and select AC current, AC/DC voltage, resistance or continuity measurement.
For AC current measurement, open the clamp jaw and position one conductor inside the jaw.
Close the clamp jaw completely and read the current value on the display.
For voltage measurement, connect the 7066A test leads to the appropriate terminals and place the probes across the points to be tested.
Before measuring resistance or continuity, make sure the circuit under test is de-energized.
After use, remove the test leads from the circuit and store the meter in the 9079 carrying case.
