h27.5 cm Heavy-Duty Swivel Caster Wheel
Price: Call
Share
|
|
|
Mr. Vui
0944755799
| | |
Mr. Định
0968776499
| | |
Mr. Thuyên
0963829640
| | |
Nhân Võ Đình (HCM)
0967161443
| | |
Lê Thị Thanh Hương
0979898586
7.5 cm Heavy-Duty Swivel Caster Wheel
1. Features
The Kingtech KT75X heavy-duty caster wheel is designed for smooth and reliable material handling. Featuring 360-degree swivel movement, it provides excellent maneuverability for carts, tool trolleys and industrial equipment.
The high-quality PVC wheel offers excellent wear resistance, low noise and smooth rolling.
The 2.3 mm thick galvanized steel bracket provides outstanding strength and corrosion resistance.
Premium ball bearings reduce friction and ensure effortless rotation.

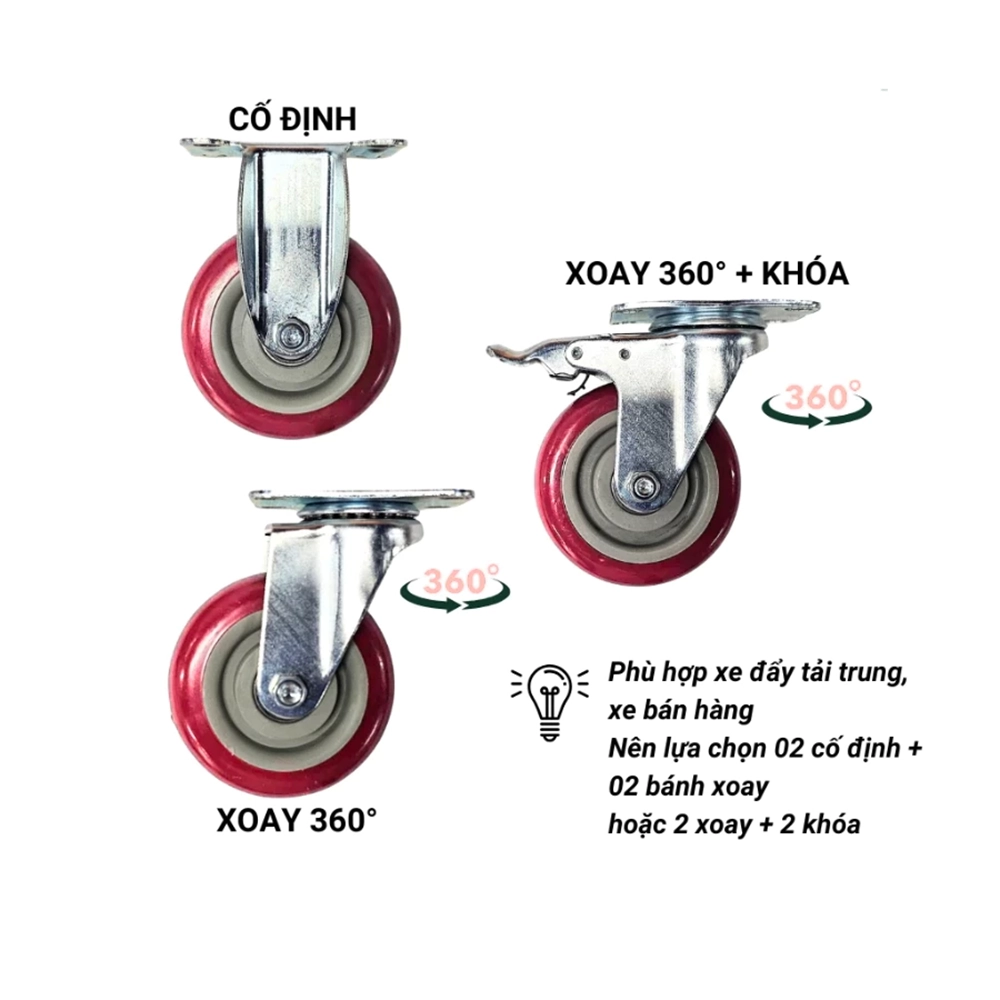

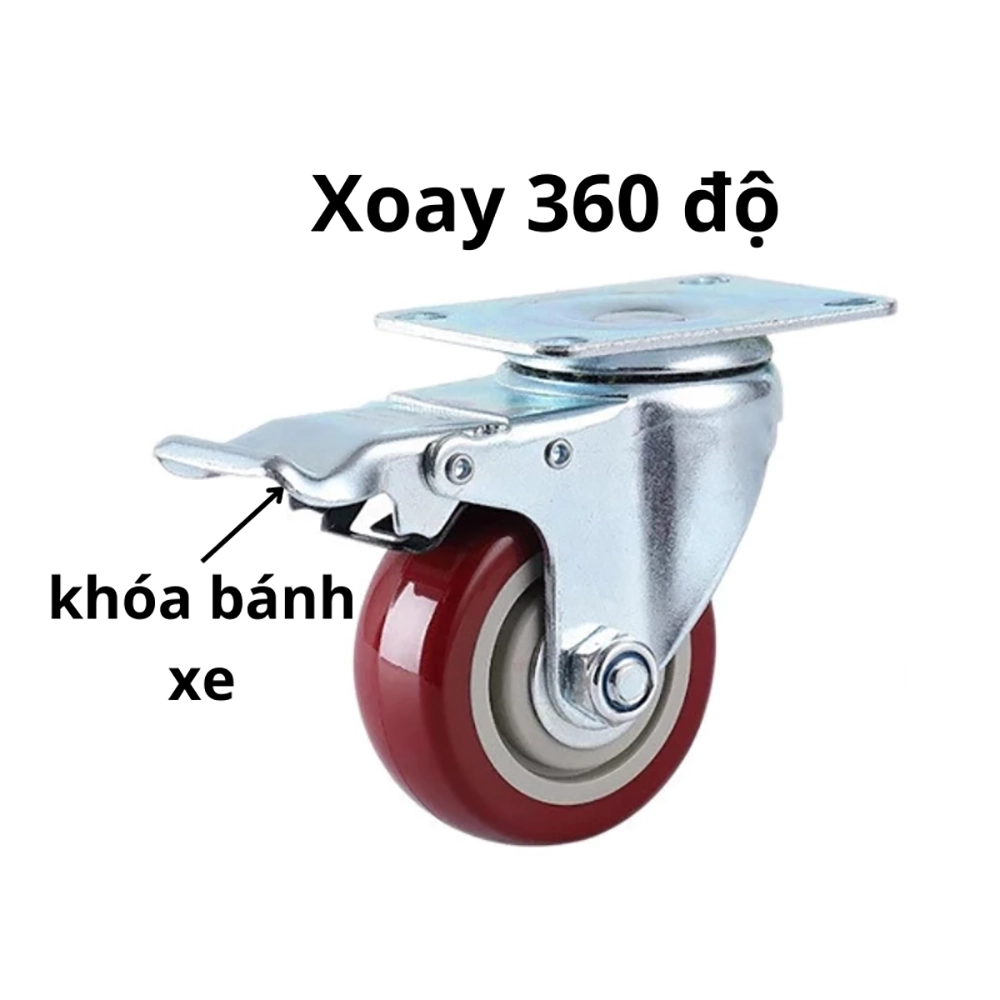

The caster is available in swivel and swivel-with-brake versions to meet different application requirements.
With a maximum load capacity of 105 kg per wheel, it is suitable for a wide range of industrial and commercial applications.

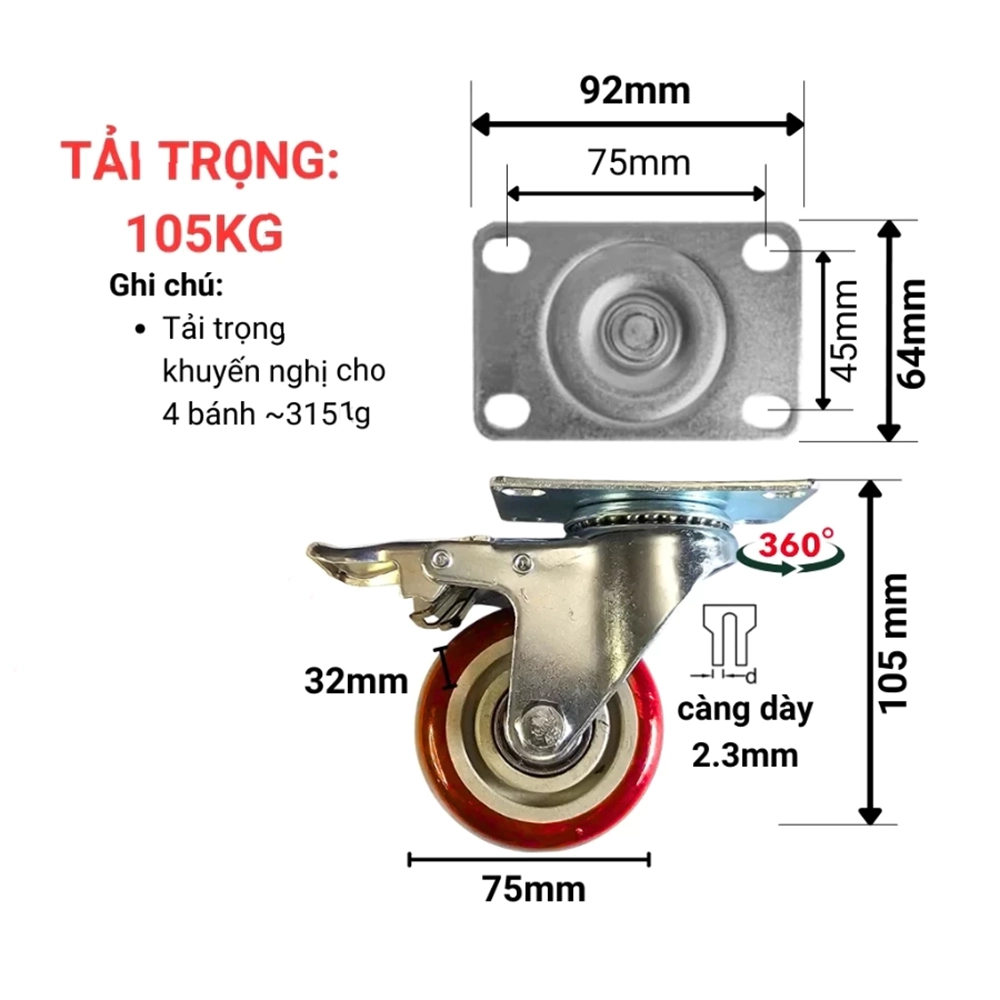

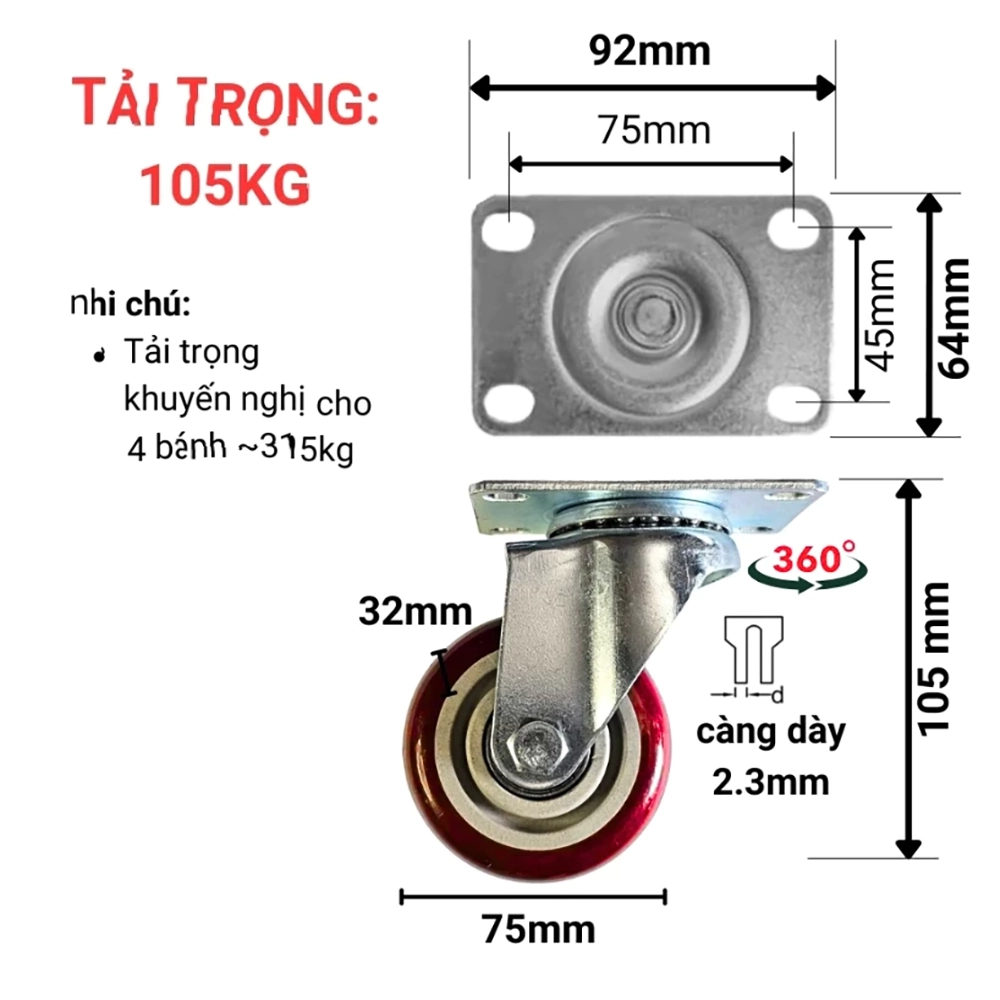

2. Specifications
Model: KT75X
Brand: Kingtech
Origin: Vietnam
Wheel Diameter: 75 mm
Wheel Width: 32 mm
Overall Height: 105 mm
Top Plate Size: 92 × 64 mm
Bolt Hole Spacing: 75 × 45 mm
Bracket Thickness: 2.3 mm
Swivel Rotation: 360°
Maximum Load Capacity: 105 kg
Wheel Material: Heavy-duty PVC
Bearing Type: Ball Bearing
Available Versions: Swivel and Swivel with Brake
3. Applications
The KT75X caster is widely used on industrial carts, warehouse trolleys, tool carts, supermarket carts, workshop equipment, storage racks and material handling systems.
It is ideal for factories, warehouses, automotive workshops, logistics centers, hospitals, schools and commercial facilities.
The smooth swivel design improves mobility while reducing operator effort.
4. How to Use
Choose the swivel or swivel-with-brake version according to your application.
Secure the caster using appropriate mounting bolts.
Tighten all fasteners before operation.
Do not exceed the maximum load capacity of 105 kg per caster.
Inspect the bearings and brake mechanism regularly to ensure reliable performance.
5. FAQ
Question 1: What is the maximum load capacity?
Answer 1: The caster supports up to 105 kg.
Question 2: Is a brake version available?
Answer 2: Yes. Both swivel and swivel-with-brake models are available.
Question 3: Does it use ball bearings?
Answer 3: Yes. High-quality ball bearings provide smooth and quiet operation.
Question 4: What applications is it suitable for?
Answer 4: It is suitable for tool carts, warehouse trolleys, industrial carts and material handling equipment.
