Car Wheel Balancer Kawasami KW-650P

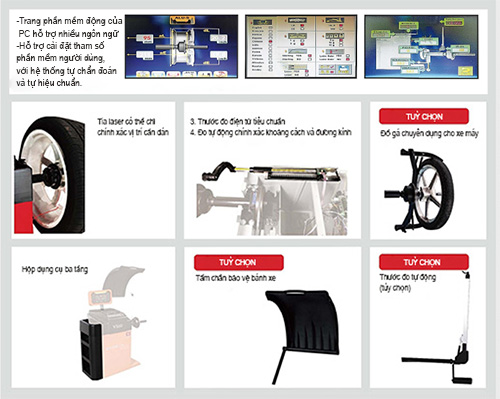

1. Key Features

• Suitable for professional auto repair centers and tire service shops.

• Dynamic/static balance modes and multiple ALU alloy wheel modes.

• Built-in self-diagnosis and self-calibration.

• Automatic measurement of wheel diameter (d) and distance (a).

• Automatic measurement of wheel width (b) (optional).

• ALU-S balance mode with electronic measuring arm for precise adhesive weight placement.

• Laser indicator for exact weight positioning.

• Split and hidden weight modes.

• Foot brake with LED illumination (optional electromagnetic brake).

• 19" LCD display with visual graphic interface and independent key control.

• CNC solid steel cabinet to reduce vibration and improve accuracy.

• Comes with standard cones and quick lock nut.

• Optional wheel guard and motorcycle fixture.

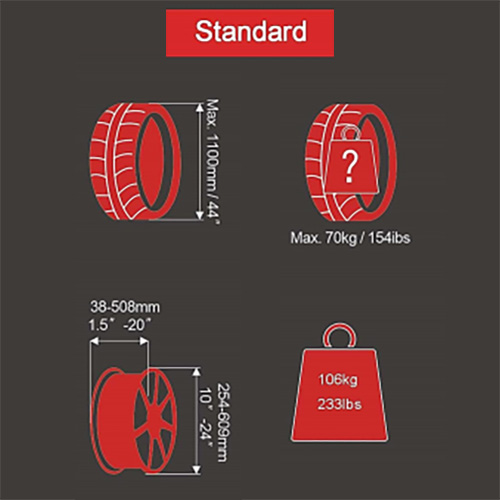

2. Technical Specifications

• Model: KW-650P

• Brand: Kawasami

• Origin: China

• Display: 19” LCD

• Balancing modes: Dynamic, Static, ALU, ALU-S

• Automatic measurement: Distance (a), Diameter (d), Width (b - optional)

• System: Self-diagnosis, Self-calibration

• Support: Laser, foot brake, LED light, independent control board

• Structure: CNC steel cabinet

• Color: PANTONG 186C / 2146C / 431C / Black C

3. Practical Applications

• Ideal for auto repair garages and professional tire service shops.

• Suitable for car wheels, light truck wheels, motorcycle wheels (optional).

• Ensures tire durability, driving safety, and reduced vibration.

• Perfect for medium to large-scale workshops.

4. How to Use KW-650P

1. Mount the wheel with standard cone and quick lock nut.

2. Close the protective cover (if equipped).

3. The machine automatically measures wheel parameters (a, d, b if available).

4. Select the balance mode (Dynamic, Static, ALU, ALU-S).

5. Follow the laser indicator to apply adhesive weights.

6. Use foot brake or optional electromagnetic brake to lock position.

7. Recheck the balance result and finish.
