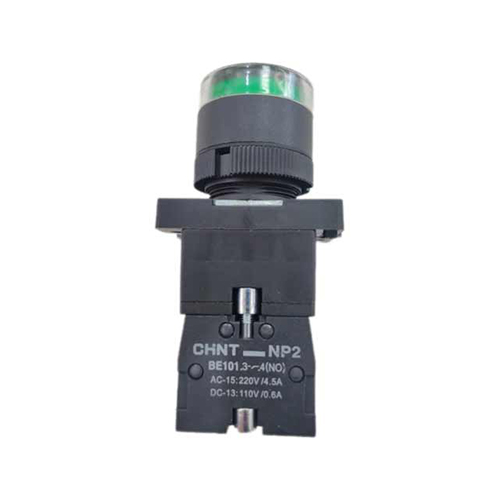

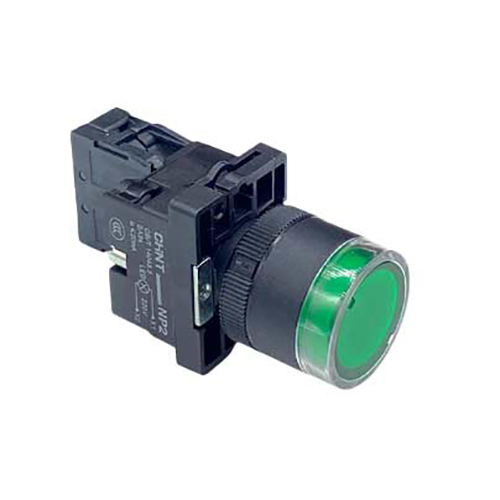

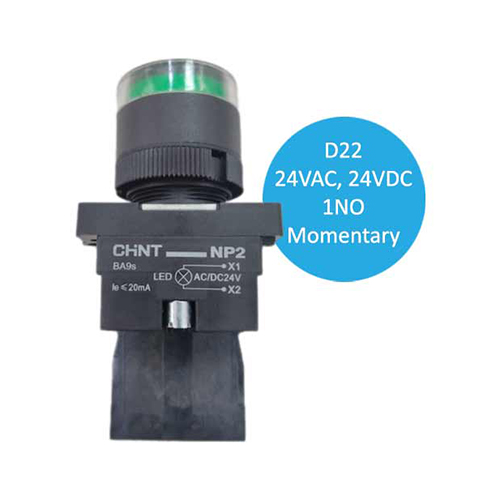

Chint NP2-EW3361 Green Light Push Button

1. Key Features

• Push button with integrated green LED indicator.

• Momentary type (push-release) for easy operation.

• Compact design, quick installation with Ø22mm mounting hole.

• Durable plastic housing with high insulation.

• Reliable performance in harsh conditions: -30°C ~ +70°C.

• IP40 protection, IEC and EN certified.

2. Technical Specifications

• Model: NP2-EW3361

• Type: Illuminated push button

• Power supply: 230VAC, 230VDC

• Contact: 1NO (Normally Open)

• Action type: Momentary push

• Color: Green

• Head size: Ø30mm

• Mounting hole: Ø22.3mm

• Light type: Green LED

• Contact rating: 3A at 240VAC

• Function: Removable contact block

• Mounting method: Panel mounting (flush)

• Connection: Screw terminals

• Housing: Plastic, black bezel

• Overall size: 30mm × 42mm

• Mechanical life: ≥80,000 operations

• Operating temperature: -30°C ~ +70°C

• Standard: IEC, EN

3. Applications

• Used in control panels and industrial cabinets.

• Start/stop button and operation status indicator.

• Suitable for automation and production line systems.

• Commonly applied in machinery and industrial electrical control.

4. How to Use

• Drill Ø22.3mm mounting hole on the control panel.

• Connect wires to screw terminals as per circuit diagram.

• Supply 230VAC/230VDC for LED indicator.

• Press the button to control the device and check LED status.
