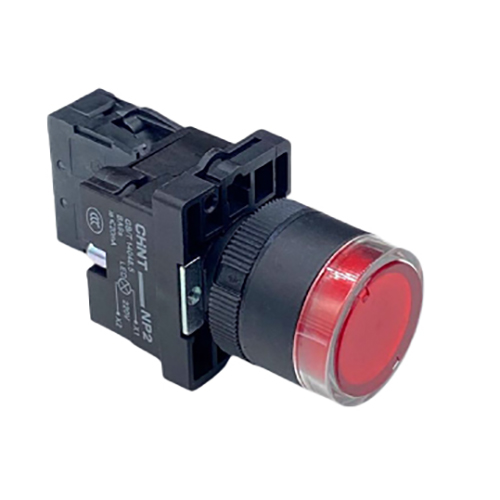

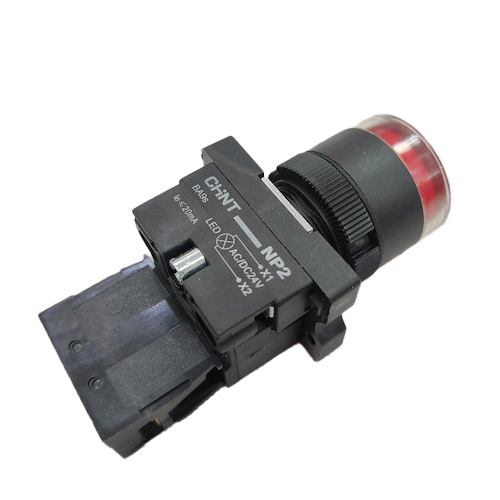

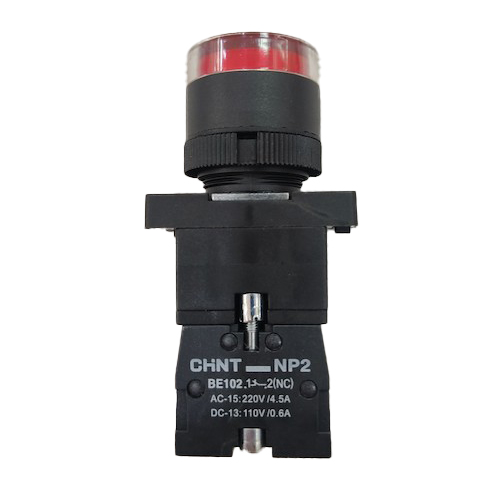

CHINT NP2-EW3462 Red Light Push Button

1. Key Features

• Push button with LED indicator for clear status visibility.

• Momentary (Push-Release) design, round flush full-guard type.

• High-quality plastic body and bezel for durability.

• Replaceable contact block (NP2-BE101, NP2-BE102) for easy maintenance.

• Operates in harsh environments, temperature range -30...70°C.

• Protection rating IP40, compliant with IEC, EN standards.

2. Technical Specifications

• Rated voltage: 230VAC, 230VDC

• Mounting hole size: Φ22.3mm

• Head size: Φ30mm

• Type: Illuminated push button LED

• Contact configuration: 1NC, momentary

• Button color: Red

• Bezel color: Black

• Lamp type: LED

• Contact capacity: 3A at 240VAC

• Structure: Removable contact block

• Mounting: Panel mounting (flush)

• Operating temperature: -30...70°C

• Overall size: 80mm (H) x 30mm (W) x 42mm (D)

• Protection class: IP40

3. Applications

• Installed in control panels for start/stop control.

• Widely used in industrial automation and machinery.

• Functions as an emergency stop button with LED indicator.

• Suitable for industrial equipment and electrical systems.

4. How to Use

• Drill a Φ22.3mm hole on the control panel.

• Insert the push button and secure with the bezel.

• Connect wires to NP2-BE101/BE102 contact block via screw terminals.

• Connect power supply to LED lamp indicator.

• Test button operation and LED before putting into service.
