1. Key Features

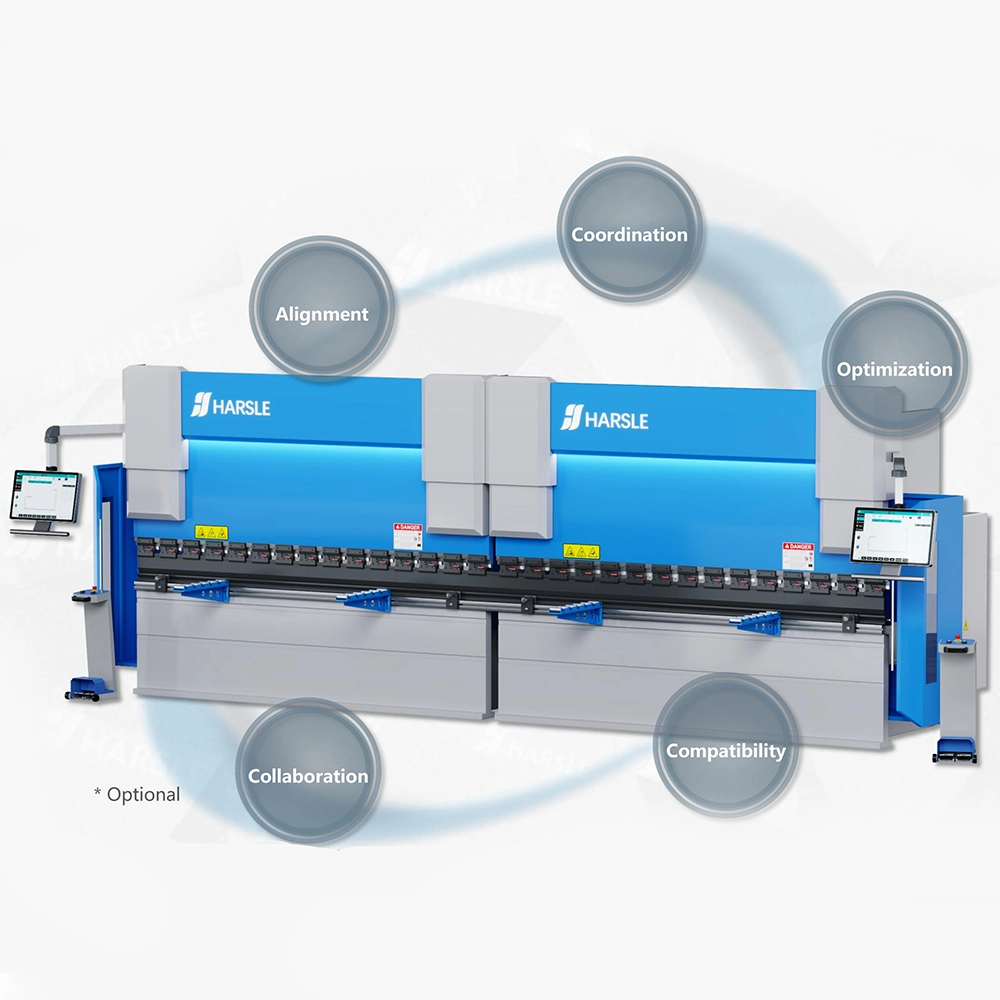

The Harsle EcoBend 40060 CNC hydraulic press brake is a high capacity metal bending machine designed for processing long sheet metal with high precision and stable performance. The machine provides a bending force of 400 tons and a bending length of 6000 mm, making it suitable for sheet metal fabrication plants, steel structure factories, electrical cabinet production and mechanical engineering industries.



The machine is equipped with the EASYCAT ET-18 CNC control system with a 21.5 inch touchscreen, supporting digital and 2D programming. The CNC axis system Y1 + Y2 + X + R ensures precise control of the hydraulic cylinders and backgauge positioning for accurate bending operations.



The machine frame is made of high strength welded steel and manufactured using automatic welding robots. After welding, the frame undergoes heat treatment for stress relief and is then precisely machined by CNC machining centers. This process increases rigidity, reduces deformation and ensures long service life.



The machine is also equipped with a CNC crowning system which automatically compensates for deflection between the table and ram, ensuring consistent bending angles along the entire length of the workpiece and improving product accuracy.



2. Technical Specifications

Model: EcoBend 40060

Manufacturer: HARSLE

Origin: China

Press Force: 4000 kN

Bending Length: 6000 mm

Distance Between Columns: 5000 mm

Throat Depth: 500 mm

Ram Stroke: 320 mm

Daylight Opening: 600 mm

Table Width: 260 mm

Oil Tank Capacity: 950 L

Front Support Arms: 3 pcs

Main AC Motor Power: 30 kW

Hydraulic Pump Flow: 63 ml/rev

Hydraulic System Pressure: 28 MPa

Machine Dimensions

Machine Length: 6400 mm

Machine Width: 2200 mm

Machine Height: 3350 mm

Working Speed

Fast Approach Speed: 90 mm/s

Working Speed: 0 – 7 mm/s

Return Speed: 80 mm/s

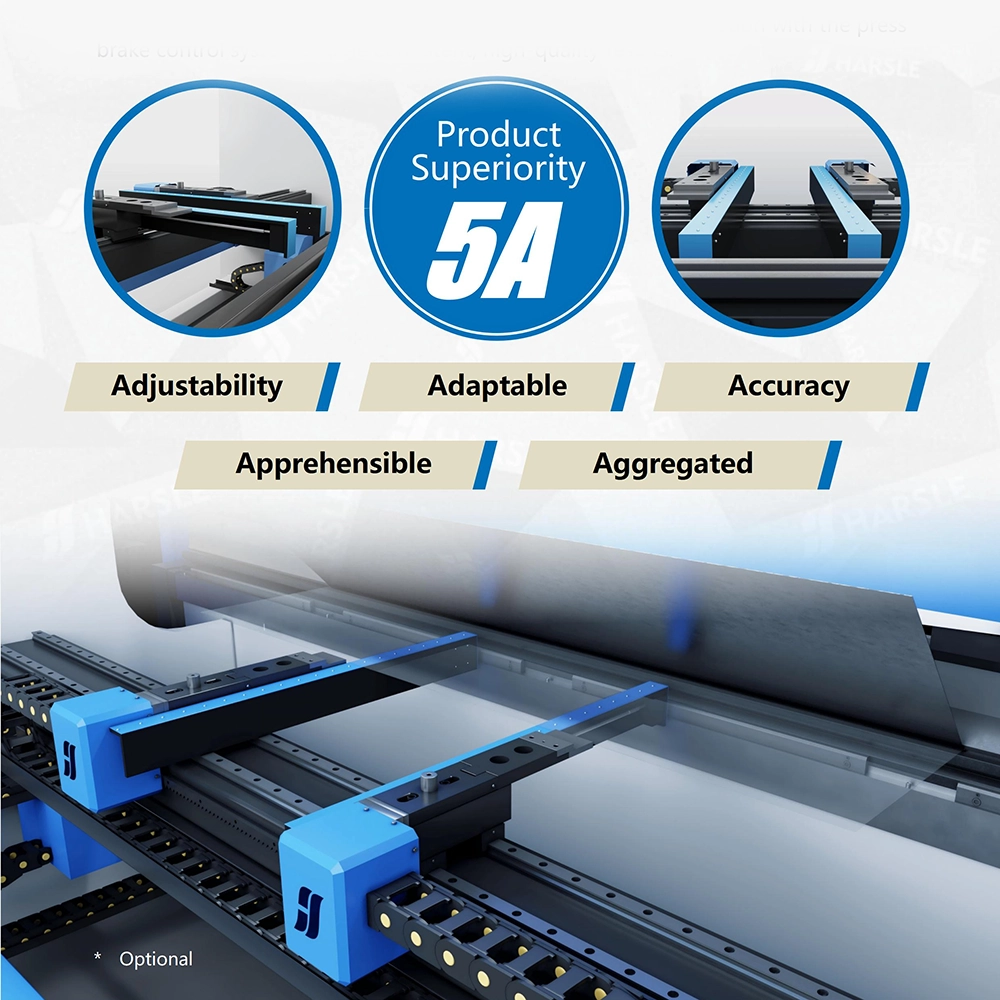

Backgauge System

X-axis Stroke: 750 mm

R-axis Stroke: 200 mm

Positioning Accuracy: 0.05 mm

Backgauge Fingers: 4 pcs

Standard Configuration

CNC Controller: EASYCAT ET-18

Main AC Motor: INNOMOTICS

Electrical Components: Schneider Electric

Hydraulic Valve: BFL

Hydraulic Pump: FIRST

Linear Encoder: GIVI

Foot Switch: KACON

Hydraulic Tube Connector: JS

Ball Screw / Linear Guide: HEQING

Backgauge Servo Motor: EASYCAT

Hydraulic Seal: NOK

Quick Clamp: HARSLE

Punch and Die: HARSLE

CNC Control System

Controller Model: ET-18

Display: 21.5 inch

Resolution: 1920 × 1080 px

Backgauge Control Axis: X + R

Programming: Digital + 2D

Program Storage Capacity: Unlimited

Tool Library: Unlimited

Offline Software: HOS-E18

Controller Functions

Electronic handwheel control

Workpiece quantity counting

Bending angle programming

PDF drawing input

Step-by-step or full program replacement

Remote update and fault diagnosis

CNC Axis System

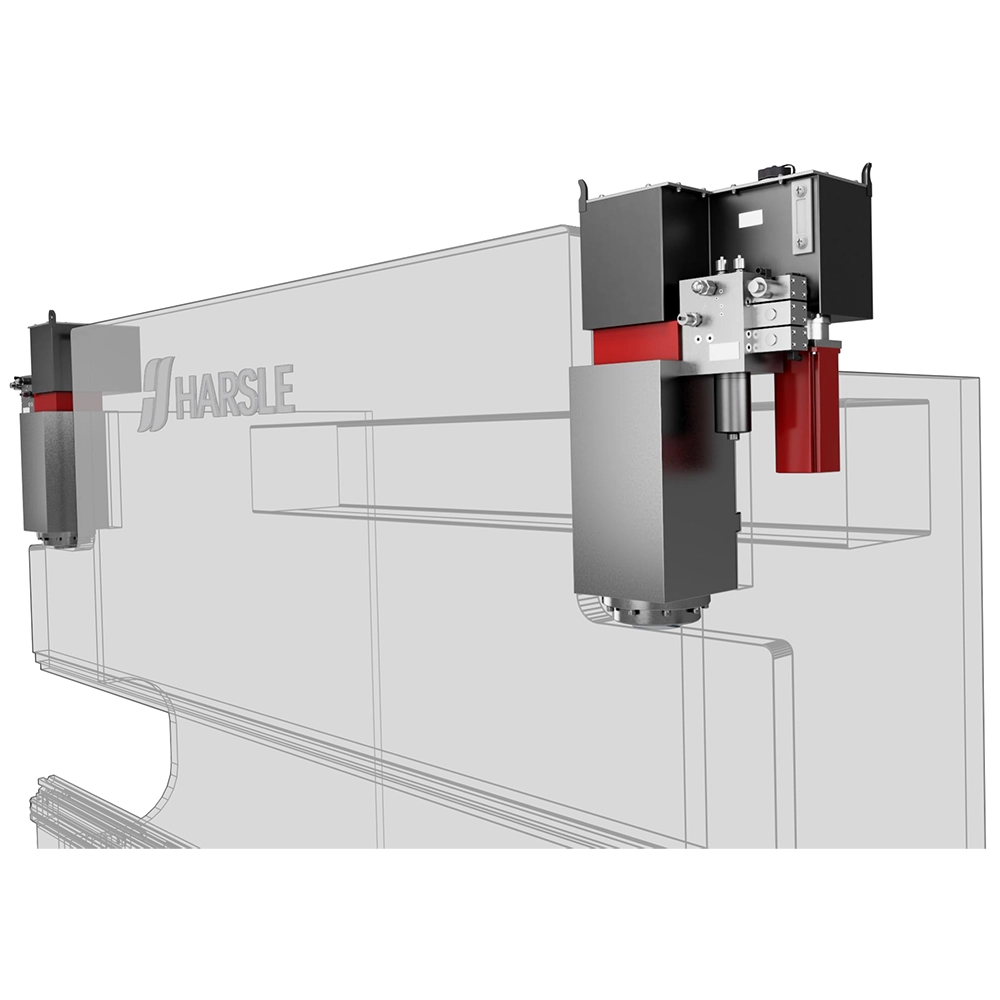

Y1: Left hydraulic cylinder control axis

Y2: Right hydraulic cylinder control axis

X: Backgauge forward / backward movement

R: Backgauge up / down movement

Machine Structural Features

Heavy-duty welded steel frame construction

Automatic robotic welding process

High-temperature stress relief treatment

Reduced deformation and improved structural stability

Ensures long service life of the machine

Machining Process

Machine frame processed by CNC machining centers

Capable of machining large-size components

Integrated CNC technology for high-precision machining

Finishing machining processes applied

CNC Crowning System

The CNC crowning system automatically calculates the compensation value for deformation between the machine table and the ram.

Benefits:

Ensures uniform bending angle across the entire workpiece length

Improves bending accuracy and straightness

Reduces scrap rate

Increases production efficiency

Standard Punch and Die

The machine is supplied with one standard set of punch and die, including:

Standard straight punch

Multi-V die

Front Support Arms

Front support arms help position and support the workpiece, providing:

Increased stability during bending

Reduced deviation caused by deformation or material movement

Safety System

Rear safety light curtain

Electrical cabinet door safety switch

Hydraulic system pressure monitoring valve

Safety PLC monitoring machine operation



3. Practical Applications

The Harsle EcoBend 40060 CNC press brake is widely used in sheet metal fabrication and mechanical manufacturing industries. It is suitable for metal workshops, steel structure factories, electrical cabinet production, industrial equipment manufacturing and machine enclosure fabrication.



With its large bending capacity and high precision, the machine increases production efficiency and ensures consistent product quality. It can process various materials such as carbon steel, stainless steel, aluminum and other metal alloys.



4. How to Use

Before operating the machine, check the power supply, hydraulic system and bending tools. The operator enters bending parameters on the ET-18 CNC controller and selects the appropriate program for the material and sheet thickness.



Place the metal sheet at the bending position and adjust it using the backgauge system. After confirming the correct position, start the bending process according to the programmed settings. During operation, safety procedures must be followed and the hydraulic system and tools should be inspected regularly.
