Heshbon HL-32D Above-Ground Wheelfree 3.3 Ton Scissor Lift

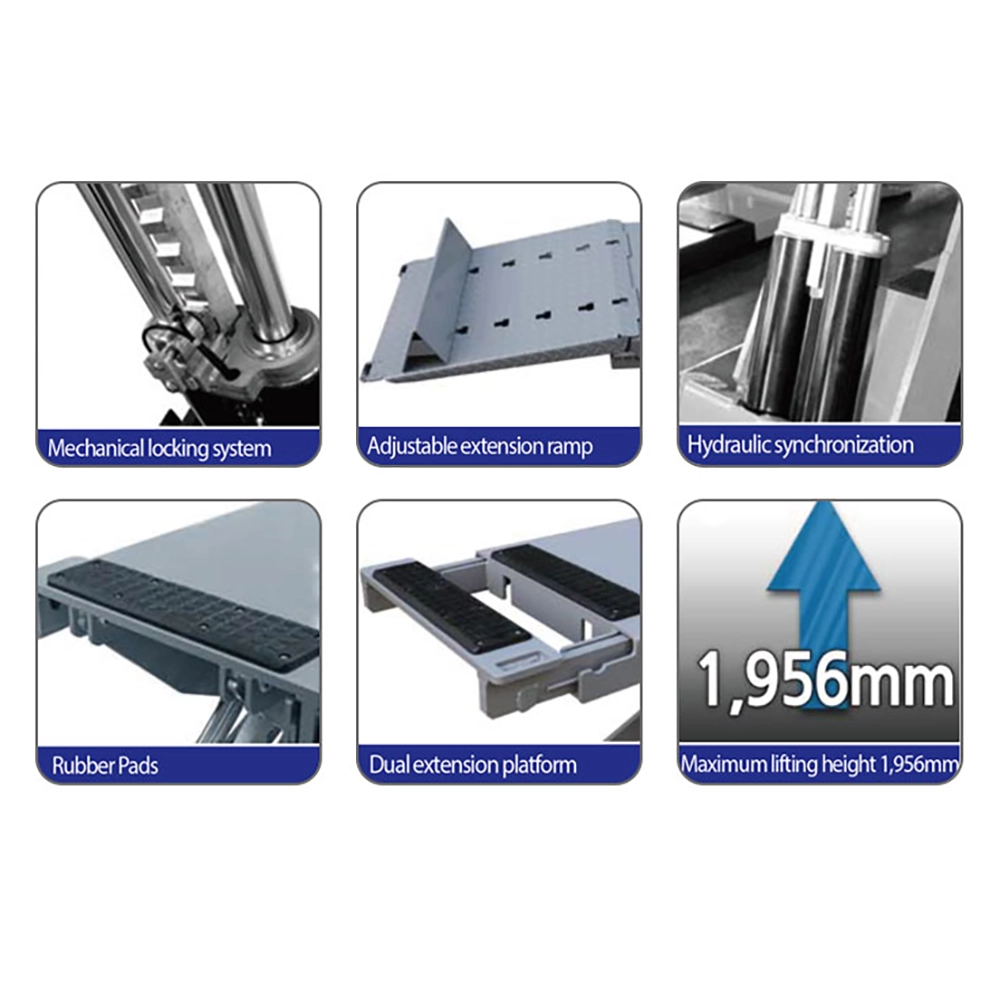

1. Outstanding Features
- Master & Slave cylinder system composed by high-Performed durable hydraulic cylinders.
- Easy synchronization control system by special hydraulic valves.
- Air cylinder operated locking device.
- Platforms slide extensions.
- Front detachable wheel stopper for drive through.
- Rubber pads on the platform to protect the vehicle chassis.
- Applicable to both in/above-ground mount.
- Descend alarm signal. (CE)
- De-synchronization detecting electronic photo-cell. (CE)
- Hydraulic hand-pump for emergency ascend/descend. (CE)
- Two step descending system gives full foot protection. (CE)
- Van Adaptor kit. (OPTION)
2. Specifications
Model No.: HL-32D (Above ground)
Brand: Heshbon
Made in Korea

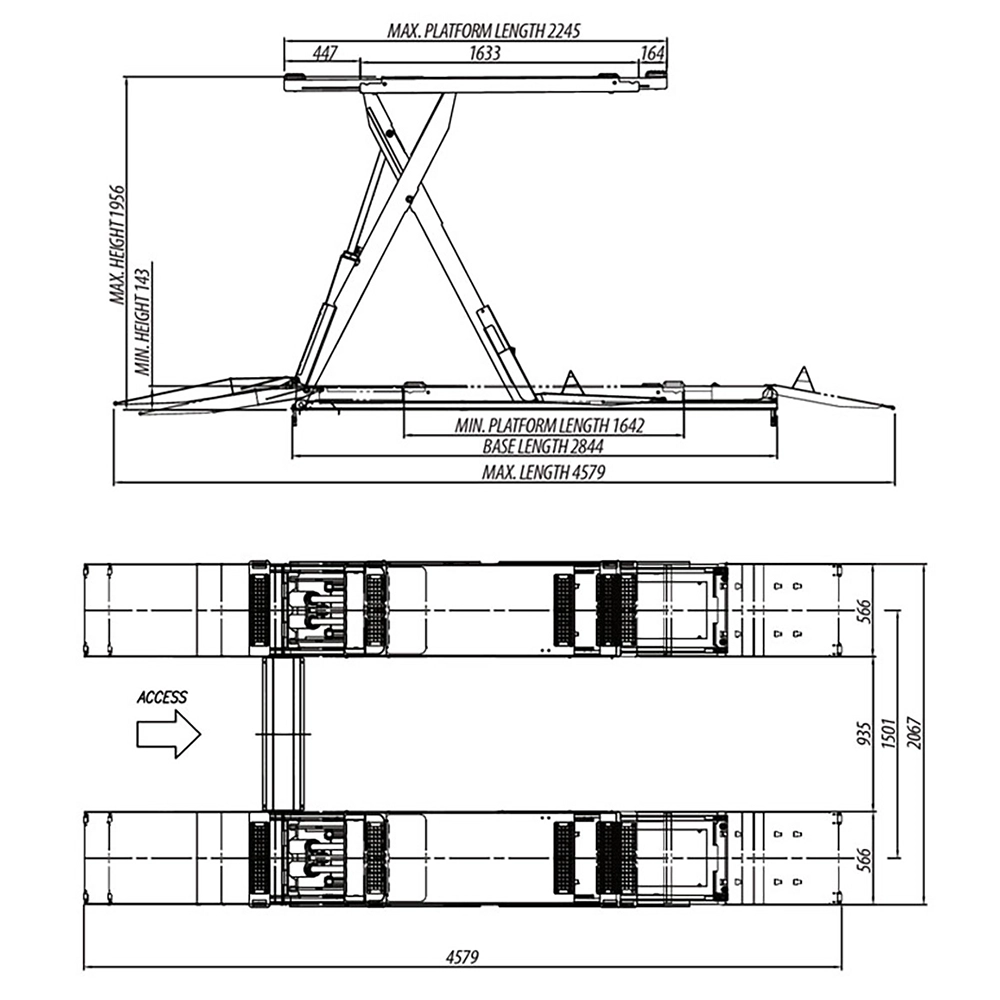

Dimension: 4,579(L) x 2,067(W)mm x 143(H)
Max. Lifting Height: 1,956 mm
Lifting Time: 55~65 sec.
Lowering Time: 50~65 sec./Min. Height: 143mm
Lifting Capacity: 3,300 kg
Power Supply & Motor:
1ph: 2.5HP, 4P, 220V, 50/60Hz
3ph: 2HP, 4P, 220/380V, 50/60Hz
Net Weight: 1,150 kg
Lifting time / lowering time: 55~65 sec. / 50~65 sec.
3. Practical Applications
Wheel alignment, undercarriage inspection, brake service, suspension repair, tire replacement and routine vehicle maintenance.
4. How to Use
Drive the vehicle onto the platforms, position correctly, raise the lift using the control unit, perform maintenance operations and safely lower the vehicle after work is completed.
5. Benefits
Improves workshop productivity.
Saves installation space.
Provides high operational safety.
Supports a wide range of vehicle types.
Enhances workshop professionalism.
6. Suitable Users
General automotive workshops, wheel alignment centers, vehicle maintenance facilities and authorized dealership service centers.
7. Real Case
An automotive service center installed HL-32D in its wheel alignment area and reduced alignment inspection time by approximately 25% while improving service accuracy.
8. FAQ
Question 1: Is HL-32D suitable for wheel alignment?
Answer 1: Yes, it is widely used for wheel alignment applications.
Question 2: Can it be installed above ground or in-ground?
Answer 2: Yes, it supports both installation methods.
Question 3: What is the lifting capacity?
Answer 3: The maximum lifting capacity is 3,300 kg.
Question 4: How does the safety lock operate?
Answer 4: It uses an automatic pneumatic locking mechanism.
Question 5: Can the lift be lowered during a power failure?
Answer 5: Yes, an emergency hydraulic hand pump is included.
Question 6: Is it suitable for SUVs?
Answer 6: Yes, it is suitable for sedans, SUVs and light commercial vehicles within the rated capacity.
9. Product Summary
The HL-32D is a premium Korean-made above-ground scissor lift designed for wheel alignment and underbody service operations.
10. Why Choose HL-32D
Korean manufacturing quality.
Reliable hydraulic synchronization system.
CE-compliant safety features.
Professional workshop performance.
Low maintenance requirements.
