Heshbon HL-32D Inground Wheelfree 3.3 Ton Scissor Lift

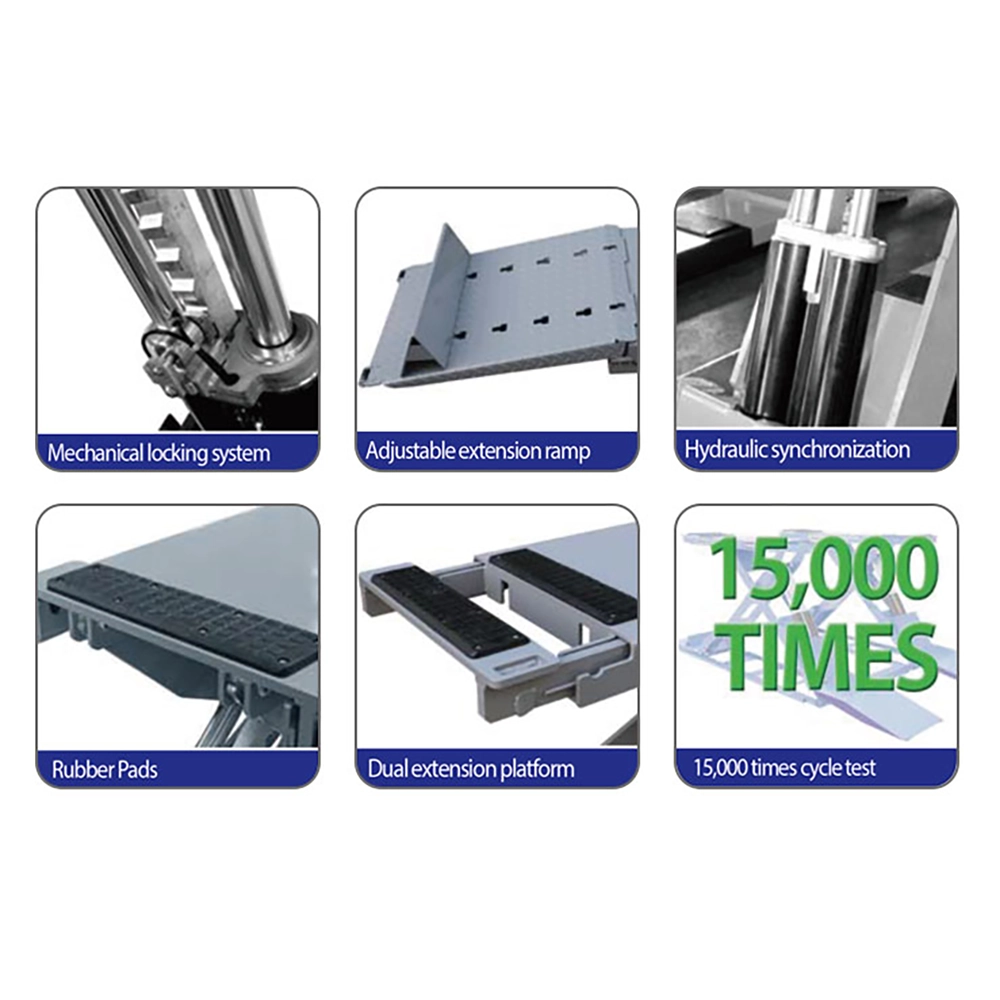

1. Key Features
Master & Slave cylinder system composed by high-Performed durable hydraulic cylinders.
Easy synchronization control system by special hydraulic valves.
Air cylinder operated locking device.
Platforms slide extensions.
Front detachable wheel stopper for drive through.
Rubber pads on the platform to protect the vehicle chassis.
Applicable to both in/above-ground mount.
Descend alarm signal. (CE)
De-synchronization detecting electronic photo-cell. (CE)
Hydraulic hand-pump for emergency ascend/descend. (CE)
Two step descending system gives full foot protection. (CE)
Van Adaptor kit. (OPTION)
2. Specifications
Model No.: HL-32D (In-Ground)
Brand: Heshbon
Made in Korea

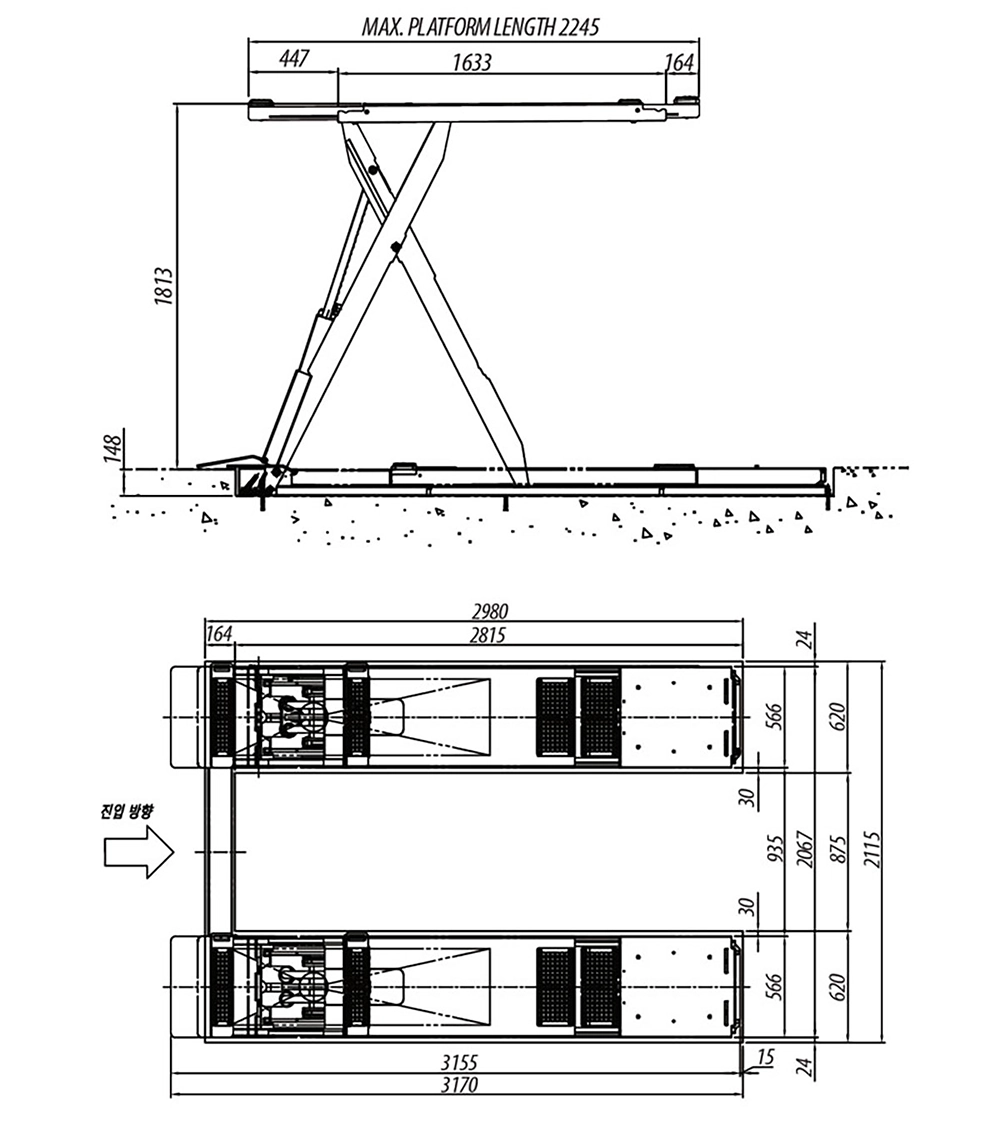

Dimension: 3,155(L) x 2,067(W)mm x 143(F.L-)(H)
Max. Lifting Height: 1,813 mm
Lifting Time: 55~65 sec.
Lowering Time: 50~65 sec.
Lifting Capacity: 3,300 kg
Power Supply & Motor:
1ph: 2.5HP, 4P, 220V, 50/60Hz
3ph: 2HP, 4P, 220/380V, 50/60Hz
Net Weight: 1,150 kg
Lifting time / lowering time: 55~65 sec. / 50~65 sec.
3. Practical Applications
Wheel alignment.
Suspension and steering repair.
Undercarriage inspection.
Brake and tire maintenance.
Routine vehicle servicing.
4. How to Use
Drive the vehicle onto the lift, position it correctly, raise the lift using the control panel, perform maintenance work and lower the lift safely after completion.
5. Benefits
Maximizes workshop space.
Improves workshop appearance.
Provides high operational safety.
Supports professional maintenance services.
Enhances technician productivity.
6. Suitable Users
Professional garages.
Wheel alignment centers.
Premium automotive service facilities.
Authorized dealership service centers.
7. Real Case
A premium automotive service center installed the HL-32D In-Ground model to create a cleaner workshop layout and improve overall service efficiency.
8. FAQ
Question 1: What is the difference between the in-ground and above-ground versions?
Answer 1: The in-ground version is installed below floor level, providing a cleaner and more spacious working area.
Question 2: Is it suitable for wheel alignment?
Answer 2: Yes, wheel alignment is one of its primary applications.
Question 3: What is the maximum lifting capacity?
Answer 3: The lift can handle up to 3,300 kg.
Question 4: Can it operate during a power outage?
Answer 4: Yes, it includes an emergency hydraulic hand pump.
Question 5: How does the safety locking system work?
Answer 5: The pneumatic safety lock engages automatically during lifting.
Question 6: What vehicles can it service?
Answer 6: Sedans, SUVs and light commercial vehicles within the rated capacity.
9. Product Summary
The HL-32D In-Ground Scissor Lift is an ideal solution for professional workshops seeking high performance, safety and a premium workspace appearance.
10. Why Choose HL-32D
Korean manufacturing quality.
Space-saving in-ground design.
Reliable hydraulic synchronization.
CE-certified safety features.
Professional workshop performance.
Long service life and low maintenance costs.
11. Related Products
Heshbon HL-32D Above Ground
Heshbon HL-40D
Heshbon HL-26EF
Heshbon HL-51G
Heshbon HL-52N
