Heshbon HL-32X Above-Ground Wheelfree 3.3 Ton Scissor Lift

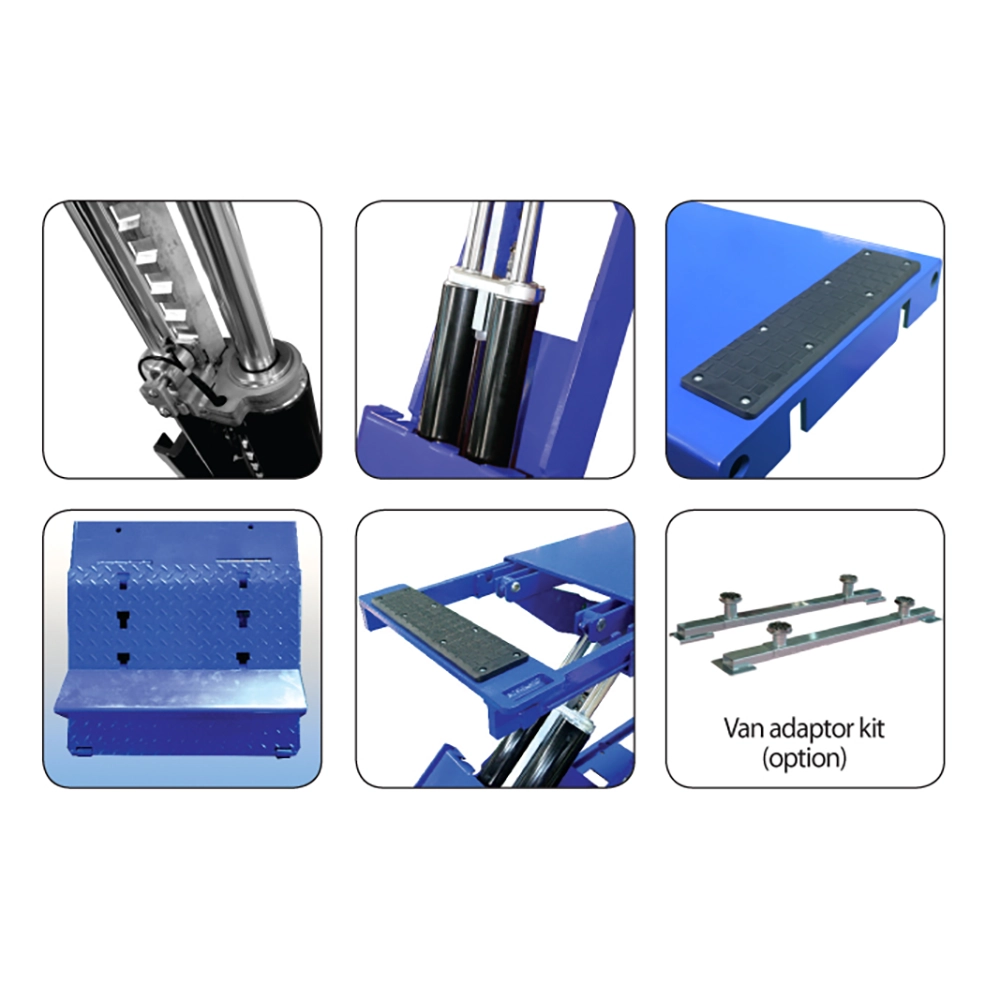

1. Key Features
- Master & Slave cylinder system composed by high-Performed durable hydraulic cylinders.
- Easy synchronization control system by special hydraulic valves.
- Air cylinder operated locking device.
- Platforms slide extensions.
- Front detachable wheel stopper for drive through.
- Rubber pads on the platform to protect the vehicle chassis.
- Applicable to both in/above-ground mount.
- Descend alarm signal. (CE)
- De-synchronization detecting electronic photo-cell. (CE)
- Hydraulic hand-pump for emergency ascend/descend. (CE)
- Two step descending system gives full foot protection. (CE)
- Van Adaptor kit. (OPTION)
- Pit frame for in-ground type. (OPTION)
2. Specifications
Model: HL-32X (Above ground)
Brand: Heshbon
Origin: Korea
Capacity: 3,300 kg (CE: 3,000 kg)
Lifting height: 140 ~ 1,953 mm
Dimensions: 4,254 x 2,065 x 140 mm
Power (1 phase): 2.5HP, 220V, 50/60Hz
Power (3 phase): 2HP, 220/380V, 50/60Hz
Weight: 1,050 kg
Lifting/lowering time: 55~65 sec / 50~65 sec
3. Applications
Used in automotive workshops and garages
Ideal for underbody inspection and maintenance
Suitable for passenger cars, SUVs and light trucks
Flexible installation above or in-ground
4. How to Use
Drive vehicle onto lift platform
Position rubber pads correctly
Operate lift via control panel
Perform maintenance work
Lower lift safely after use
5. FAQ
Question 1: Does HL-32X require pit installation
Answer 1: No, it supports above-ground installation
Question 2: Is it suitable for SUVs
Answer 2: Yes, supports up to 3.3 tons
Question 3: Is it safe to operate
Answer 3: Yes, equipped with CE safety features
Question 4: Does it have emergency function
Answer 4: Yes, manual hydraulic pump included

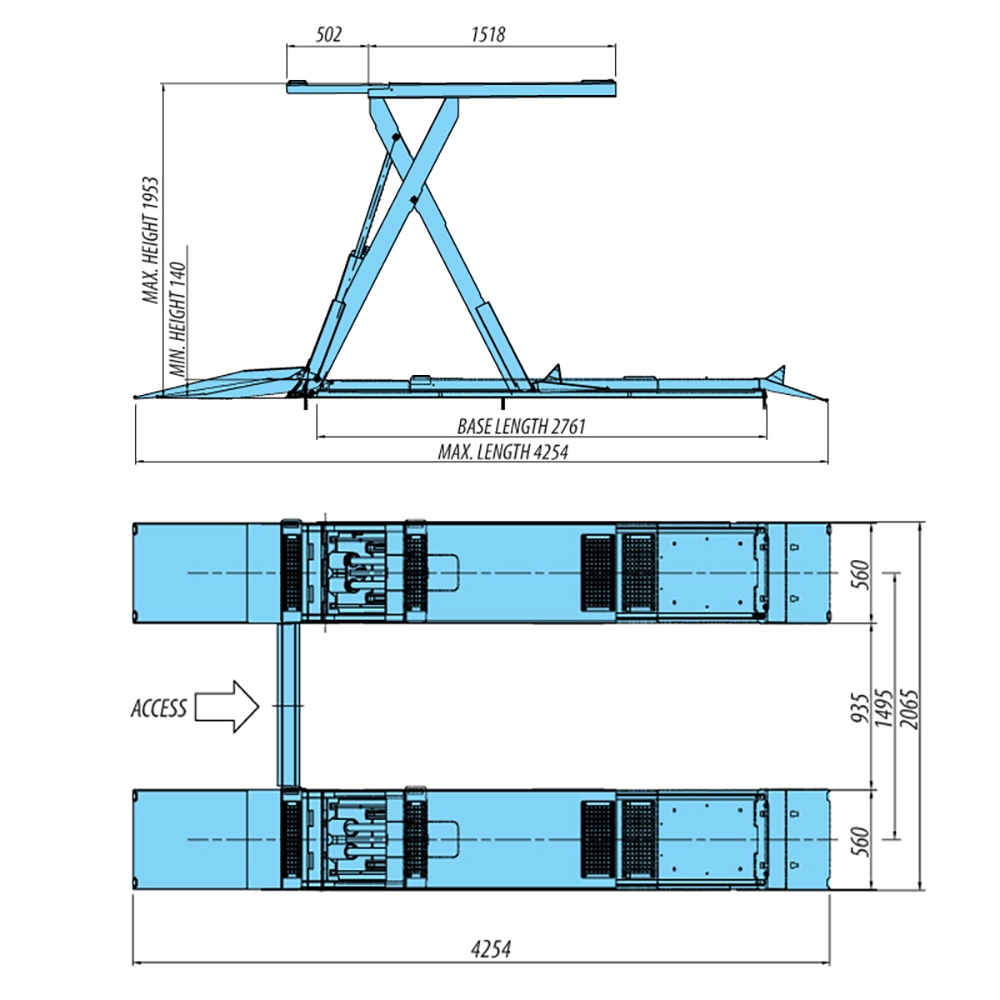

6. Lay-out
