Heshbon HL-32X Inground Wheelfree 3.3 Ton Scissor Lift

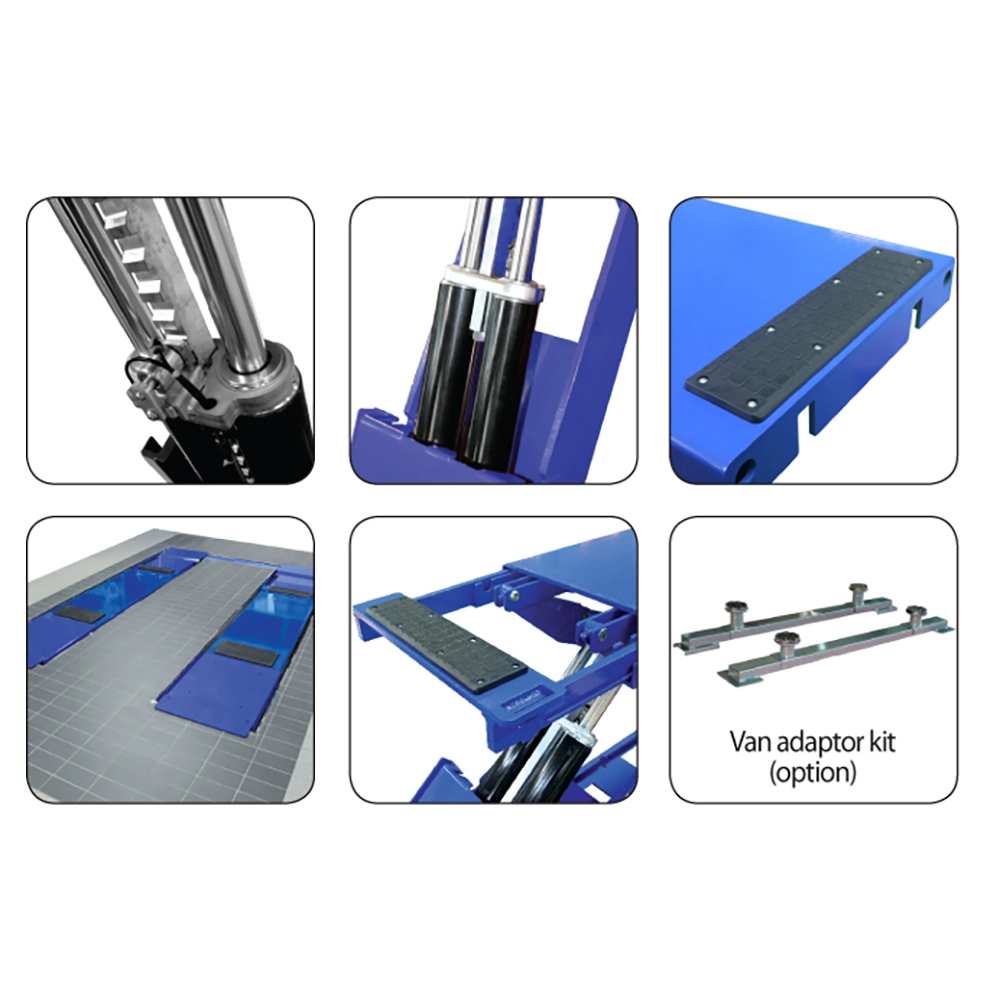

1. Key Features

- Master & Slave cylinder system composed by high-Performed durable hydraulic cylinders.
- Easy synchronization control system by special hydraulic valves.
- Air cylinder operated locking device.
- Platforms slide extensions.
- Rubber pads on the platform to protect the vehicle chassis.
- Applicable to both in/above-ground mount.
- Descend alarm signal. (CE)
- De-synchronization detecting electronic photo-cell. (CE)
- Hydraulic hand-pump for emergency ascend/descend. (CE)
- Two step descending system gives full foot protection. (CE)
- Van Adaptor kit. (OPTION)
- Pit frame for in-ground type. (OPTION)


2. Specifications

Model: HL-32X (In-ground)
Brand: Heshbon
Origin: Korea
Capacity: 3,300 kg (CE: 3,000 kg)
Lifting height: 1,820 mm
Dimensions: 3,155 x 2,055 x 140 mm
Power (1 phase): 2.5HP, 220V, 50/60Hz
Power (3 phase): 2HP, 220/380V, 50/60Hz
Weight: 1,050 kg
Lifting/lowering time: 55~65 sec / 50~65 sec


Cầu nâng cắt kéo 3.3 tấn Heshbon HL-32X lắp âm sàn


3. Applications

Used in professional automotive workshops
Ideal for underbody inspection and maintenance
Suitable for cars, SUVs and light trucks
Inground design maximizes workspace


4. How to Use

Position vehicle on lift platform
Adjust rubber pads correctly
Operate lift via control system
Perform service work
Lower safely after completion


5. FAQ

Question 1: What is the advantage of inground version
Answer 1: Saves space and improves workshop layout

Question 2: Difference from above-ground model
Answer 2: Mainly installation type, functions are similar

Question 3: Is it safe to use
Answer 3: Yes, complies with CE safety standards

Question 4: Does it require maintenance
Answer 4: Regular hydraulic and safety checks recommended

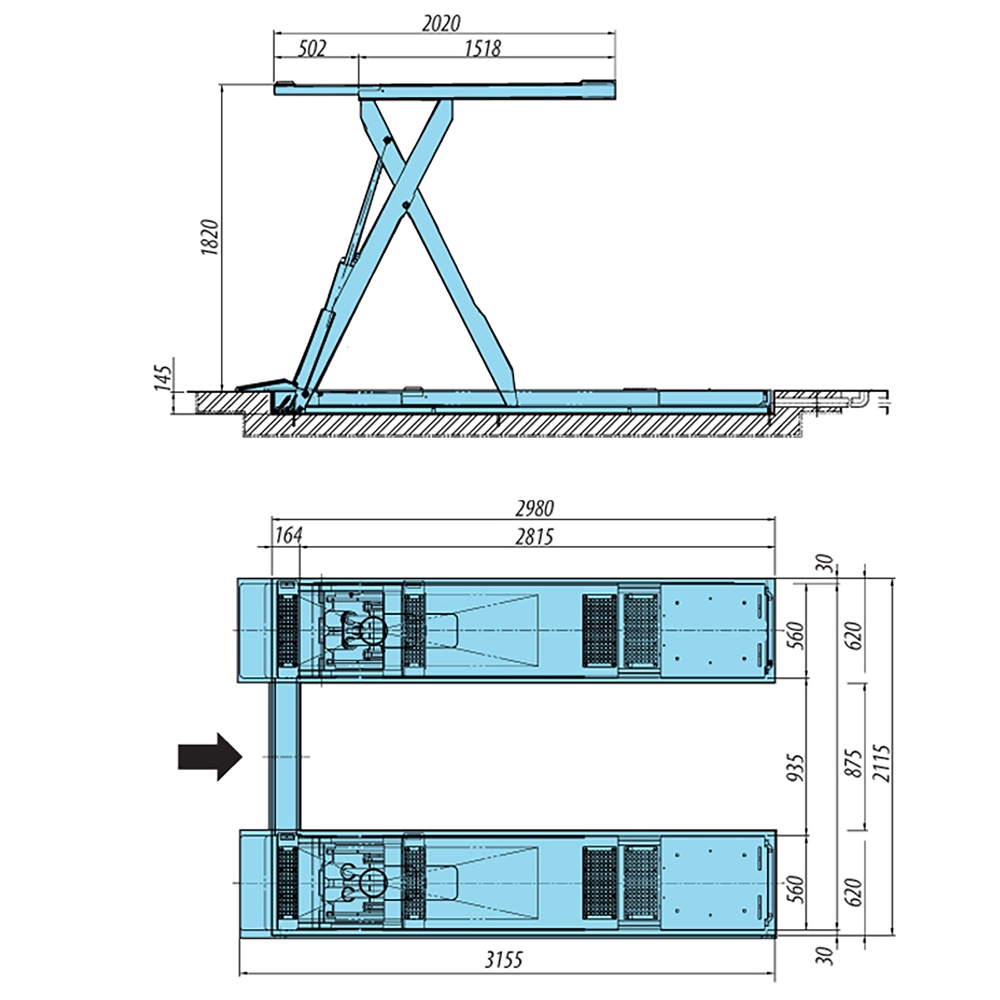

6. Lay-out
Thiết kế Cầu nâng cắt kéo 3.3 tấn Heshbon HL-32X lắp âm sàn




Heshbon Lift Pad Block – In Stock at Kingtech Warehouse

CỤC KÊ CẦU NÂNG  HESHBON

CỤC KÊ CẦU NÂNG  HESHBON

Control Circuit Board



BẢNG MẠCH ĐIỀU KHIỂN
