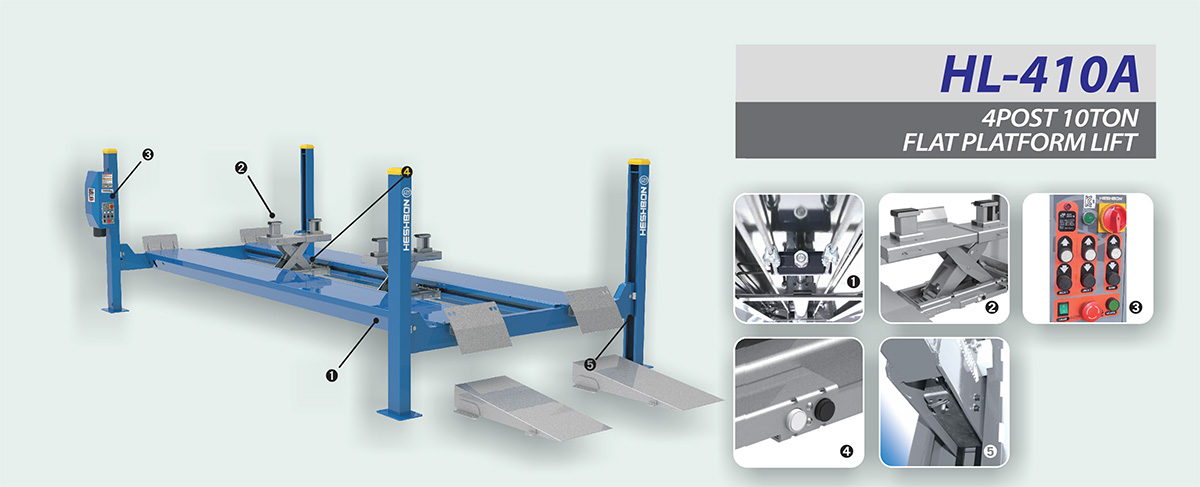

Heshbon HL-410A 4 post 10 ton flat platform lift Heavy Duty

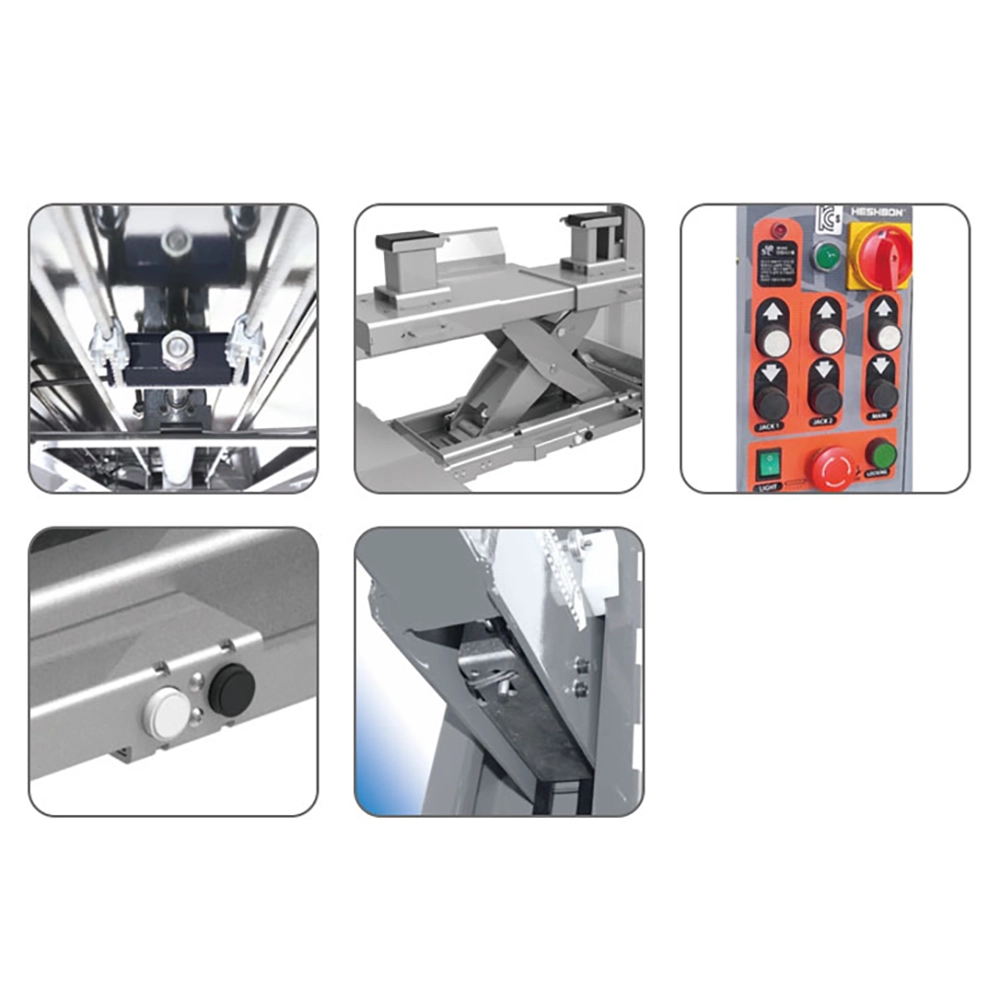

1. Outstanding Features
Cylinder & Power pack ability for max.10Ton Capacity.
Auto control for center rolling jack.
Hydraulic cylinder located in the fixed platform and it thus perfectly protected.
High resistance galvanized and pre-stretched lifting cable.
Lock realized lever for the emergency situation.
Adjustable parking ratchet rails ensure the platforms and cross members horizontal within 4 wheel alignment tolerances.
Automatic spring loaded eccentric brake system in the event of cable breakage and ensure complete.
Self-lubricated large diameter pulleys and maintenance-free bushes.
Automatic alarm function to let user know wire exchange cycle.
Hydraulic two-level 5ton scissor jack. (option)
Electric remote-controller. (option)
2. Specifications
Model No.: HL-410A
Brand: Heshbon
Made in Korea
Lifting Capacity (kg): Body: 10,000kgs / Jack: 5,000kg
Min/Max. Lifting Height (mm): Body: 1,900 mm / Jack: 795 mm

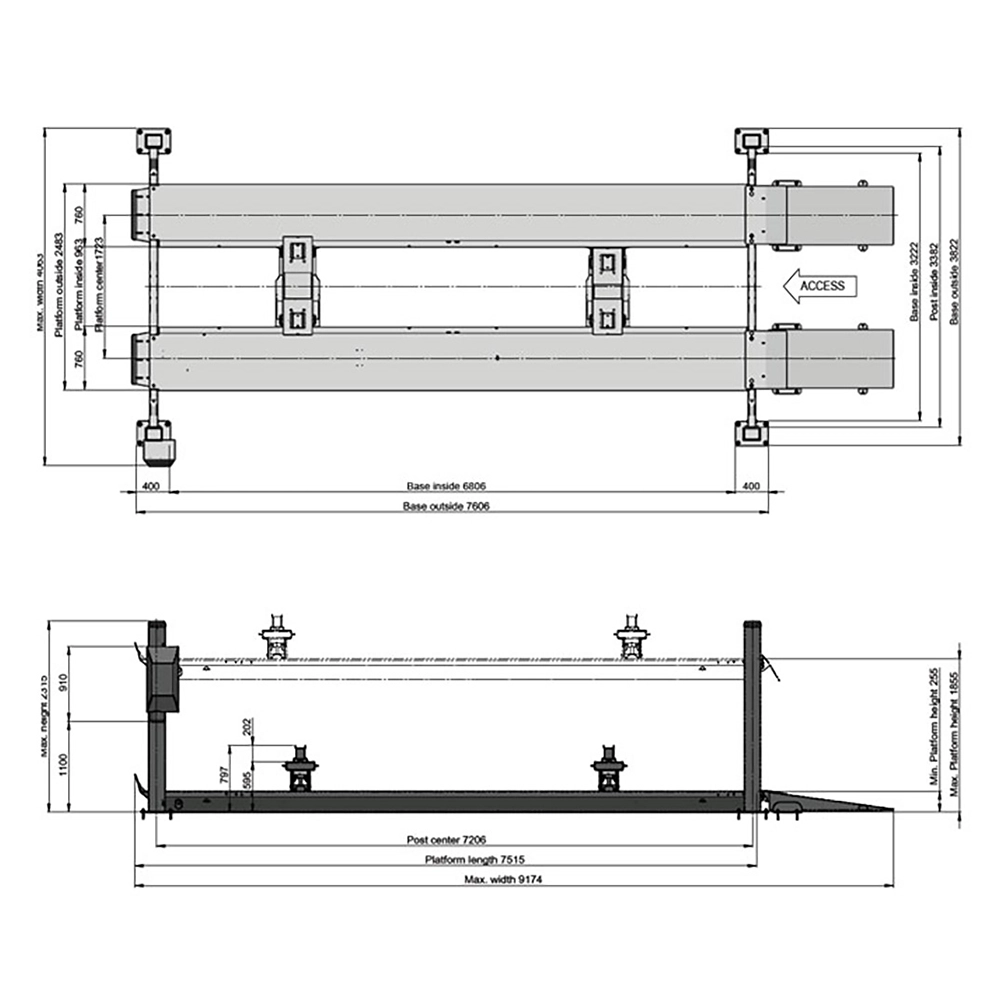

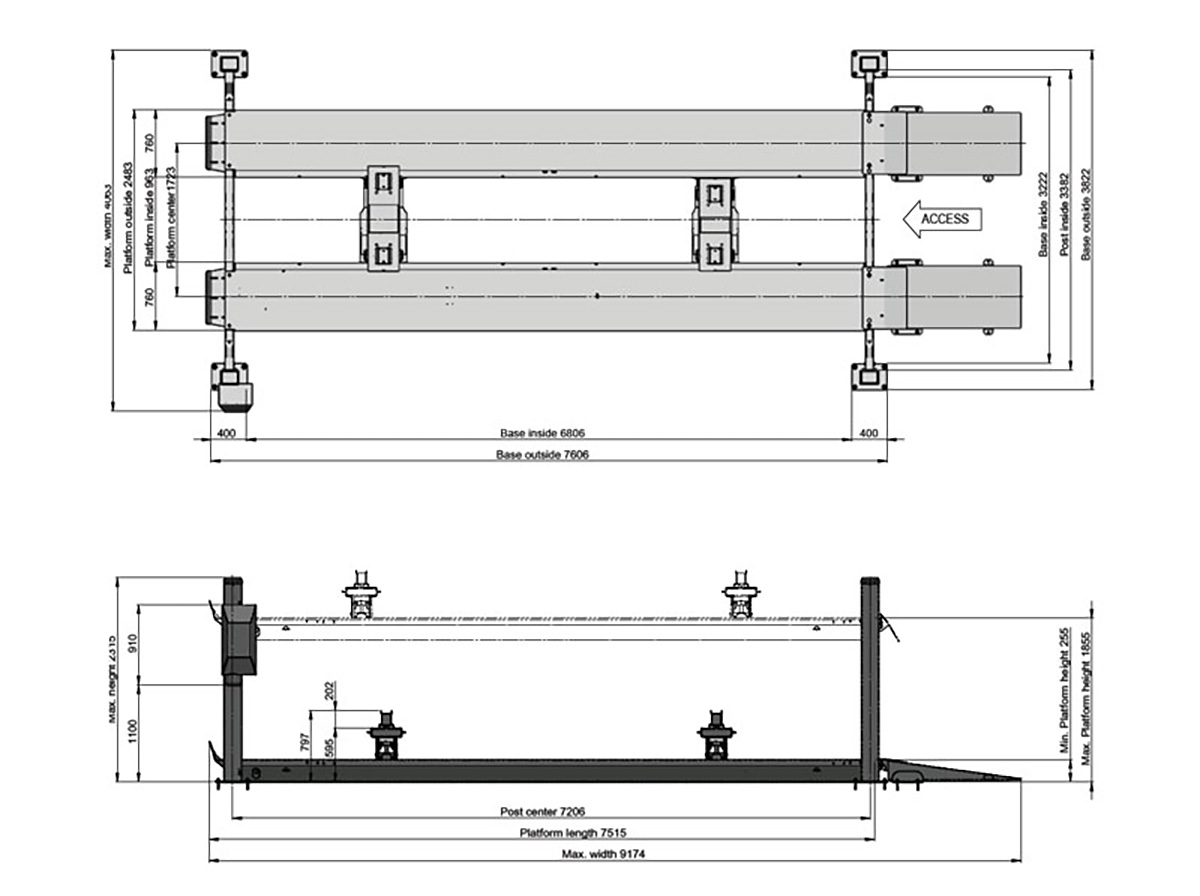

Dimension (mm): 9,174(L) x 4,074(W) x 2,311(H)
Power Supply & Motor: 3ph : 4HP, 220/380V, 50/60Hz
Net Weight: 3,800kg
Lifting time / Lowering time:
Body: 85~95 sec. / Jack: 10~20 sec.
Body: 50~65 sec. / Jack: 10~20 sec.
3. Practical Applications
Truck maintenance.
Bus servicing.
Commercial vehicle repair.
Underbody inspection.
Suspension and brake maintenance.
Fleet vehicle servicing.
4. How to Use
Position the vehicle correctly on the platforms and raise the lift to the required height. Use the optional hydraulic jack for wheel-free operations when needed. Lower the auxiliary jack before lowering the main lift.
5. Benefits
Handles vehicles up to 10 tons.
Excellent stability and safety.
Improves workshop productivity.
Reduces maintenance time.
Suitable for commercial fleets.
Long-lasting and reliable performance.
6. Suitable Users
Truck repair workshops.
Bus service centers.
Commercial vehicle maintenance facilities.
Fleet management companies.
Heavy-duty automotive service centers.
7. Real Case
A commercial vehicle maintenance center installed the HL-410A to service buses and heavy trucks, significantly improving workshop throughput and operational efficiency.
8. FAQ
Question 1: What is the lifting capacity of HL-410A?
Answer 1: The main lift capacity is 10,000 kg.
Question 2: Is it suitable for buses and trucks?
Answer 2: Yes, it is specifically designed for heavy commercial vehicles.
Question 3: What is the capacity of the optional jack?
Answer 3: The optional hydraulic scissor jack can lift up to 5,000 kg.
Question 4: What is the cable replacement reminder function?
Answer 4: It alerts operators when cable inspection or replacement is recommended.
Question 5: Does it include cable-break protection?
Answer 5: Yes, the automatic safety brake activates immediately if cable failure occurs.
Question 6: Who should use HL-410A?
Answer 6: It is ideal for truck workshops, bus maintenance centers and fleet service facilities.
9. Product Summary
The HL-410A is a premium Korean-made 10-ton 4-post lift offering superior strength, advanced safety features and reliable performance for heavy-duty vehicle maintenance.
10. Why Choose HL-410A
10-ton lifting capacity.
Heavy-duty commercial vehicle solution.
Automatic cable replacement reminder.
High-strength galvanized cables.
Automatic cable-break safety system.
Optional 5-ton hydraulic jack.
Reliable Korean engineering.
Long service life.
